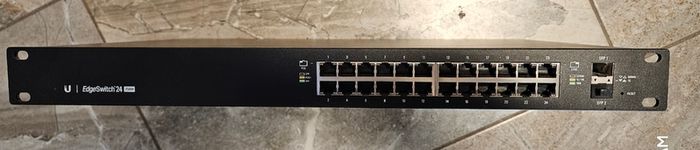

Ubiquiti EdgeSwitch 24 Port PoE+ ES-24-250W
Rare find: Ubiquiti EdgeMAX switch with 24 PoE+ ports that also support passive PoE.
Fully managed enterprise grade L2 and L3 switch.
Switching capacity 52 Gbps
Full specs: https://dl.ubnt.com/datasheets/edgemax/EdgeSwitch_DS.pdf

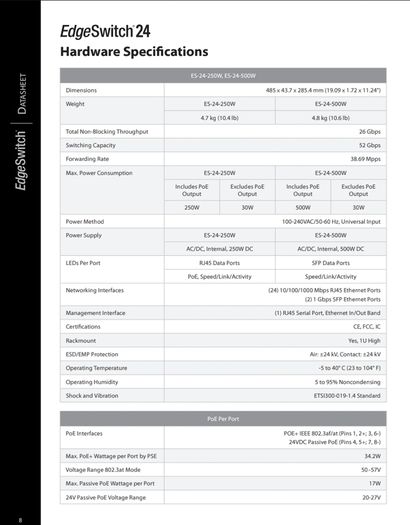

Hardware
Management interface (1) RJ45 serial port, Ethernet In/Out-Band

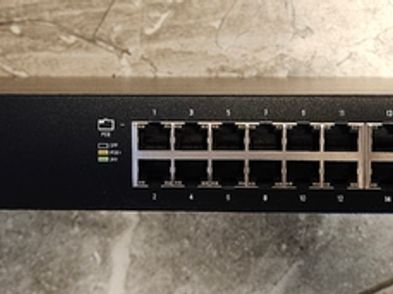

Networking interface (24) GbE RJ45 ports
(2) 1G SFP ports
PoE interface (24) PoE/PoE+ 2-pair (Pins 1, 2+; 3, 6-)
(24) 24V DC passive PoE 2-pair (Pins 4, 5+; 7, 8-)
Total non-blocking throughput 26 Gbps
Switching capacity 52 Gbps
Forwarding rate 38.69 Mpps

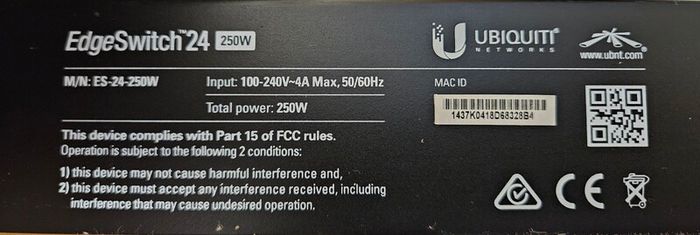

Power method 100-240V AC, universal input, 50/60 Hz
Power supply AC/DC, internal, 250W
Max. power consumption 30W (Excludes PoE output)
Total PoE available 250W
Max. PoE wattage per portby PSE PoE+: 34.2W
Passive PoE: 17W
Voltage range PoE mode PoE+: 50–57V
Passive PoE: 20–27V
ESD/EMP protection Air/contact: ±24 kV
LEDs Ethernet ports: PoE, speed/link/activity
SFP ports: speed/link/activity
Button Factory reset
Rackmount Yes, 1U
Shock and vibration ETSI300-019-1.4 Standard
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC, Anatel: 01245-15-08356
NDAA Compliant Yes
