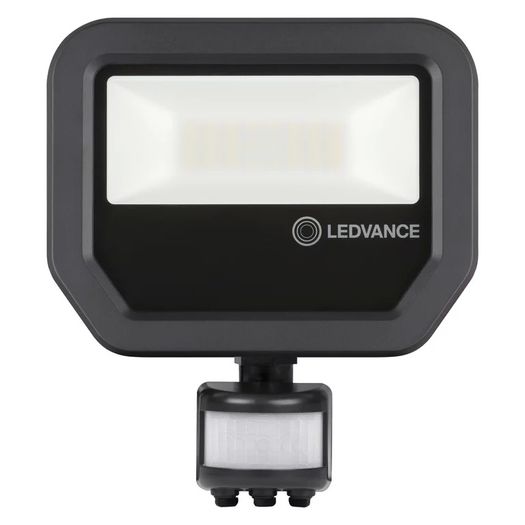

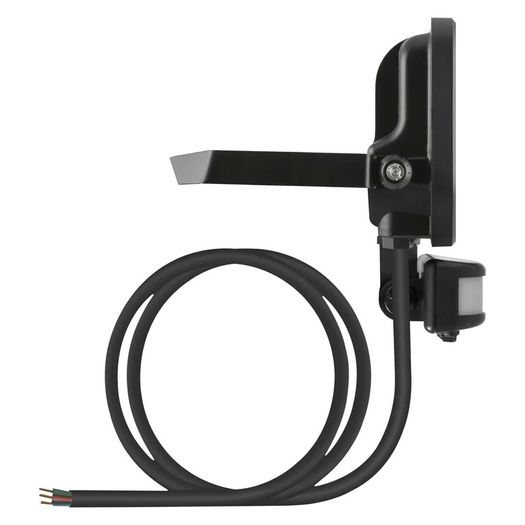

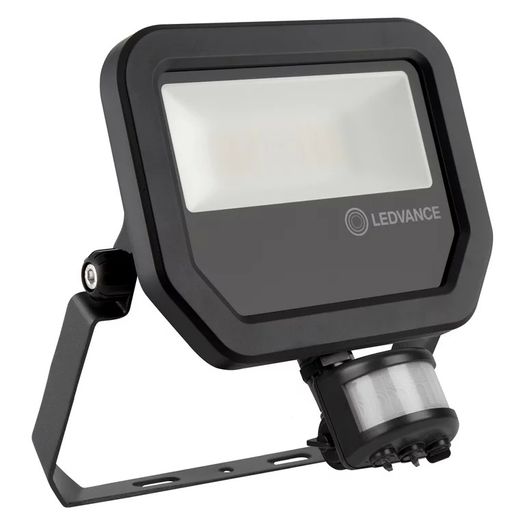

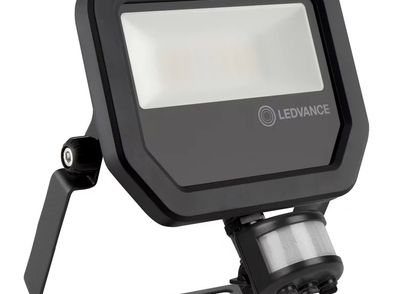

LED Floodlight 4000K with PIR

FL PFM 20 W 4000 K SYM 100 S BK
Product benefits
Bright, robust and durable
Demand optimized illumination due to flexible and programmable sensor
Easy adjustment of sensor range, daylight detection and hold time
Always-on override, activated via special mains switching pattern
Safe and very uniform illumination, due to frosted and tempered glass diffuser
Energy savings of up to 90 % compared to halogen lamp floodlights
5 years guarantee.

Nominal wattage 20.00 W
Nominal voltage 100…277 V
Mains frequency 50…60 Hz
Nominal current 102 mA
Inrush current 7.34 A
Inrush current time Th50 35.5 µs
Max. no. of lum. on circuit break. B16 A 86
Max. no. of lum. on circuit break. C16 A 99
Max. no. of lum. on circuit break. C10 A 62
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver
PHOTOMETRICAL DATA
Luminous flux 2400 lm
Luminous efficacy 120 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching ≤5 sdcm
Luminous intensity -
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 100 ° x 100 °
DIMENSIONS & WEIGHT
Length 176.00 mm
Height 55.00 mm
Width 156.00 mm
Product weight 570.00 g
Cable length 1000 mm
MATERIALS & COLORS
Product color Black
Housing color Black
Body material Aluminum
Light emitting surface material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
APPLICATION & MOUNTING
Ambient temperature range -30…+50 °C
Temperature range at storage -40…+70 °C
Type of connection Cable, 3-pole
Type of protection IP65
Protection class IK (shock resistance) IK07
Dimmable No
Mounting type Surface
Mounting location Wall, Ceiling
Application environment Outdoor
Adjustable Yes
LED module replaceable Not replaceable
With light source Yes
LIFESPAN
Lifespan L70/B50 at 25 °C 70000 h
Lifespan L80/B10 at 25 °C 55000 h
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 100000
CONTROL GEAR
Output current 230 mA
ECG - Output ripple current < 50 %
SENSOR
Type of sensor Motion, Light
Sensor technology Passive infrared/Photocell
Sensor detection angle 40 °…160 °
Sensor controlled switching time 10 s…12 min
Detection range of motion sensor 2…12 m
Detection threshold of daylight sensor 10…2000 lx
Sensor IP rating IP65
