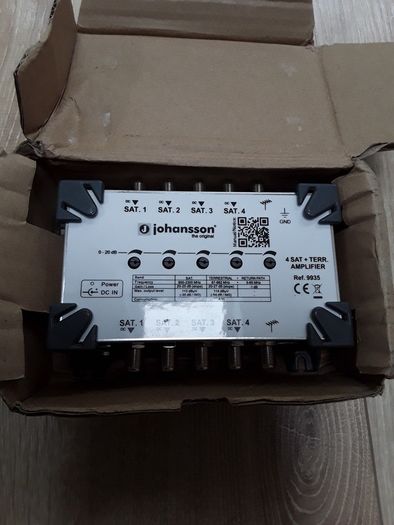

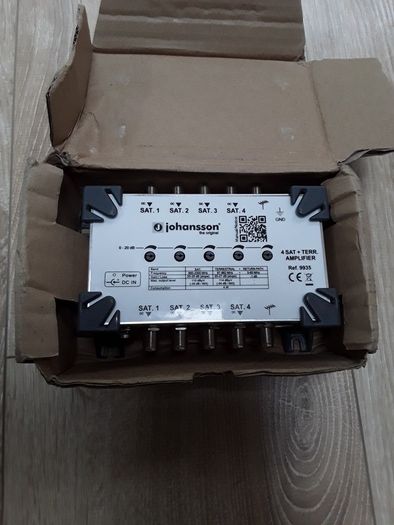

johansson amplifier 9935
Condition:
Brand new
9935
Inputs - 4 SAT + 1 TERR
Outputs - 5
Frequency range MHz SAT.: 950-2300 MHz
TERR.: 5-65MHz + 87-862MHz
Gain dB SAT.: 20-25dB (sloped)
TERR.: 87-862 MHz : 20-27dB (sloped)
return path: -1dB
Noise figure dB SAT.: 5 TERR.: 6
Gain adjustment dB SAT.: 20 TERR.: 20
Max. Output level dBµV SAT.: 110 dBµV* TERR.: RP : passive 87-862 MHz: 114 dBµV **
Consumption- 500 mA from 15 VDC external power supply or input / output
Dimensions mm 158 x 102 x 51
