Dell XPS 8700 Mid-Tower Case - Takes Any mATX Board + ATX PSU

Meet Rathmines / Terenure / Kenilworth / Rathgar

---------------------------

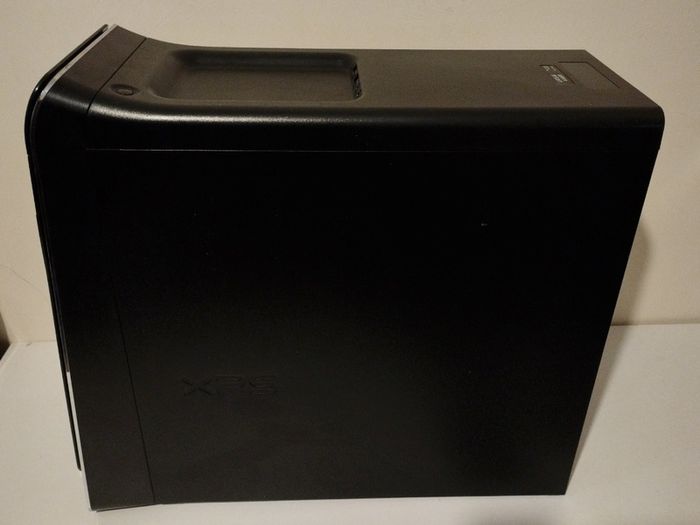

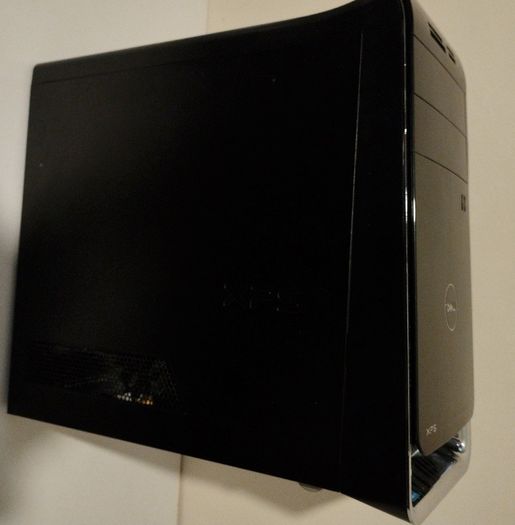

XPS 8700 CASE

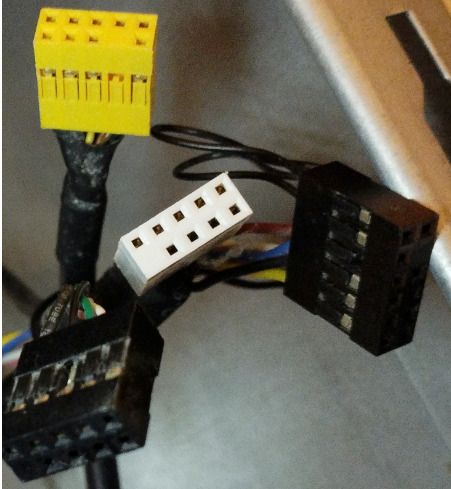

Front Panel Header:
The power switch, reset switch, and LED connectors use a standard 9-pin header layout compatible with most retail motherboards (Gigabyte, MSI, ASRock).
Exception: ASUS motherboards often use a proprietary pinout for their front panel headers, which may require an adapter or careful manual wiring.

USB 3.0:
The case has a front USB 3.0 cable with a standard 19-pin connector, which fits all modern mATX boards.

Audio:
The HD Audio connector is standard.

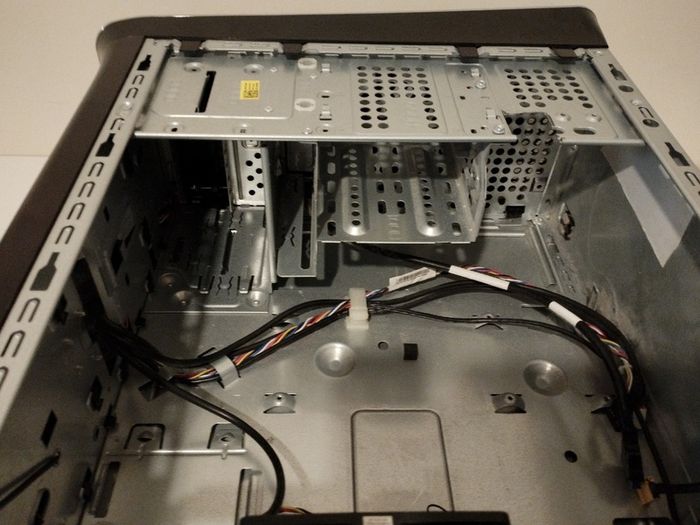

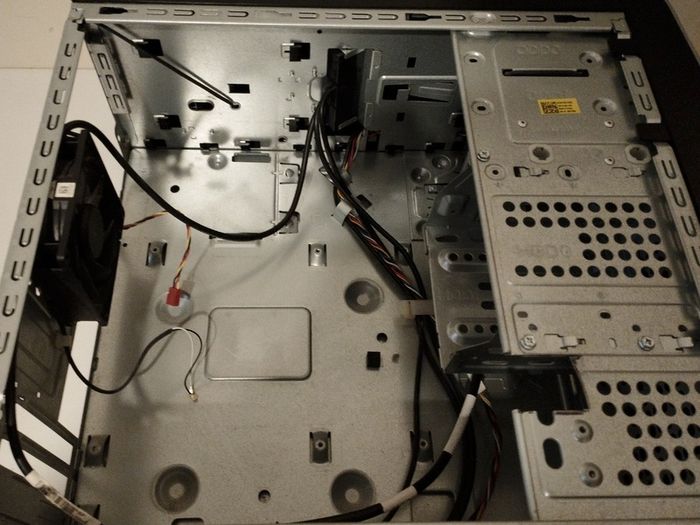

The chassis floor has standard mATX standoff holes

3 x 3.5" Internal Bays:
1 x 5.25" Internal Bays

2 x USB 3.0 Ports on the front
2 x USB 2.0 Ports on Top (One with with PowerShare)

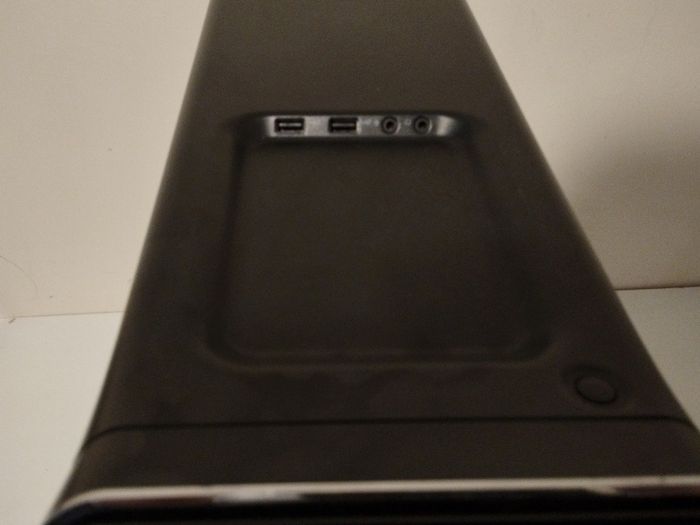

On Top:
1 x 3.5mm Headphone/Audio Out jack.
1 x 3.5mm Microphone In jack.

Height: 406.8 mm (16.0 inches)
Width: 185.3 mm (7.3 inches)
Depth: 444.3 mm (17.5 inches

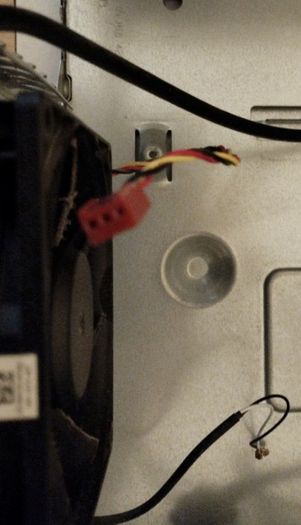

Rear: 1x 90mm exhaust fan (pre-installed).

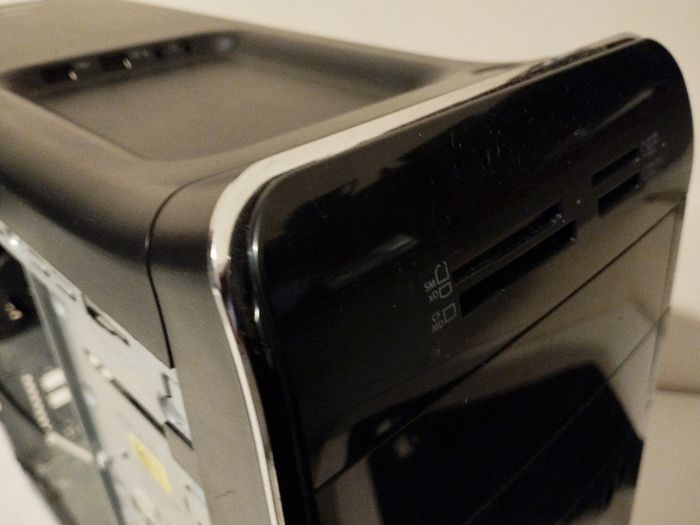

Card Reader:
CompactFlash: Type I, Type II, and Micro Drive (MD).
Secure Digital: SD, miniSD, SDHC (Class 2, 4, 6), and SDXC (Extended Capacity).
MultiMediaCard: MMC, MMCplus, RS-MMC, and MMCmobile.
Memory Stick: MS, MS Pro, MS Duo, MS Pro Duo, MS Pro-HG Duo, and MS XC.
Legacy Formats: SmartMedia and xD-Picture Card
