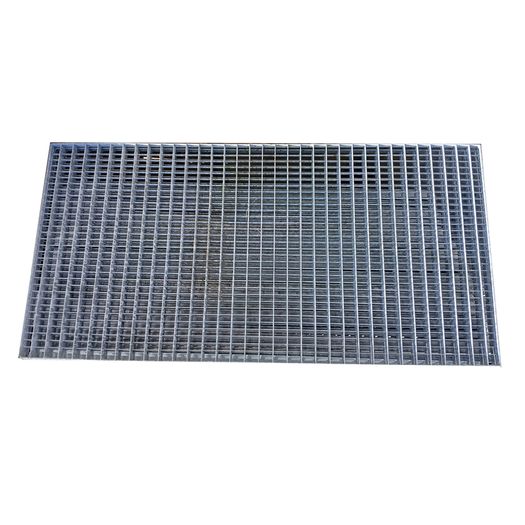

Galvanised Steel Walkway Flow Forge Grate Panels

Heavy Duty Galvanised Steel Walkway Flow Forge Grated Panels

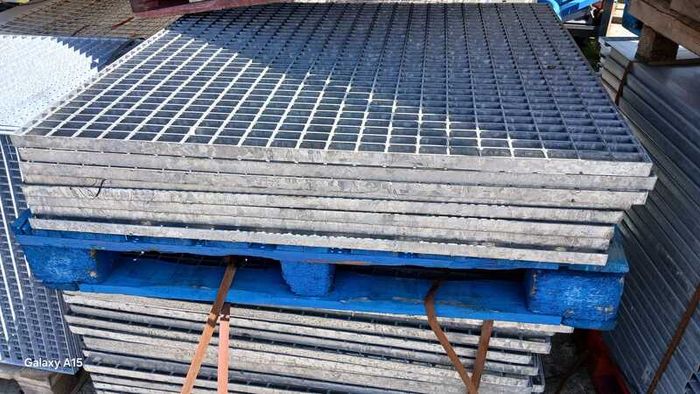

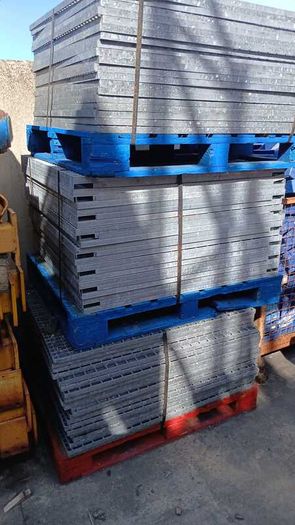

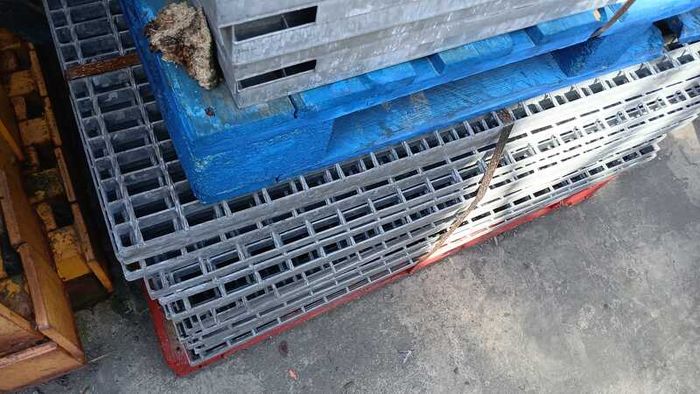

Varying sizes and quantities

DIMENSIONS

PANEL FF02
Length:1000mm
Width: 1100mm
Body Depth: 25mm
Legs: No
Full Depth with Legs: N/A
Holes: 45mm x 28mm

PANEL FF06
Length:1245mm
Width: 1270mm
Body Depth: 30mm
Legs: Yes
Full Depth with Legs: 60mm
Holes: 30mm x 30mm

PANEL FF10
Length:1000mm
Width: 1730mm
Body Depth: 25mm
Legs: No
Full Depth with Legs: N/A
Holes: 38mm x 96mm

PANEL FF12
Length:1000mm
Width: 1170mm
Body Depth: 30mm
Legs: Yes
Full Depth with Legs: 60mm
Holes: 30mm x 30mm

PANEL FF14
Length:1220mm
Width: 1690mm
Body Depth: 30mm
Legs: Yes
Full Depth with Legs: 50mm
Holes: 35mm x 95mm

PANEL FF15
Length:990mm
Width: 1210mm
Body Depth: 30mm
Legs: Yes
Full Depth with Legs: 50mm
Holes: 35mm x 95mm

PANEL FF16
Length:1210mm
Width: 1250mm
Body Depth: 30mm
Legs: Yes
Full Depth with Legs: 60mm
Holes: 25mm x 30mm

PANEL FF17
Length:1100mm
Width: 1250mm
Body Depth: 30mm
Legs: Yes
Full Depth with Legs: 60mm
Holes: 25mm x 30mm

PANEL FF18
Length:1000mm
Width: 1500mm
Body Depth: 35mm
Legs: No
Full Depth with Legs: N/A
Holes: 25mm x 40mm
