Vortice 11976 ARIETT T Centrifugal Extractor Fan with Timer

Vortice 11976 ARIETT T Centrifugal Extractor Fan with Timer (For use with 100 mm / 4 Inch duct)

Color White
Electric Fan Design Exhaust Fan
Power Source Corded Electric
Style Modern
Item Dimensions D x W x H 12.3D x 15.6W x 15.6H centimetres
Mains 230/240V AC 50Hz. 18 watts power consumption. See product description for important information on electrical connections requirements
Extraction rate 19.4 litres per second, 70 cubic metres per hour. Made in Italy
Sound output 40dB(A) @ 3m. IPX4 rated. Class II double insulated. Back draught shutter
Timer adjustable 3 to 20 minutes. Thermal protection. Suitable for wall or ceiling mounting. CE approved

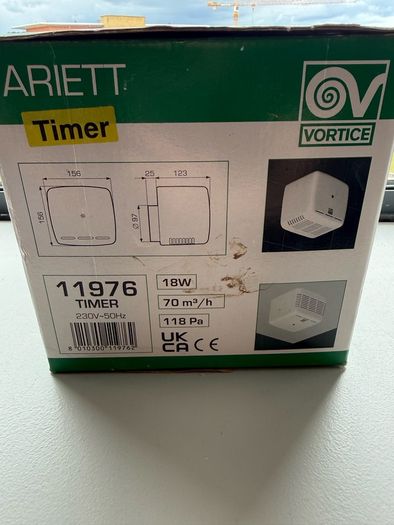

Dimensions: 156mm wide x 156mm wide x 123mm deep (beyond installed surface). 97mm diameter spigot extends for 25mm

Stylish 4” (100mm) centrifugal extractor fan. An quiet and efficient fan, providing excellent low energy and low noise performance. Ideal for modern bathrooms and toilets. Easy to install and suitable for wall mounting. This model is for operation with the room light switch. When the light is switched on the fan comes on, when the light is switched off the fan continues to run for a pre-set time. Requires permanent live, switched live and neutral (3 wires excluding earth) at the fan position in order to operate correctly. Please note that the timer function cannot be used unless you have these three wires to connect.
