Vertiv Geist vp52101 Switched PDU

https://media.distrelec.com/Web/Downloads/_t/ds/VP52101_eng_tds.pdf

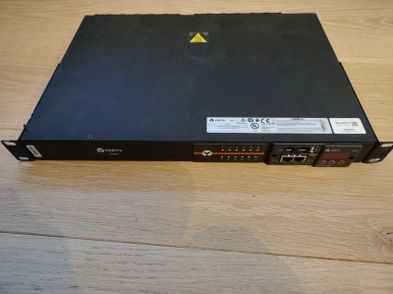

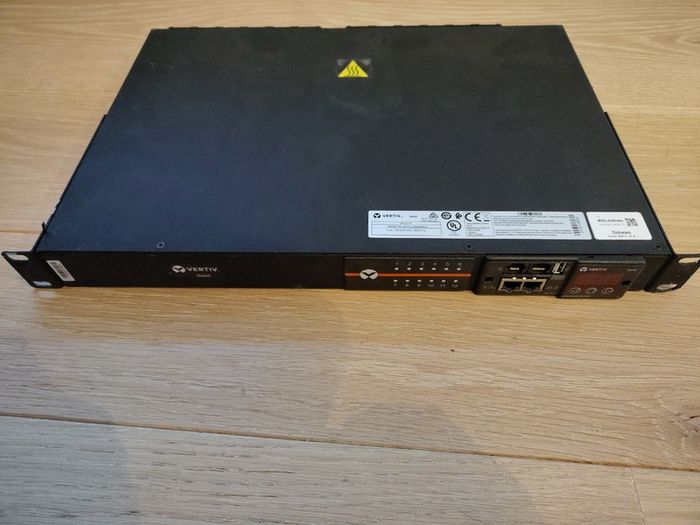

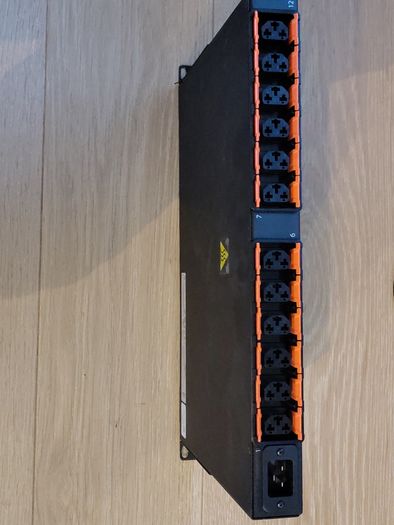

The Vertiv Geist VP52101 is a 1U horizontal Switched Rack PDU designed for short cabinets and small network closets, featuring 12 combination C13/C19 outlets and a C20 inlet. It supports 16A or 20A currents with input voltages of 120V, 208V, or 230V, providing power capacities ranging from 1.9kW to 3.6kW depending on the configuration.

Key features include individual outlet switching for remote rebooting and overload prevention, input power monitoring, and Visible Light Communication (VLC) for mobile data access via the Vertiv rPDU Scanner app. The unit utilizes a hot-swappable Interchangeable Monitoring Device (IMD) with a local LED display, dual Ethernet ports for fault-tolerant daisy chaining, and supports protocols such as SNMP, HTTP, HTTPS, and SSH.

Dimensions: 19-inch rack mount, horizontal form factor (approx. 431.8 mm width x 304.8 mm depth x 43.7 mm height).

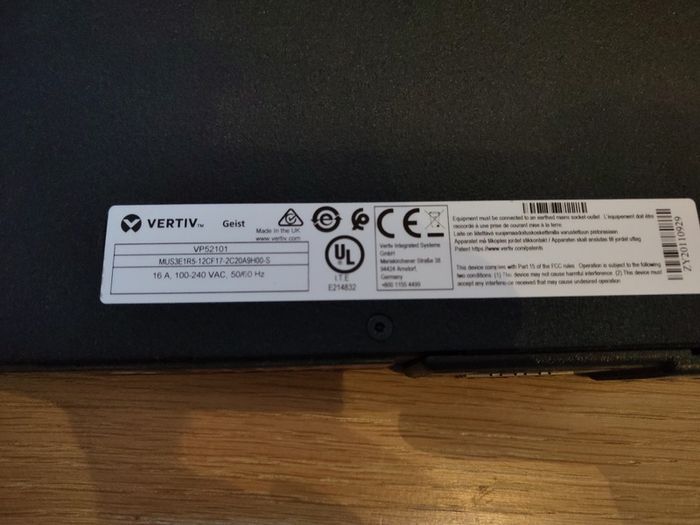

Certifications: UL & c-UL Listed (60950), RoHS compliant, and TAA-compliant.
