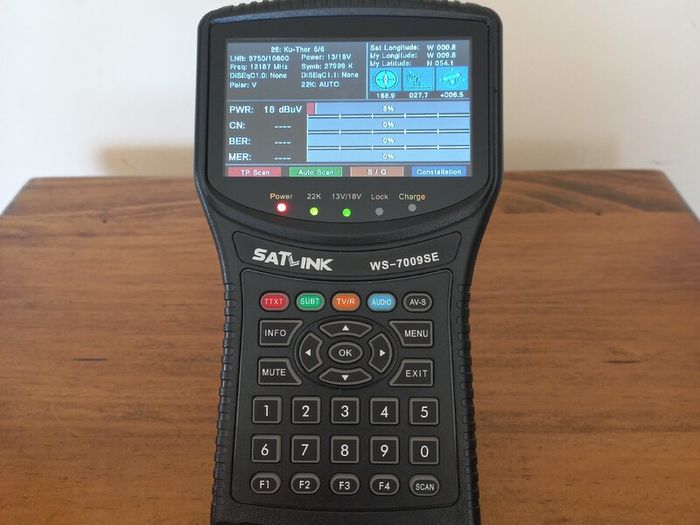

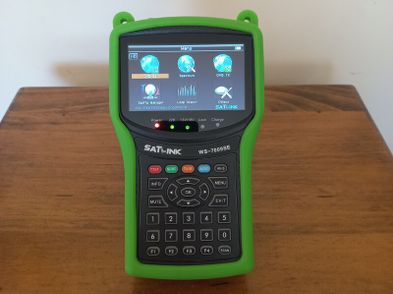

Satlink Ws- 7009 Se Dvb-s2 & Dvb-t2 Meter

The Satlink WS -7009 HD SE is a professional measuring instrument for all satellites - reception facilities according to European standards.
It is suitable for new installation of a satellite dish to quickly find the desired DVB-S/DVB-S2 satellites as well as to validate existing satellite - receiver systems .
It is suitable for new installation of a terrestrial DVB- T Antenne to quickly find a desired signal DVB-T/T2 and systems to validate existing DVB -T receivers.
The Signal - You can directly measure the LNB or multi switch - done . ( All types of LNB)
The Satlink WS -7009 SE HD is also ideal for measurements in Unikabelanlagen .

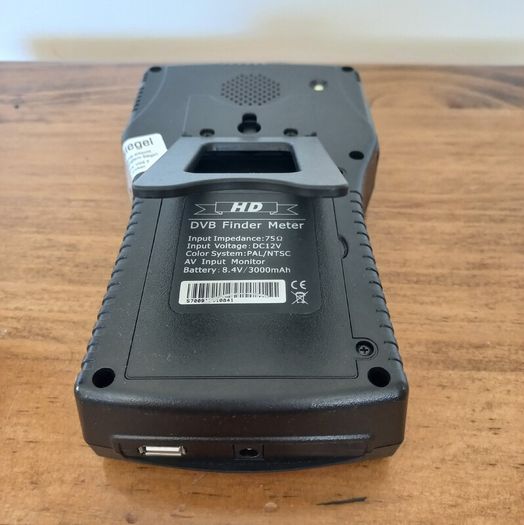

The built-in battery makes this device an ultra - portable measuring instrument .
The unit displays the measured values ​​and generates the acoustic analysis of the signal intensity is also a tone signal search .
Measurement and presentation of the TV picture is possible HDTV DVB -S2 transponders + T2 !




Features:

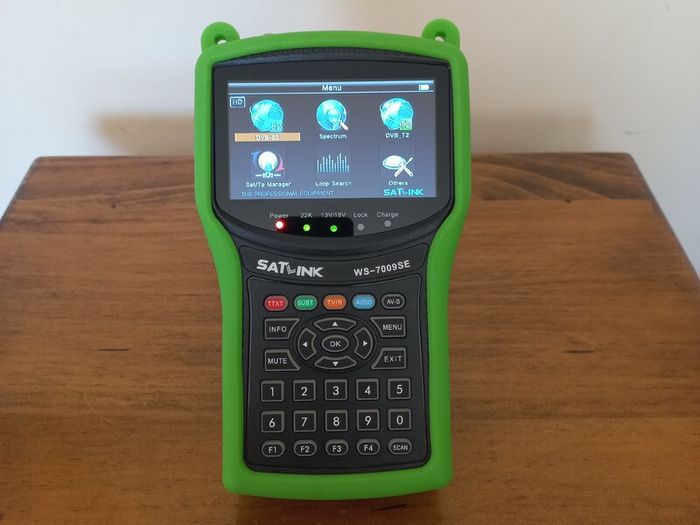

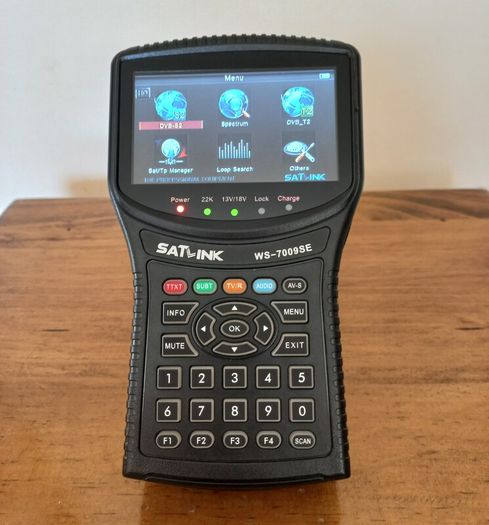

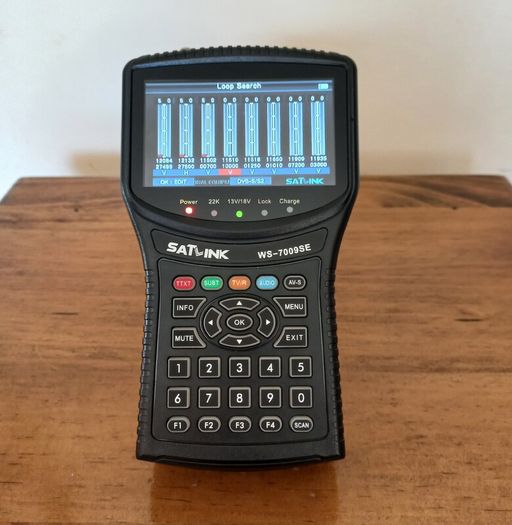

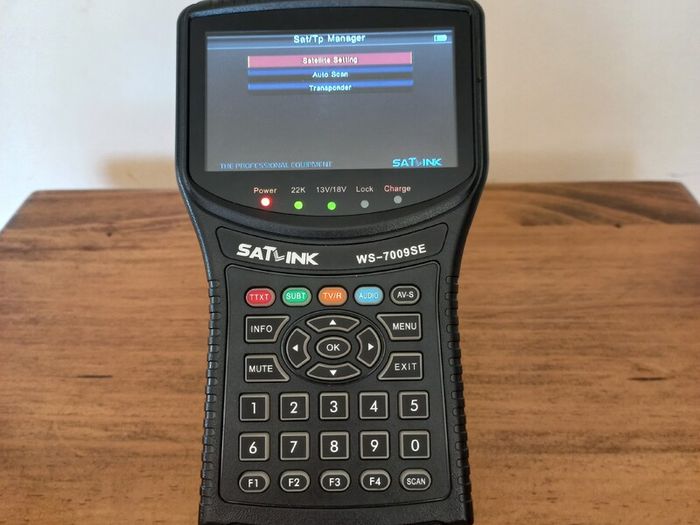

DVB-S2, Spectrum, DVB-T2, Sat/Tp Manager, Loop search
TFT color LCD with a size of 4.3 "screen / 11cm
backlit keyboard

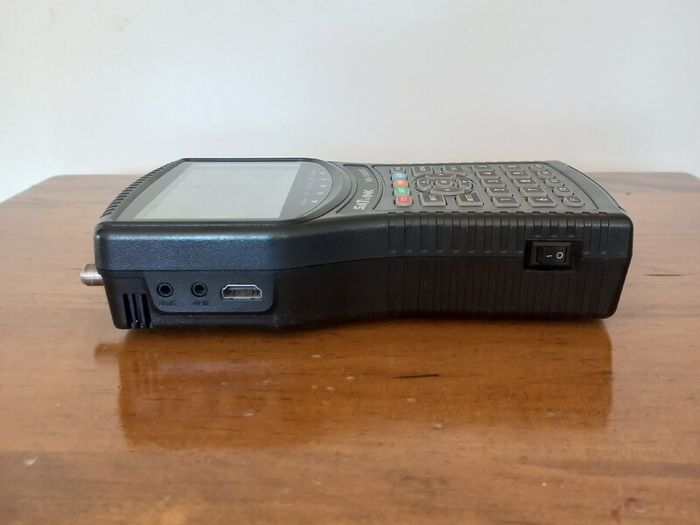

Audio and video input / output ( 3.5 mm jack )

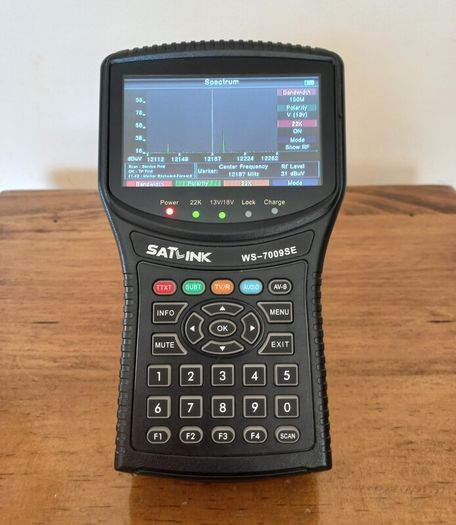

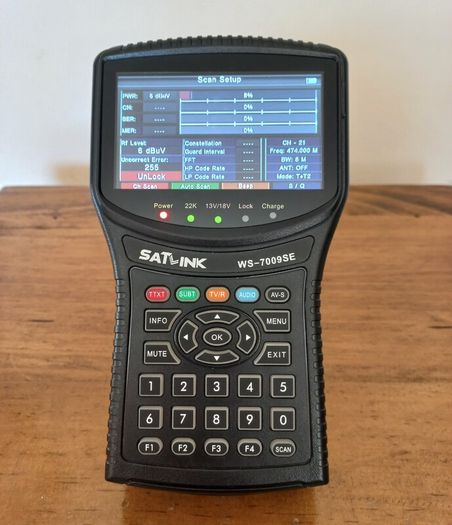

Spectrum Analyzer for DVB-S/S2 and DVB-T/T2
SAT: QPSK 8PSK + + 16APSK for DVB-S/S2
DVB -T: QPSK, 16QAM, 64QAM, 256QAM
Measurements in HD transponder DVB- T + S possible
Reception and playback + DVB-T/T2 DVB-S/S2 TV and TV HD image - and sound
Allows measurements in satellite reception systems Unikabel
Provides power for active DVB -T antenna
Returns the 12V power supply for cameras A / V

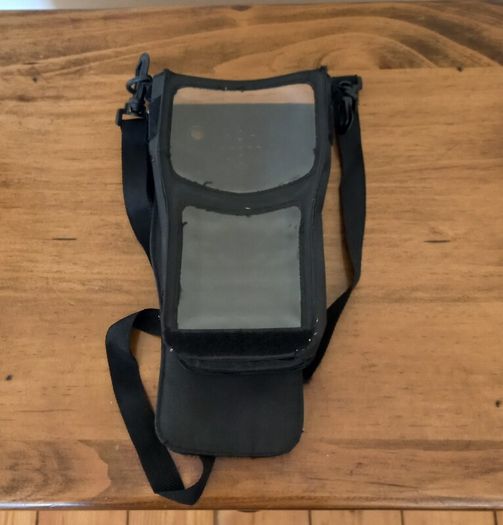

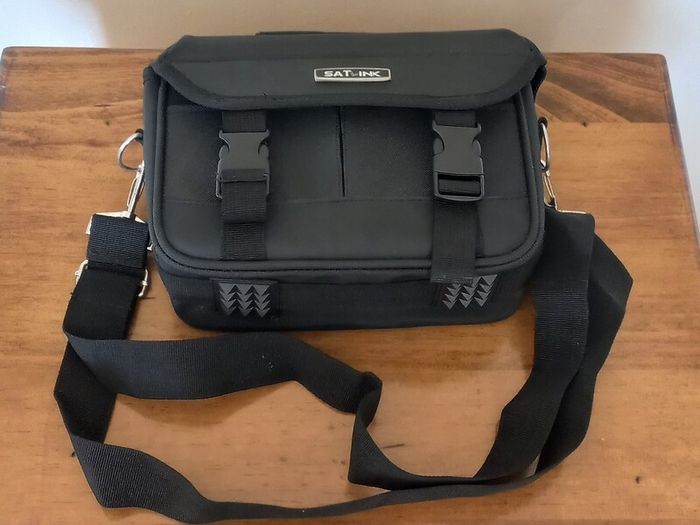

Nylon - Service - Case + Shoulder Strap
Irish/GB and EU power plugs included
