Amplifi -HD Home Wi-Fi Mesh System

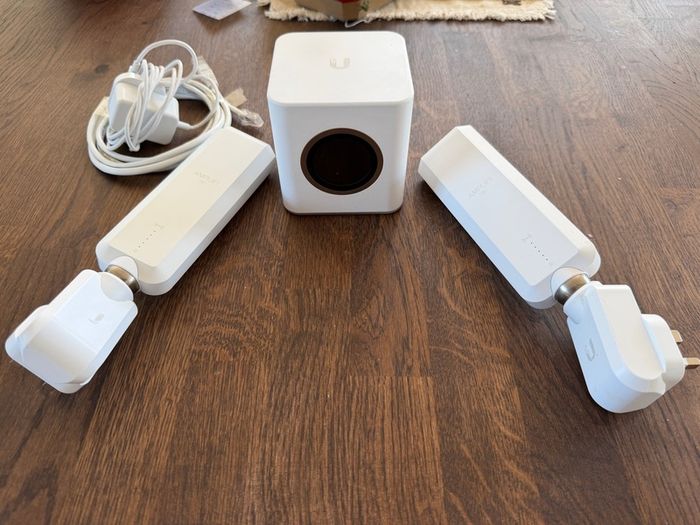

The AmpliFi™ HD (High Density) System includes a router base station and two wireless super mesh points for maximum Wi-Fi coverage throughout your home.

The HD Kit provides maximum wireless performance in an innovative and elegant design.
The router includes a smart LCD screen and the mesh points display wireless signal performance.
A mobile app is available for iOS and Android™ platforms for instant setup and easy management.

Plug and Play Setup
AmpliFi’s app directly links AmpliFi devices to your smartphone via Bluetooth LE. With a simple, intuitive setup, you can manage your new network, monitor ISP speeds, invite guests, and oversee network security.

AmpliFi Specifications
Max TX Power 26 dBm
Radios 6
MIMO Chains 18
Speed 5.25 Gbps
Range 20,000 sq. ft
Common Specifications
Networking Interface Wi-Fi/Gigabit Ethernet (1) WAN, (4) LAN
Maximum Power Consumption 11W
Buttons Reset
Antennas (3) Dual-Band Antennas
Display 1.6" (40.6 mm) Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color
Wi-Fi Standards 802.11b/g/a/n/ac
Power Save Supported
Wireless Security WPA2-PSK AES/TKIP
Operating Temperature 14 to 131° F (-10 to 55° C)
Operating Humidity 95% Noncondensing
Certifications FCC / CE / IC
Supported Data Rates
802.11ac 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps


Can post nationwide for an additional €10 with tracking and insurance.
