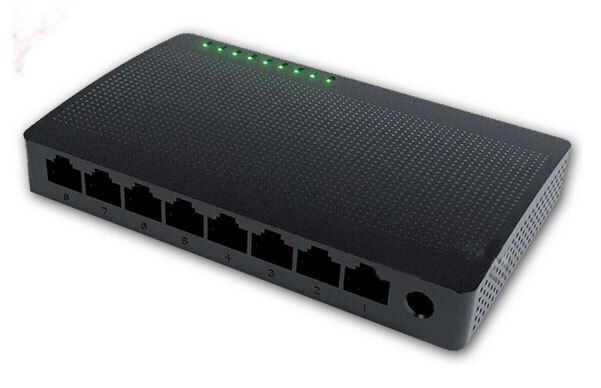

8 Port Gigabit Network Switch

Description of switch (While Stocks last)

• 8 Port Gigabit Network Switch
• Model: Tenda SD-108
• Type: Desktop Switch or Wall Mounted
• Unmanaged Network Switch
• Power Supply: 5Vdc ~ 0.6a
• Colour: Black
• Standards & Protocols
• IEEE802.3i, 802.3u, 802.3ab, 802.3x
• CSMA/CD, TCP/IP
• Full-Duplex & Half-Duplex
• MAC Address Table: 4k
• Ports: 8x 10/100/1000Mbps Auto-Negotiation RJ45 Ports (Auto MDI/MDIX)
• Network Media
• 10Base-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
• EIA/TIA-568 100Ù STP (Maximum 100m)
• 100Base-Tx: UTP Category 5, 5e Cable (Maximum 100m)
• EIA/TIA-568 100Ù STP (Maximum 100m)
• 1000Base-T: UTP Category 5, 5e Cable (Maximum 100m)
• LED Indicators
• Certification: FCC, CE, RoHS
• Power: UK/IRE 3 Pin External Power Adapter
• CC 85389000 0.35kg Y

USES of Gigabit Network Switch

• Used with CAT5e / CAT6 cables to build high speed gigabit network
• Also backwards compatible with 10/100 networks (CAT5)
• Would be very useful in an IP camera setup also
