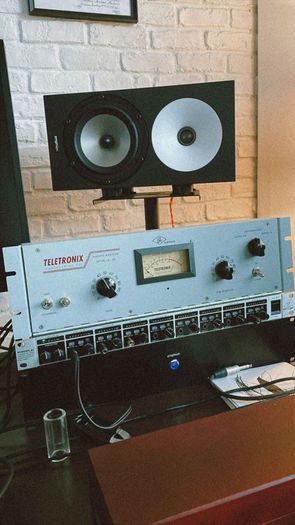

Teletronix LA-2A Classic Leveling Amplifier

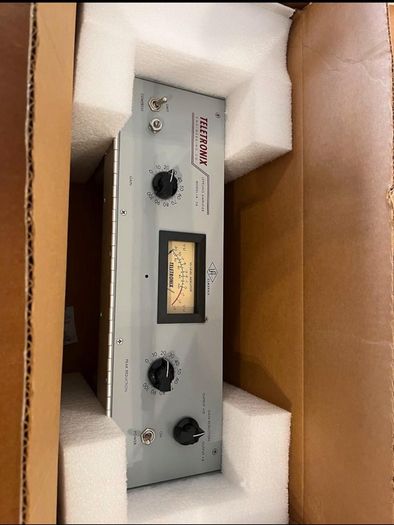

MINT CONDITION

Get UA’s famed optical tube compressor, true to the original design.
Dial-in legendary optical tube compression textures for vocals, bass, drums, and more
Record your tracks through vintage UA, "handmade in the USA," circuits
Easily add iconic warmth and tube limiting with simple, easy-to-use controls
Track and mix with a piece of audio recording history

Details
True to the original in design, manufacturing and performance
Lag free, distortion free optical attenuator system
Distortion less than 0.5% THD
0 to 40 dB gain limiting
Balanced stereo interconnection
Frequency response 1 dB, 30 to 15,000 cps
Output level of 10 dBm and 40 dB gain
Low noise – less than 70 dB below ±10 dBm output
Specs
Input Impedance

50, 150, 250, 600 ohms
Output Load Impedance

50, 150, 250, 600 ohms
External Connections

Jones Barrier terminals and XLR connectors
Frequency Response

+0/-1 dB 30 Hz to 15kHz
Gain

40 dB ±1dB
Input Level

+16 dB maximum
Output Level

+10 dB nominal, +16 dB maximum
Distortion

Less than 0.5% THD (0.25% typical) at ±10 dBm
Noise

70 dB below +10 dBm output level
Attack Time

10 microseconds
Release Time

0.06 seconds for 50% release; 0.5 to 5 seconds for complete release
Meter

dB gain reduction and dB output
Power Requirements

35 watts, 120/240 volts, 50/60 Hz
Environmental

Maximum operating temperature 160°F
Dimensions

19" Rackmount chassis, 3U
Weight

13 lbs.
