SPL Channel One Mk 1 with digi board

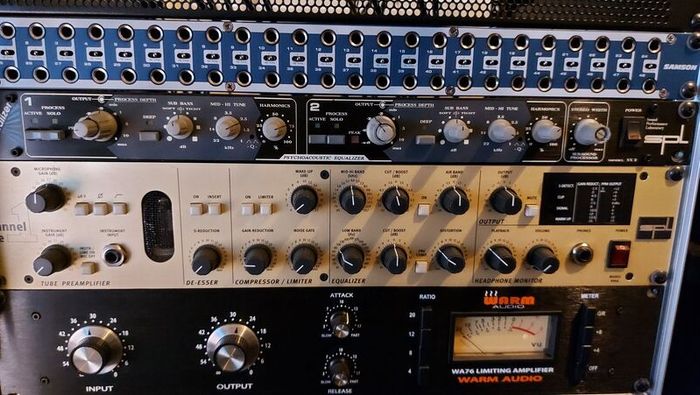

The SPL Channel One MK1 is a 19-inch, 2U channel strip with a Tube/Solid State Hybrid preamp, a semi-parametric 3-band EQ with an "Air" filter, a de-esser, a compressor/limiter, and a tube saturation circuit, all built around a shielded toroidal transformer and a linear power supply. It provides a range of input options including XLR and TRS, features a front-panel instrument input, and offers +48V phantom power for microphones.

Key Specifications

Preamp: Tube/Solid State Hybrid

EQ: 3-band semi-parametric equalizer with an "Air" high-frequency filter

Compressor/Limiter: Features a de-esser and controls for Attack (±15dB) and Sustain (±24dB)

Tube Saturation: A single control for variable harmonic distortion that can be placed before or after the EQ

Power Supply: Internal linear power supply with a shielded toroidal transformer

Connectivity: XLR and TRS analog inputs/outputs, front-panel instrument input, plus +48V phantom power

Chassis: 19-inch Rack-Mount, 2U

Origin: Made in Germany, with the MK1 model produced between approximately 2001 and 2009

Features and Functionality

Microphone Transformer:

Features a specially designed input transformer that provides an additional gain of up to 14 dB for the microphone input, increasing operational reliability and adding sonic characteristics.

Transient Designer:

The unit incorporates SPL's Transient Designer circuitry, allowing for manipulation of attack and sustain.

Air Filter:

A high-frequency filter with a center frequency of 19kHz and a boost/cut of up to ±10dB.

Tube Saturation:

A flexible control that allows for the addition of harmonic distortion at various points in the signal chain.
