Rc battery charger

Features:
1. Microprocessor controlled Delta-peak sensitivity
2. Individual cell balancing Li-ion, LiPo and LiFe capable Ni-Cd and NiMH capable
3. Large range of charge currents Store function, allows safe storage current
4. Time limit function
5. Input voltage monitoring. (Protects car batteries at the field)
6. Data storage (Store up to 5 packs in memory)
7. Battery break in and cycling.
8. Support new generation system (LiFe) battery

Specifications:
* Operating voltage range: DC11.0-18.0 Volt / AC to DC adaptor(DC11.0-18.0V/ 6A/5A)
* Circuit power: Max.charge power80W / Max.discharge power 5W
* Charge Current Range: 80W :0.1-6.0A
* Discharge current range: 80W:0.1-2.0A
* Current drain for balancing Li-po: 300mAH/cell
* LiIon/LiPo/LiFe cells : 1-6 cells
* NiCd/NiMH cells : 1-15
* Pb battery voltage: 2~20v
* Dimensions: 133x87x33mm

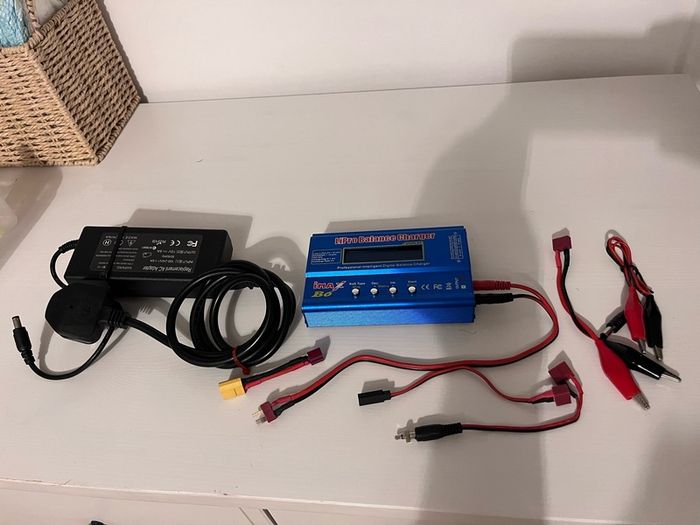

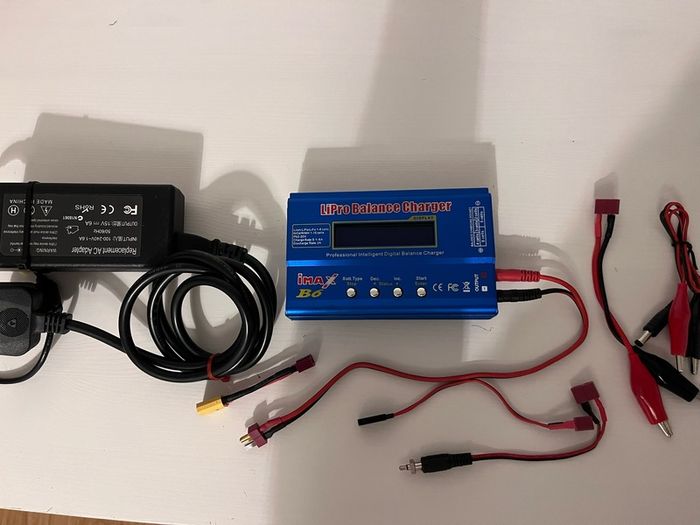

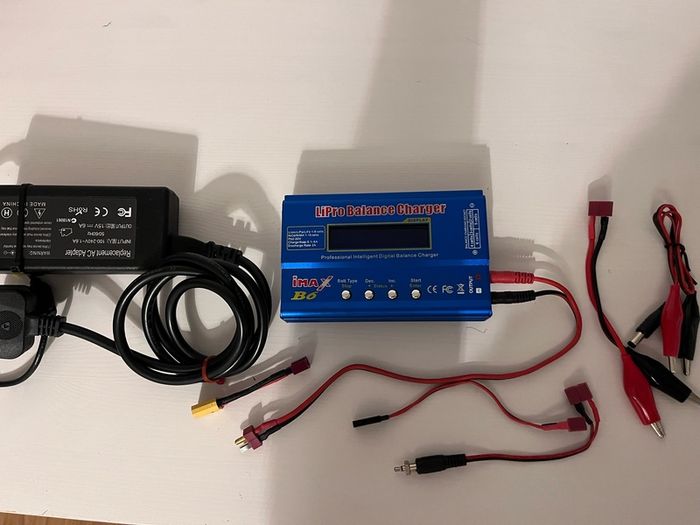

Package include:
1 x imax b6 balance charger
1 x 15V 6A adapter
1 x Banana to T plug charging cable
1 x DC crocodile clip charging cable
1 x T to crocodile clip charging cable
1 x T to XT60 charging cable
1 x T to JST charging cable
1 x T to Dupont Charging cable
1 x Manual


Please Note:

1.There are two types for choose: b6 no adapter and b6 with adapter,you can choose as you want.

2.Our machine can't support to measure the 1s battery 's voltage and Resistance .

3.Do not choose the wrong battery type when charging !!


1.PROGRAM SELECT LIPO BATT : to charge /balance charge/fast charge/storage/discharge/lipo/lion/life batteries

2.USER SET PROGRAM: to set the parameter of charge batteries which you need .

3.PROGRAM SELECT NIMH BATT :to charge/discharge/cycle/nimh/nicd batteries

4.PROGRAM SELECT SAVE DATA : save setting data

5.PROGRAM SELECT PB BATT:to charge/discharge the pb (lead acid ）batteries .
