YB1200H 3.8KW 140A 220 V Handheld Electric Welding Machine Home Automatic Digital Intelligent Welding Machine With Backlight

Features:
With the output current adjustment knob, you can adjustable the current for you different needs through this knob.
It has the characteristics of easy arc striking, small spatter, stable current and fine forming.
With high efficiency cooling system, which can ensure long time of work and prolong the service time of the machine.
Supporting 3.2 and 4.0 welding rods, you can choose the suitable rods according to your different needs.
The function and performance of this full digital control welding machine are greatl improved compared with the traditional welding machine, whether you are a professional hobbyist or just beginning to learn welding, this tool is indispensable.
The large display screen with backlight, you can see the number clearly and give you a better using experience.

Specifications:
Material: ABS+metal
Power supplys voltage (VAC): singles phase AC220V±15%
Plug: EUPlug
Input frequency (Hz): 50/60Hz
Rated input p-eak current (A): 17A
Power capacity (KVA): 3.8KW
Rated output current (A):
C mode hand welding: 140A
P mode hand welding: 140A
Output current adjustment ranges:
C mode hand welding: 15-140A
P mode hand welding: 15-140A
Thrust current adjustment ranges: 0-9%
No-load voltage:
Without VRD: 65V
With VRD: 15V
Load duration (%): 140A(ARC)-30%
Power factor speed: 0.7
Thickness of electrodes: 4.0mm
Type of electrode: Stainless Steel/Carbon Steel/Steel
Electrode material: Stainless steel/alloy steel/carbon steel/cast iron
Welding method: drawn arc

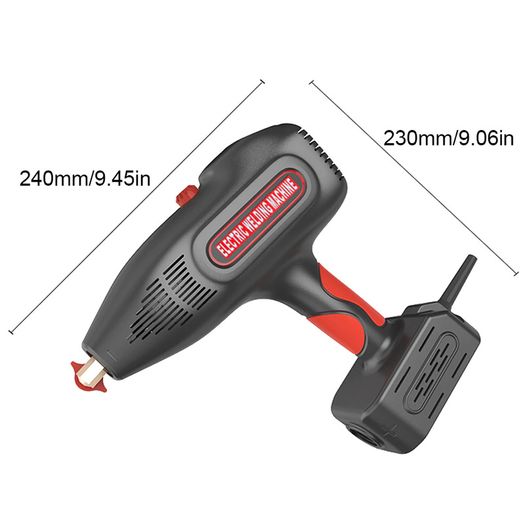

Item size: 275 * 245 * 90mm / 10.8 * 9.6 * 3.5in
Item weight: 1700g / 3.7lb
Package size: 360 * 300 *110mm / 14.2 * 11.8 * 4.3in
Package weight: 3000g / 6.6lb

Packing list:
1 * Welding Machine with Plug
1 * Ground wire
1 * User Manual
Delivery Takes 4-10 Days
