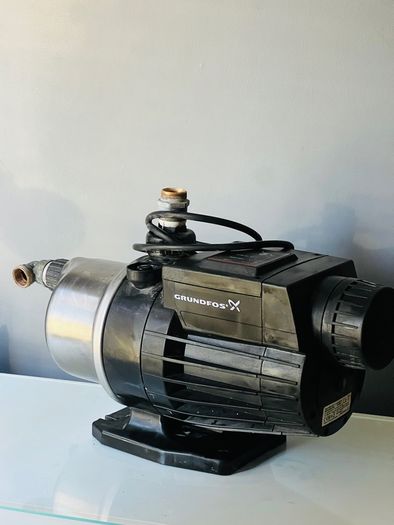

water pump 1000w Grundfos

Product name
MQ3-45 A-O-A-BVBP
Product No
96607288
EAN number
5700832231546
Price
Technical
Rated flow
3 m³/h
Rated head
23 m
Max. head
45 m
Primary shaft seal
BVBP
Approvals
CE,WEEE
Curve tolerance
ISO9906:2012 3B
Pump version
A
Model
B
Adjustable start pressure (Yes/No)
N
Start pressure
2.8 bar
Materials
Pump housing
POM + 25% GLASS FIBRE
Impeller
PPO + 20% GLASS FIBRE-PTFE
Material code
A
Installation
Range of ambient temperature
0 .. 45 °C
Maximum operating pressure
7.5 bar
Pipe connection
G1
Connect code
O
Liquid
Pumped liquid
Water
Liquid temperature range
0 .. 35 °C
Selected liquid temperature
20 °C
Density
998.2 kg/m³
Electrical data
Power input - P1
1000 W
Mains frequency
50 Hz
Rated voltage
1 x 220-240 V
Rated current
4.5 A
Enclosure class (IEC 34-5)
IP54
Insulation class (IEC 85)
B
Length of cable
2 m
Type of cable plug
NONE
Controls

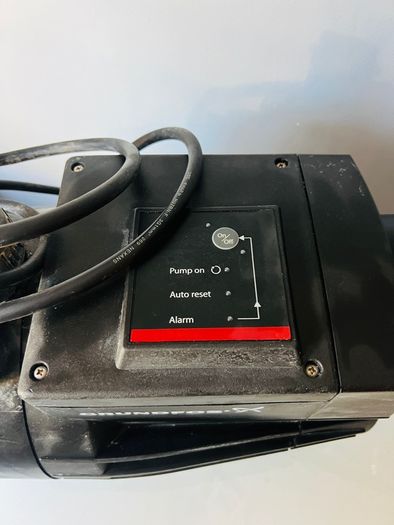

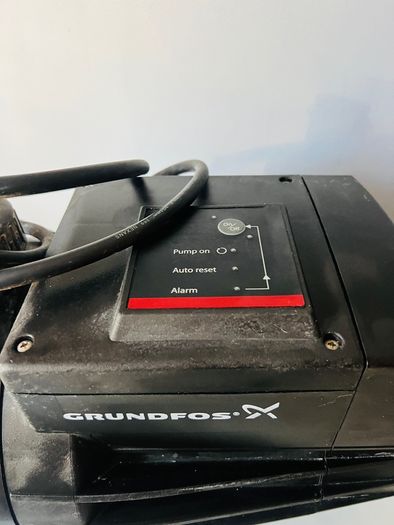

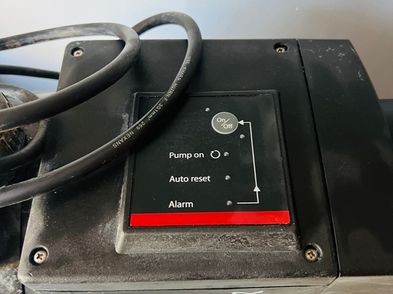

Switch
on/off switch included
