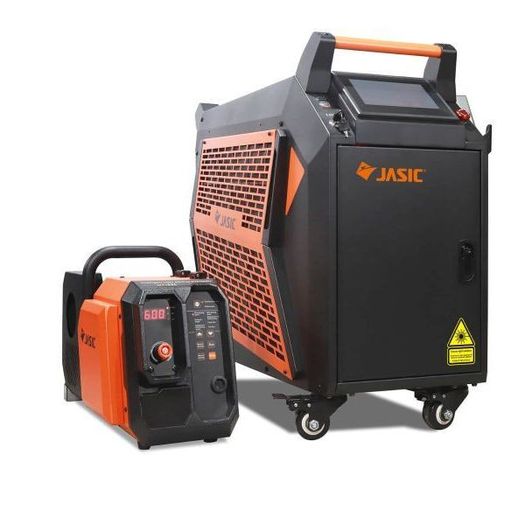

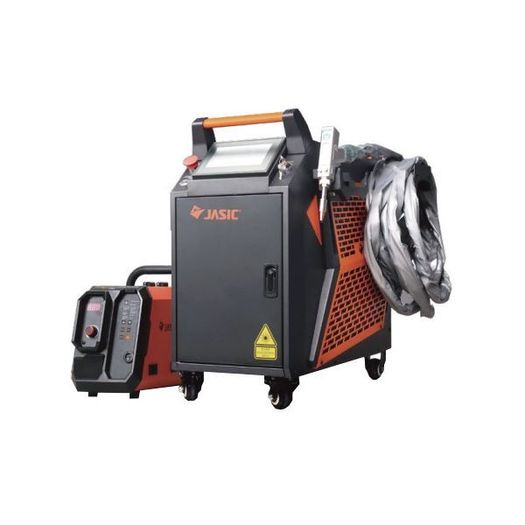

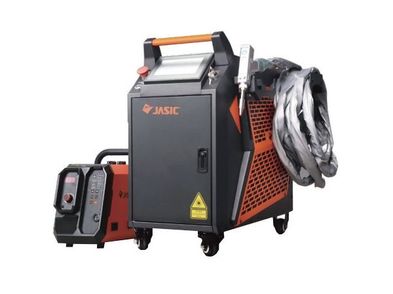

Jasic LS-20000F 2000W Laser Welder, Cutter, Cleaner

Preorder ONLY!

Condition: New in Box, 1 year warranty from another EU country. Few different and most popular models in stock all the time, any other Jasic products (welders, plasma cutters, etc...) possible to preorder (deposit will be required).

3 in 1 Laser Machine: Welding, Cutting, Cleaning !

Fresh new modern model. This company doesn`t need any introduction! ***CAN DELIVER WITHIN CORK CITY FOR AN ASKING PRICE, otherwise €13000 upon collection -> NOT taking lower offers!***

The Jasic LS-20000F Laser Welder is designed to redefine efficiency and precision in professional welding applications. With a welding speed up to 10x faster than traditional manual TIG welding, it significantly reduces project time while ensuring exceptional weld quality. The cutting-edge technology minimizes spatter, porosity, and distortion, requiring little to no post-weld cleaning or rework, making it an indispensable tool for high-demand environments.

​Engineered for cost efficiency, the LS-20000F eliminates the need for extensive welding expertise, helping companies reduce reliance on highly experienced welders. Its robust pump source offers a remarkable lifespan of over 100,000 hours, ensuring nearly zero maintenance requirements and long-term reliability.

Featuring an innovative industrial design, the LS-20000F offers ergonomic flexibility and ease of use, complete with a color touchscreen control panel for intuitive operation and comprehensive job parameter settings. Its compact footprint enhances mobility and versatility, making it suitable for a wide range of industrial applications.

​Powered by a CW laser with over 40% electro-optical conversion efficiency, it outperforms traditional solid YAG lasers with 10x the energy efficiency, providing both eco-friendliness and cost savings. Backed by a 2-year warranty, the Jasic LS-20000F Laser Welder guarantees quality assurance and dependable performance for your welding needs.

General
Laser Power 2000 W
Electro-Optical Conversion Efficiency ≥30%
Input Power 7.8 kW
Central Wavelength 1080±10 nm
Fiber Cable Length 12 m (9 m exterior)
Cooling Method Water Cool
Water Tank Capacity 13 liters
Operating Temperature Range -10°C~40°C; antifreeze needed below 7°C
Work Environment Humidity Range ≤70% at 40°C; ≤90% at 20°C
Weight of Power Supply Source 103 kg
Weight of Wire Feeder and Accessories 14.7 kg
Welding
Seam Width 0~5mm
Wire Diameter 0.8/1.0/1.2/1.6 mm
Protective Gas Argon/nitrogen (welding > 3 bar)
Material Thickness 0.5~6mm
Penetration 4.5mm
Distance Between Welding Joints ≤Welding wire diameter
Cutting
Recommended Cutter Thickness 5mm
Max Cutter Thickness ≤6mm
Protective Gas for Cutting Argon, nitrogen, compressed air (> 5 bar)
Cleaning
Distance 15 cm (focal length F150)
40 cm (focal length F400)
Max Cleaning Width 15 mm (focal length F150)
40 mm (focal length F400)
Power Supply
Voltage 230 V ± 15% (1 phase) / 50 Hz

Kit Contains:

Jasic LS-20000F source
Power supply unit with cooling group
Torch (10 m hose package)
Ground clamp with cable
