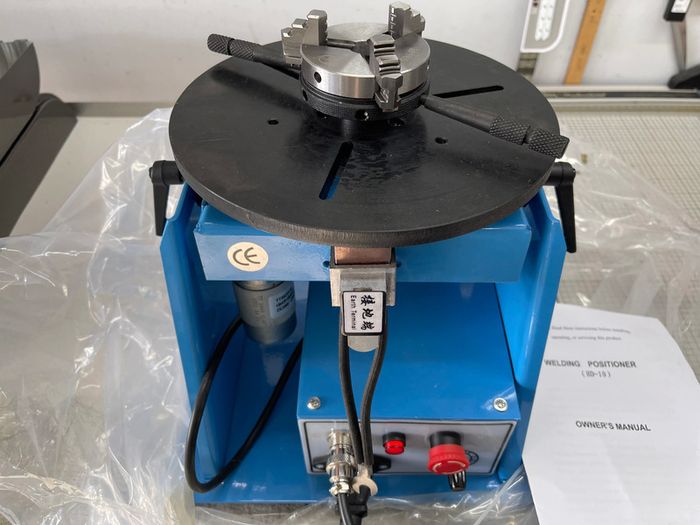

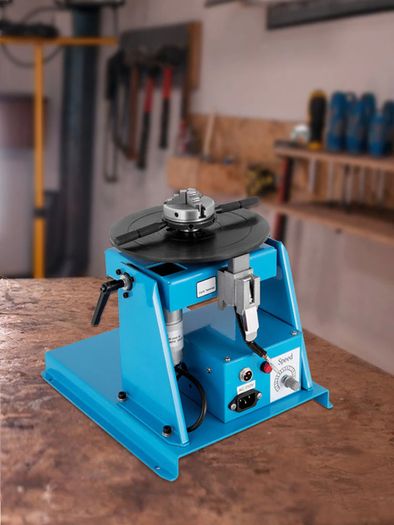

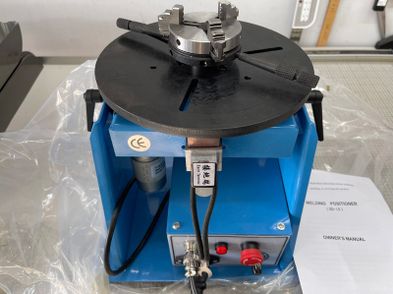

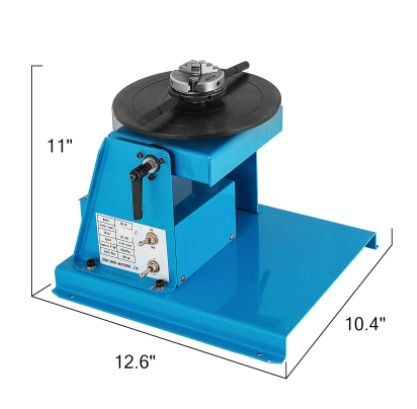

BRAND NEW 5/10KG Mini Semi-Automatic Rotary Welding Positioner Turntable Tilte Table 0-90 W/ 3 Jaw Lathe Chuck for Annular Welding

Load Capacity: Max.10kg at 0°; Max.5kg at 90°
Rotating Speed: 2-20rpm
Tilt Angle: 0-90°
Mini chuck: KC-65
Table Diameter: 180mm
Voltage: 220V(EU/AU) 110V(US), 50/60 Hz
Height of Table: 232 mm / 9''
Motor Power: 15W
Rated welding current：80A
Drive motor: DC24V 15W
Workbench rollover: Manual
Application Chuck: KC-65
Product Weight: 10kg / 22LB

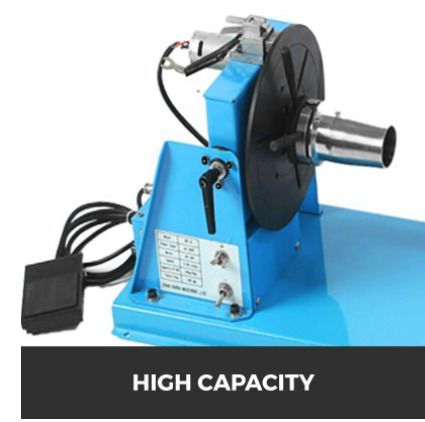

【WORKING CAPACITY: 5KG/10KG】- Horizontal/Vertical loading capacity:10 kg/5 kg; Working table diameter/height: 18 cm/7in.; 23.2 cm/9in. Made of stainless steel, features high quality and durability.

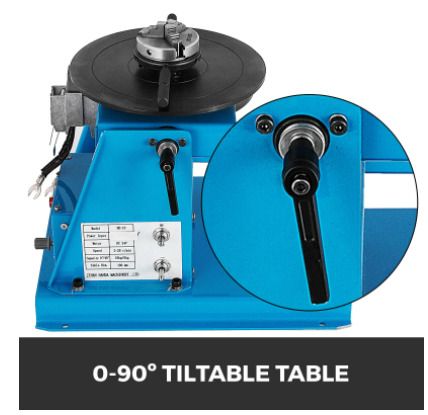

【0-90º TILTABLE TABLE】- The turning structure of worm and gear has the function of self-lock, and the worktable can be turned steplessly between 0-90°. It also can be fixed at any angle you want.

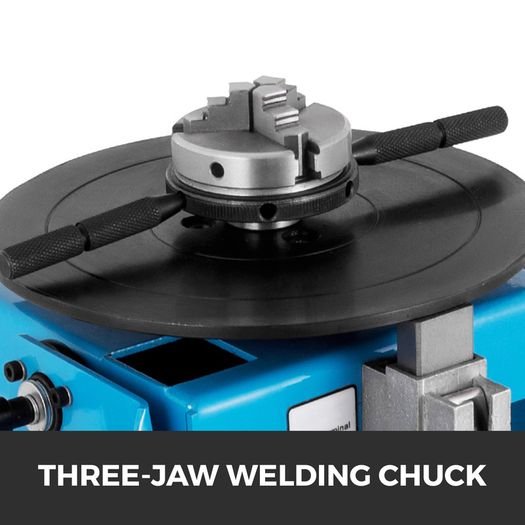

【THREE-JAW WELDING CHUCK】- Three jaws are reinforced to prevent the weldment pieces from moving and falling. It is upgraded to be more accurate and more practical.

【STEPLESS SPEED CONTROL】- Using foot switch to control table rotation, the speed is regulated by the knob on the machine(0.5-5r/min stepless speed regulation).

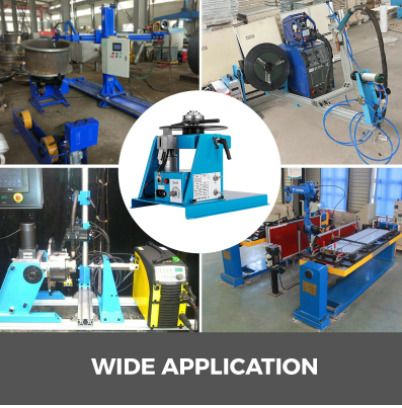

【WIDE APPLICATION】- Can be fixed on the working table or specific tooling for clamping workpiece with manual welding, can also be used with welding operation machine to achieve automatic welding, but also for cutting, grinding, assembly, testing and other processes.

Delivery Takes 4-10 days.
