Bench drill

Product description

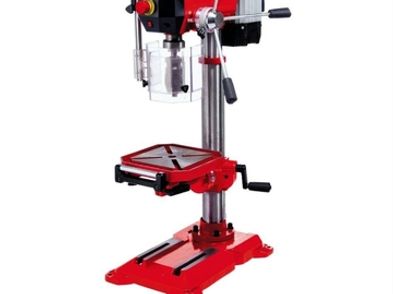

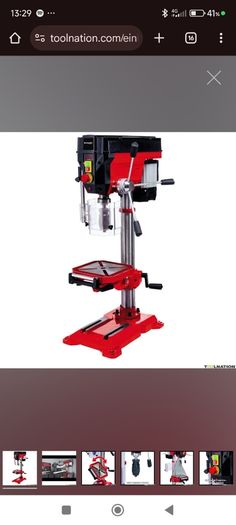

Einhell 4250715 TE-BD 750 E Column drilling machine 1-16 mm 750 watts

The Einhell TE-BD 750 E Column Drill is a powerful and precise machine that should not be missing in any workshop. With a motor power of 750 W, a spindle speed of 450 - 2,500 rpm can be controlled. The speed is infinitely adjustable and this can be done without the use of tools. An LCD display shows the speed. The quiet, low-noise induction motor ensures pleasant working conditions. The gear head can be used to take drills with a diameter of 1 - 16 mm. In addition, the machine is equipped with a MK2 connection for morse taper drills. The drilling table is tiltable -45°, rotatable and height adjustable. The drilling table is also equipped with an extension piece. The drilling table is illuminated by a bright LED lamp. The drill spindle with ball bearings ensures a long service life. The flight of the machine is 152 mm and the maximum drilling depth is 80 mm. Additional safety is provided by the emergency stop switch and the foldable chip shield.

Features

Stepless speed adjustment

LCD display for speed indication

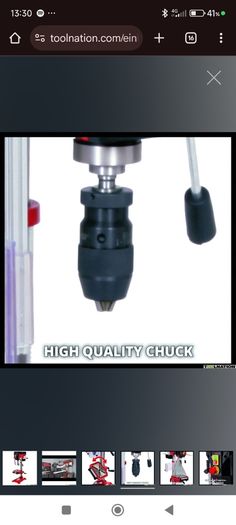

Rackhammer head 1-16 mm

MK2 drill head for morse tapered pieces

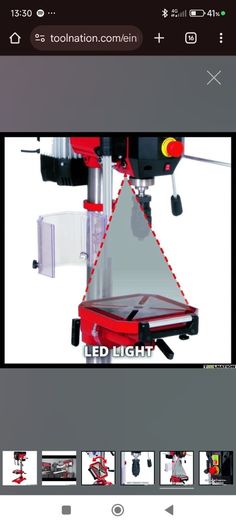

LED light for illumination of the drilling table

Smooth-running and quiet induction motor

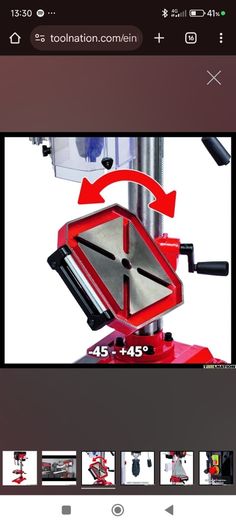

Drill table can be tilted, rotated and height-adjusted

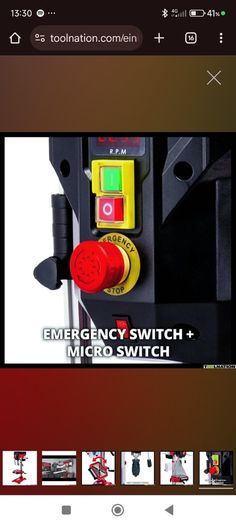

Emergency stop switch and safety spindle protection

Easily adjustable depth stop for accurate drilling

Drill spindle with ball bearings

Specifications

Power supply: 220-240 V 50 Hz

Max. Power (S2 S2time): 750 W 15 min

Spindle speed : 450 min^-1 - 2500 min^-1

Number of Speeds: Continuously

Drill table tiltable: 45 ° - 45 °

Drill chuck holder: B16

Drill diameter: 1 mm - 16 mm

Discharge: 152 mm

Max. Drilling depth: 80 mm

Includes

Column drilling machine

Manual
