4 Jaw Self-Centering Lathe Chuck 125 mm Steel

Free Delivery

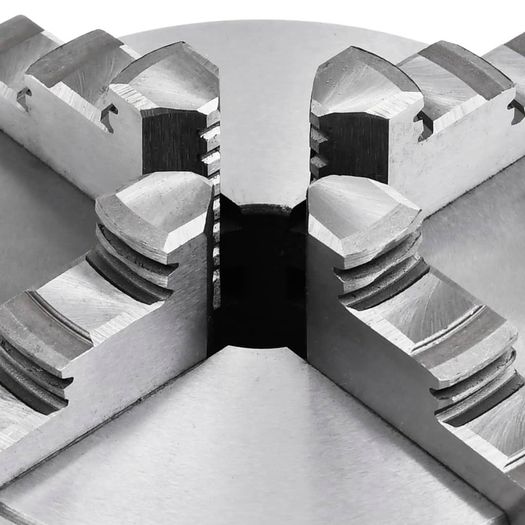

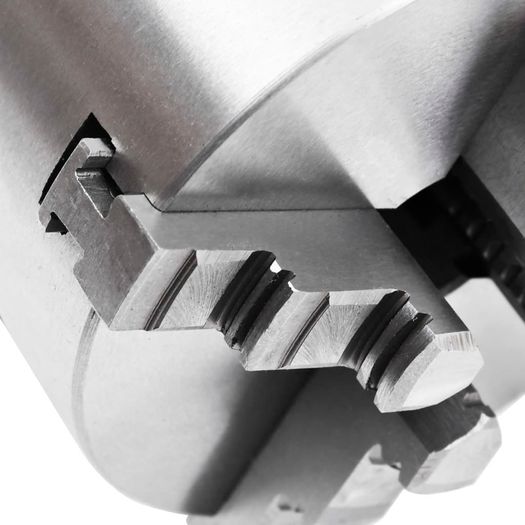

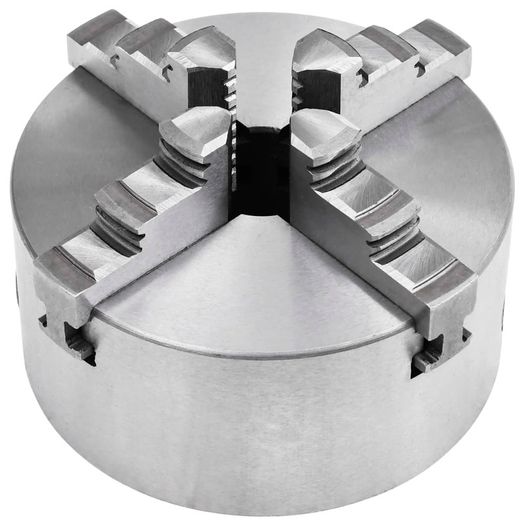

This self-centring 4 jaw lathe chuck can perform a wide range of tasks, expanding the possibilities of making your original designs. It also proves high clamping accuracy on a wide range of surfaces, such as a fixed solid or hollow circle material, a triangular material or a hexagonal material.

It is made of high-quality steel with high hardness and wear-resistance, making it strong and durable. This chuck is with 4 jaw design, self-centring, compact size and easy to use.

●Colour: Silver and black
●Material: HT300 steel
●Outside diameter: 125 mm
●Number of jaw: 4
●Passage: 30 mm
●Cylindrical inner passage: 95 mm
●Clamping range (internal jaw): 2,5 - 40 mm
●Clamping range (external jaw): 38 - 110 mm
●Total height: 58 mm
●Maximum speed: 3000 R/min
●3 x M8 holes
●Run out: 0,08
●Net weight: 5,3 kg
●Delivery contains:
●1 x Lathe chuck

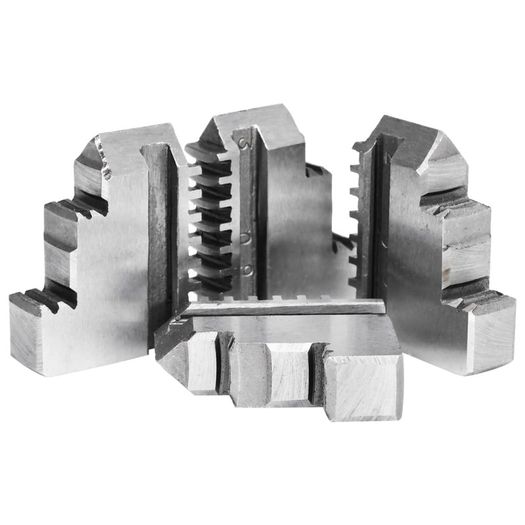

●4 x Jaw
●1 x Chuck key
●SKU: 146710
