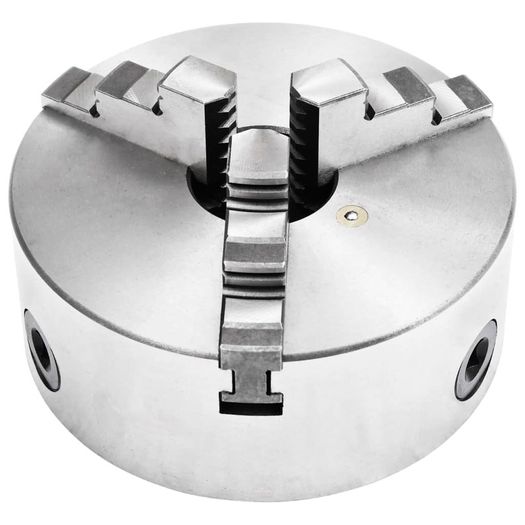

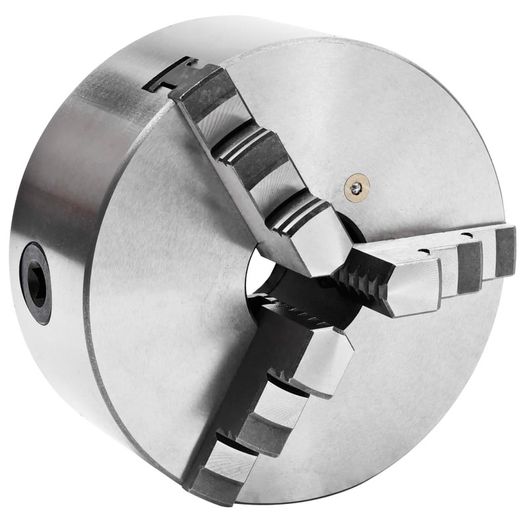

3 Jaw Self-Centering Lathe Chuck 160 mm Steel

Free Delivery
This self-centring 3 jaw lathe chuck can perform a wide range of tasks, expanding the possibilities of making your original designs. It also proves high clamping accuracy on a wide range of surfaces, such as a fixed solid or hollow circle material, a triangular material or a hexagonal material.
It is made of high-quality steel with high hardness and wear-resistance, making it strong and durable. This chuck is with 3 jaw design, self-centring, compact size and easy to use.
• Colour: Silver and black
• Material: HT300 steel
• Outside diameter: 160 mm
• Number of jaw: 3
• Passage: 45 mm
• Cylindrical inner passage: 125 mm
• Clamping range (internal jaw): 3 - 55 mm
• Clamping range (external jaw): 55 - 145 mm
• Total height: 65 mm
• Maximum speed: 2500 R/min

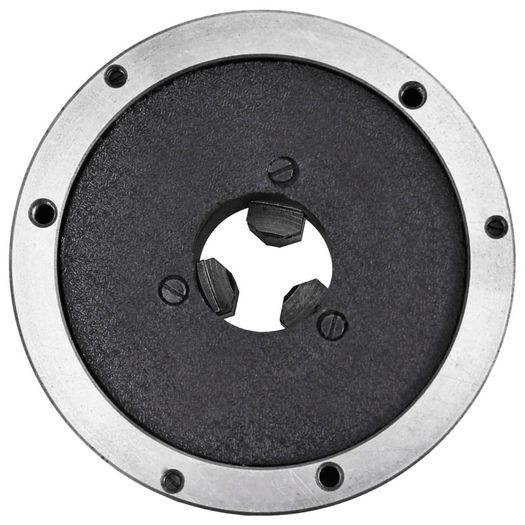

• 3 x M8 holes
• Run out: 0.08
• Net weight: 8.2 kg

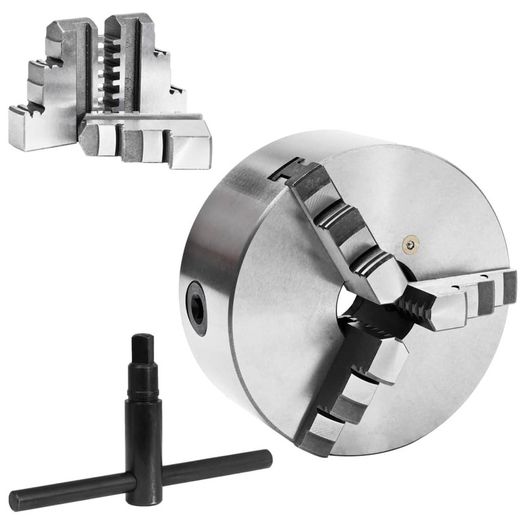

• Delivery contains:
• 1 x Lathe chuck

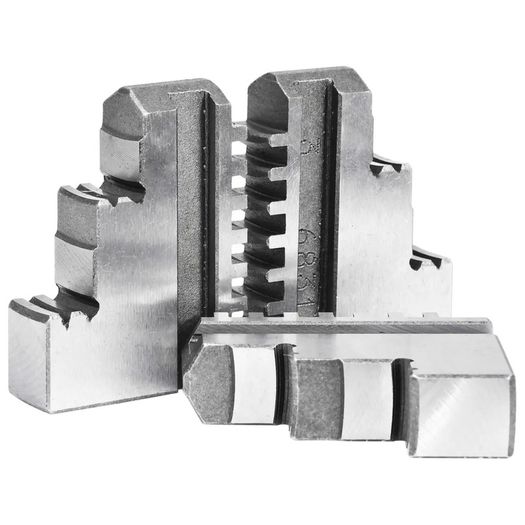

• 3 x Jaw
• 1 x Chuck key
• SKU : 146707
• Delivery is 6-7 working days
