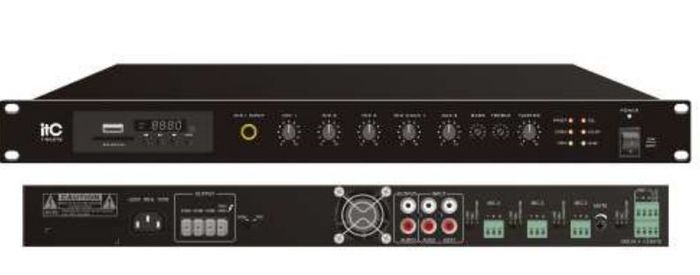

TI-B60DTB Mixer Amplifier with MP3/TUNER/Bluetooth(Phoenix Mic Input)

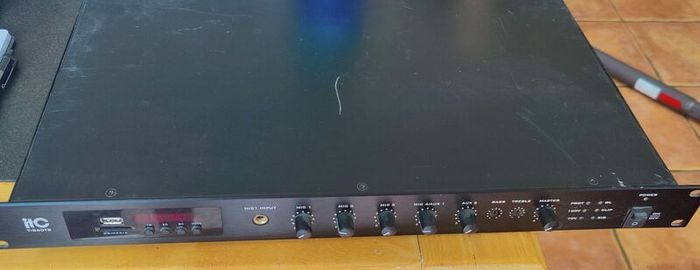

Used in great condition
TI-B60DTB Mixer Amplifier with MP3/TUNER/Bluetooth(Phoenix Mic Input)

Feature：
FREE Courier delivery with the asking price


* Standard rack mounted design (1U), SMT technology.

* With mp3/TUNER/Bluetooth module, digital screen displaying the current music from USB.

* With mp3/TUNER/Bluetooth remote control function.

* 1 EMC input, 2 AUX input, 4 MIC input.

* Channel priority: EMC >MIC1>MIC2, MIC3, AUX1, AUX2.

* Each channel has volume control function, master volume control and bass/treble tone control.

* MIC1-4 with balanced input, built-in 48V phantom power.

* Has level indicator, overload and protection indicator.

* With high temp, overload & short-circuit protection.

* 2 output modes: 100V, 70V (non- Bridged mode).

* High efficiency and energy saving design

* Wide voltage power supply: 180V - 240 V.



Specification：




Model
TI-B60DTB
Output
70V, 100V
RMS Power
60W
Input Sensitivity And Impedance

MIC1, 2, 3, 4 input:5mV/600Ω, balanced 6.3 connector
AUX1、2 input:350mV/10KΩ, Unbalanced RCA connector
EMC input:775mV/10KΩ, Unbalanced 6.3 connector
Output Sensitivity & Source Impedance
MIX OUT:1000mV/470Ω, Unbalanced RCA connector
Tone
Bass: ±10dB at 100Hz
Treble: ±10dB at 10KHz
Frequency esponse
50~16KHz(+1dB,-3dB)
SNR
MIC1, 2, 3:66dB; AUX1, 2:80dB
THD
Less than 0.5%( at 1KHz, 1/3 rated power)
Phantom Power
48V (±2V)
Mute Control
MIC 1 priority over MIC2-4, AUX1-2 audio input,
EMC has highest priority
Channel Crosstalk Attenuation
≥50dB
Heat Dissipation
Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed
Protection
Over-heat, overload, short circuit, etc
Power Supply
~220-240V /50Hz OR ~110-120V /60Hz
Power Consumption
100W
Dimension
484×260×44mm
Weight
4.3Kg

https://www.itctech.com.cn/pro/index/art/3027.html

Postage 20E extra.
