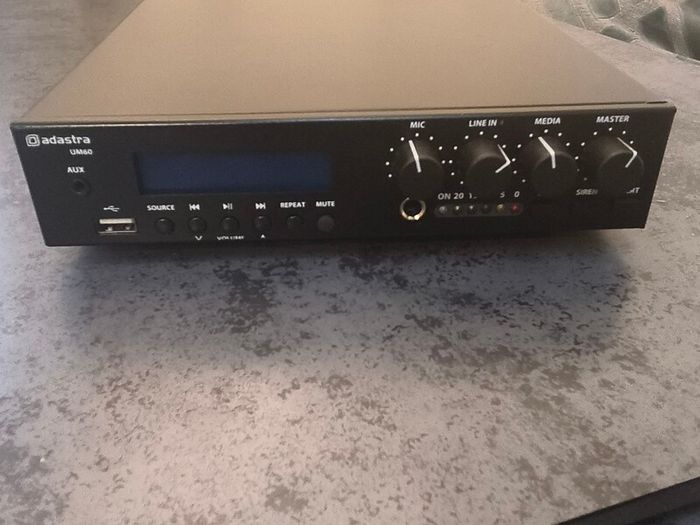

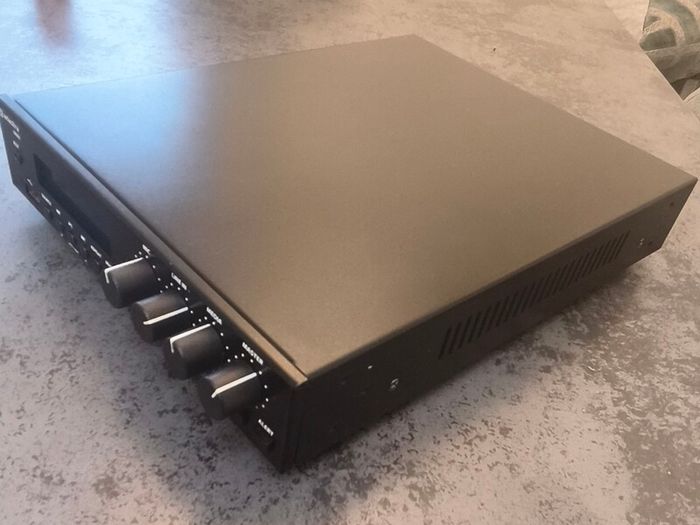

Adastra UM60 mixer amplifier

This ultra-compact, 60W mixer amplifier integrates a high-efficiency Class-D amplifier with a variety of audio inputs and outputs. It features an internal USB, FM, and Bluetooth audio player, making it easy to play music or broadcast messages. Additionally, it includes a microphone input and specialized buttons for fog, siren, and alert warnings. The UM60 can operate on either 240V or 24V power and supports 100V line or 8 Ohms speakers. Ideal for any PA application, this mixer amp is a reliable choice for clear and powerful audio delivery.

Specifications
Power supply 170-264Vac, 50Hz (IEC) or 24Vdc
Amplifier : construction Class D + transformer output
Audio source Internal USB/FM/BT player
Inputs 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
Line output 2 x RCA (mono)

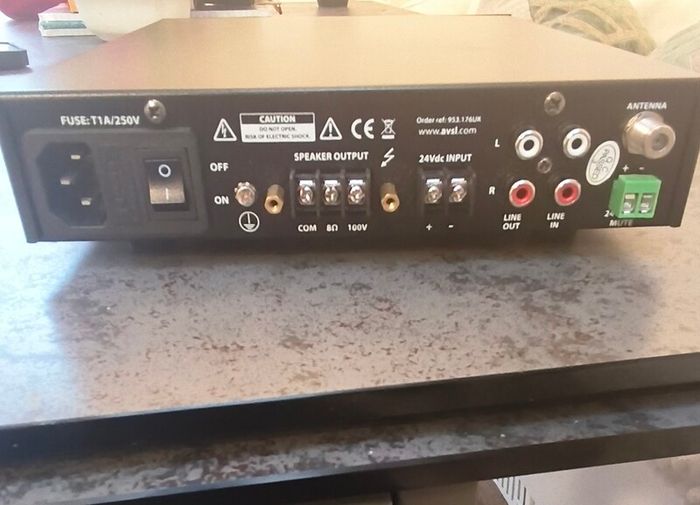

Speaker outputs Screw terminals - 100V / 8 Ohms / Com
DC power 24Vdc screw terminals
Mute 24V relay contacts
THD <0.4% @ 1kHz
Input impedance 1k Ohms (mic/line)
Input sensitivity -10dB (line), -45dB (mic)
SNR 80dB (line), 75dB (mic)
Frequency response 100Hz - 18kHz
Output power : rms 60W
Alarm output Fog, siren & alert generator
