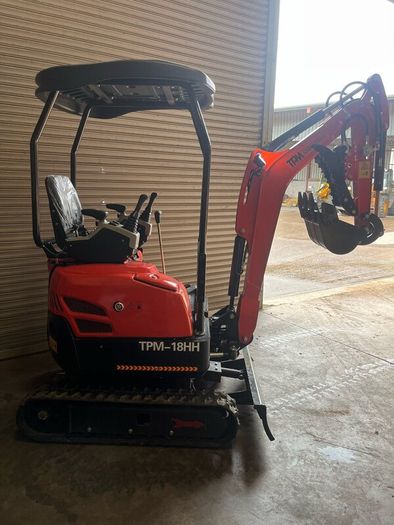

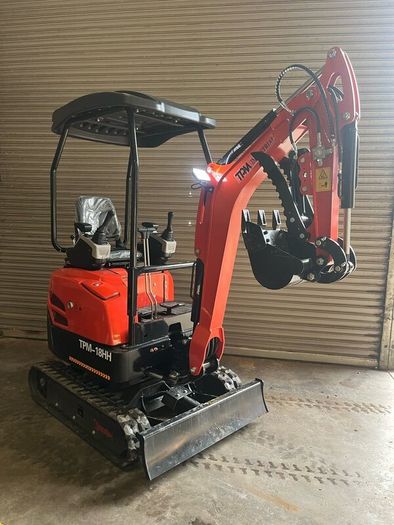

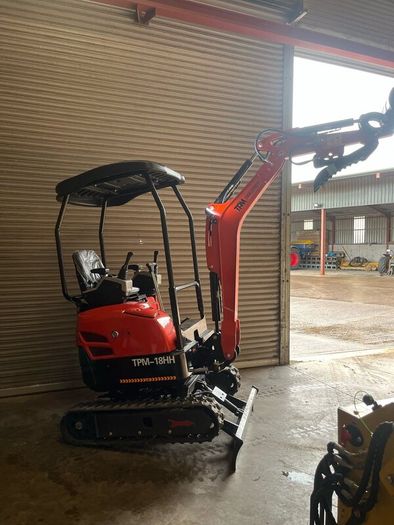

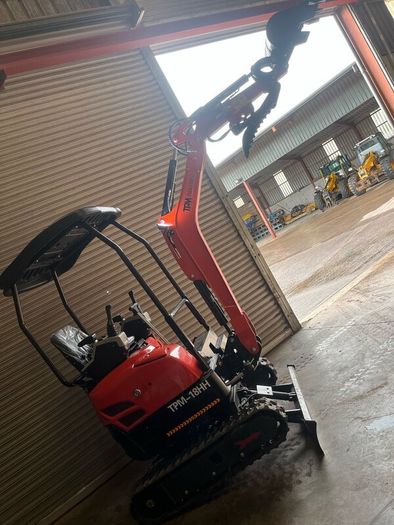

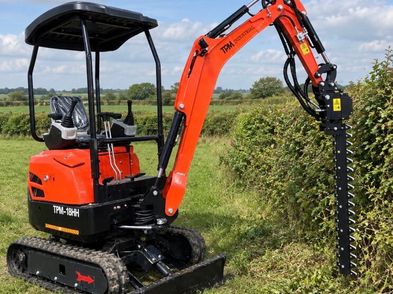

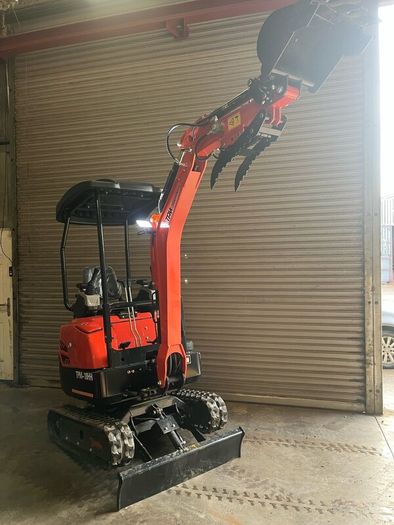

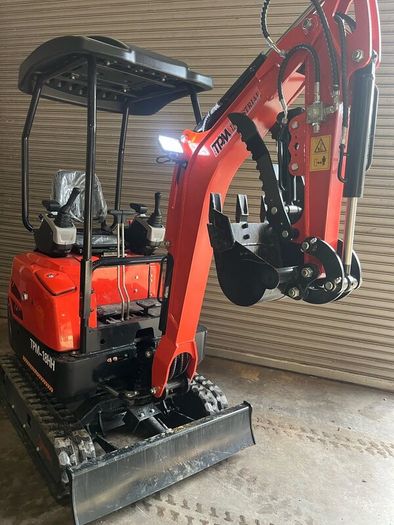

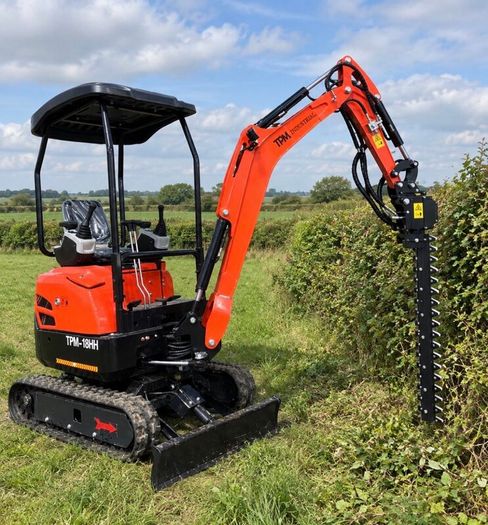

TPM-18HH micro digger Briggs & Stratton engine

Specs
Basic Performance:
Machine Weight: Canopy 950 kg
Operation Mode: Mechanical Handle
Bucket Capacity: 0.025 m³
Travel Speed: 0-2.5 Km/h (Low/High)
Gradeability: 35%
Ground Pressure: 32 Kpa
Maximum Digging Radius: 2800 mm
Maximum Digging Depth: 1700 mm
Maximum Digging Height: 2710 mm
Maximum Unloading Height: 1850 mm
Body Dimensions:
Transport Length: 2140 mm
Chassis Width: 1100 mm
Transport Width: 930 mm
Transport Height with Canopy: 2180 mm
Ground Clearance of Upper Platform: 380 mm
Bucket Width: 400 mm
Dozer Blade Width: 1100 mm
Engine Specifications:
Brand: BRIGGS & STRATTON
Model: B&S 13.5HP
Maximum Horsepower: 13.5 ps
Maximum Power: 10 Kw
Maximum Speed: 3600 rpm
Displacement: 420 CC
Number of Cylinders: 1
Cooling Method: Air-cooled
Engine Oil Replacement Volume: 1.1 L
Fuel Type: Gasoline
Fuel Grade: 92#
Theoretical Fuel Consumption: 0.5-1.2 L/h
Hydraulic System:
Main Pump Type/Model: Gear Pump/06
Main Pump Brand: Tianjin
Rated Setting Pressure: 25 Mpa
Maximum Flow Rate of Main Pump: 23.4 L/min
Multi-Way Valve: 8-Way Multi-Valve
Multi-Way Valve Brand: Jiangsu JL
Rated Setting Pressure: 16 Mpa
Maximum Setting Pressure: 16 Mpa
Travel Hydraulic Motor Type: BM6K-315
Travel Motor Brand: Taiheng
Motor Displacement: 315
Swing Hydraulic Motor Type: BM2-315
Displacement: 315
Tension Method: Mechanical Tension
Track Details:
Rubber Track: 180x72x37 (Width * Pitch * Number of Links)
Rubber Block: Yes
Tank Capacities:
Fuel Tank: 6.6 L
Hydraulic Oil Tank: 18 L

Warranty
Manufacturer's Warranty included

1 year warranty on machine
Warranty does not cover normal wear and tear of damage from misuse
Contact customer service for warranty claims and suport

✅Vat can be zero rated with a genuine ROI vat number

£5580 including vat


☎️0️⃣7️⃣7️⃣5️⃣4️⃣6️⃣4️⃣8️⃣9️⃣0️⃣0️⃣ty

Machinery type: Excavators
Make: Other
