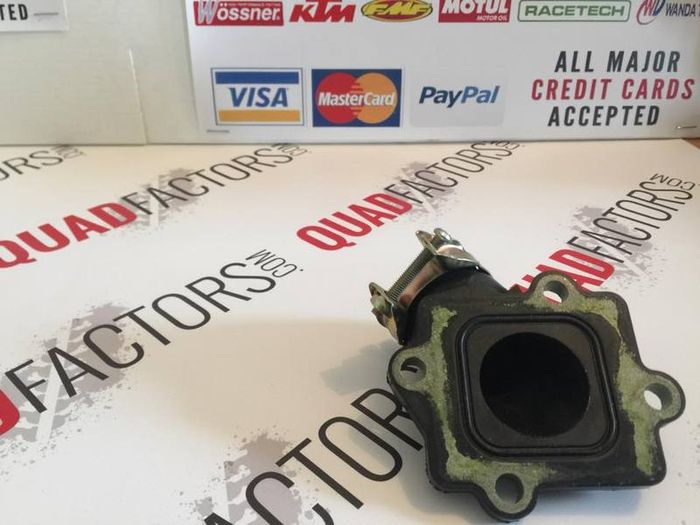

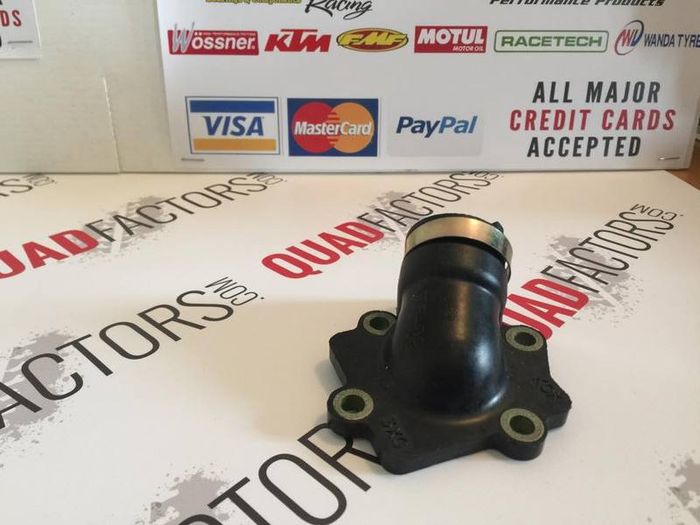

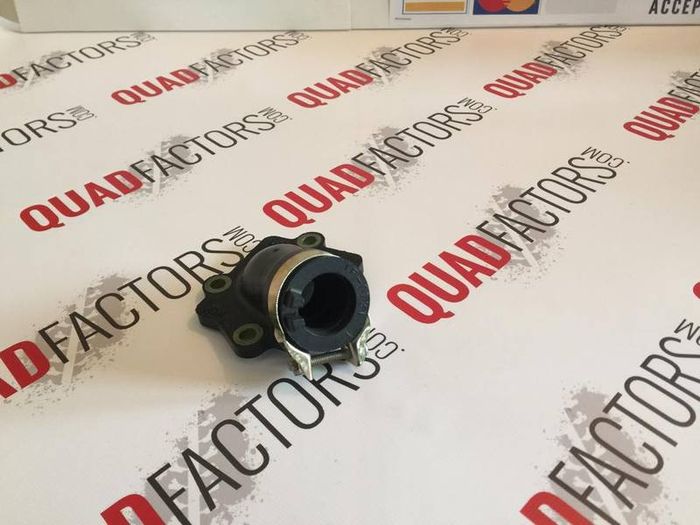

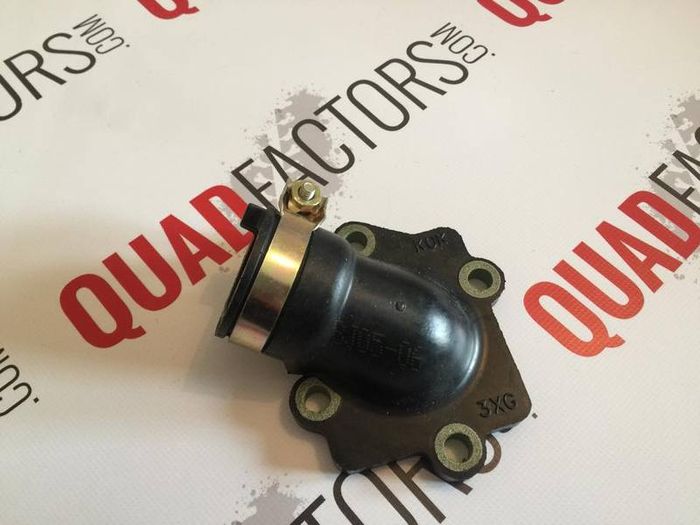

Inlet Manifold Compatible With Apache RLX 50cc 100cc UNILLI QUADZILLA

Inlet manifold plus gasket for 2 stroke 50cc and 100cc quad bike ATV engines
Compatible with pre-2008 Apache RLX 50cc and 100cc
May also fit some similar Aeon, Quadzilla and many other models.
Brands such as Quazilla, Hornet, Aeon Cobra, TGB all use this engine so it may well fit lots of bikes and quads
Quick Code QF26450
Condition New
Diameter of Fixing Hole(s) 62 mm / 2.44 inches
Inner Diameter at Clip End 22.75 mm / 0.9 inches
Inner Diameter at Flat Side 27.6 mm / 1.09 inches
Length of Flat Side (Excluding Fixing Hole Sections) 57.75 mm / 2.27 inches
Width of Flat Side (Excluding Fixing Hole Sections) 52 mm / 2.05 inches
Distance Between Fixing Holes (Lengthways, From One Side to the Other, Centre of Eye to Centre of Eye) 62 mm / 2.44 inches
Distance Between Fixing Holes (Widthways, From One Side to the Other, Centre of Eye to Centre of Eye) 55.5 mm / 2.19 inches
