Drifter Gokart 160cc & 200cc & Honda GSX3000 GX140 Engine Carburettor

Key Features

A standard replacement for GSX3000 generator engines
This carburettor is found on lots of machinery from Drifter 160cc and 200cc gokarts to whacker plates and water pumps
Incorporates a manual choke and drainable float chamber
An extremely reliable component
A QUADFACTORS branded part
Full Description


Dimensions

Inner diameter of air intake: 23.7 mm (0.9 inches)
Inner diameter of outlet: 17.8 mm (0.7 inches)
Diameter of outlet fixing holes: 7 mm (0.28 inches)
Distance between outlet fixing holes (centre of eye to centre of eye): 43 mm (1.7 inches)
Overall height: 108 mm (4.2 inches)
Outer diameter of fuel intake (thinnest section): 5.25 mm (0.2 inches)
This 160cc carburettor is one of a wide range that we sell, this particular item suits Drifter 160cc and 200cc go karts.

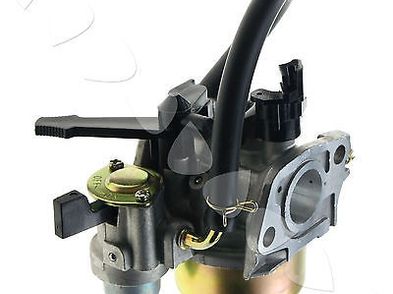

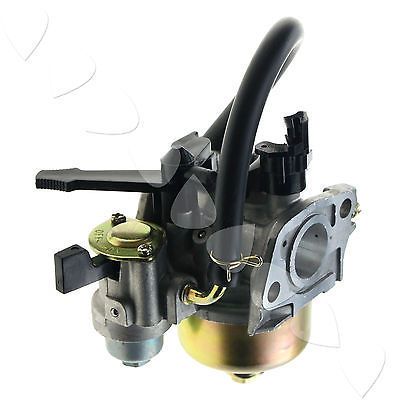

Buyers will receive one complete carburettor as pictured. Carburettors do not come with air filters gaskets or inlet manifolds unless they are pictured. The choke lever is located on the right when fitted. Please measure your old carburettor prior to purchase to ensure you order the right type for your machine. Things to check are the connection size of the inlet manifold (the joint between engine and carburettor), the size of the air filter connection and the manual choke location (unless its automatic choke).

Carburettors are the brains of engines. Faults with carburettors will produce running issues ranging from poor idling to poor revving out with a whole host of issues in between. Increasing the size of your carburettor will generally enable your engine to work faster, and create more power.

Key Features

Most of the carburettors we sell are Japanese precision engineered to ensure optimum performance and reliability
All carburettors include brass jets for smooth fuel flow
All carburettors are pre tested by our supplier to ensure they work once received
Which machines do these parts fit?

This carburettor fits drifter 160cc go karts. Many Chinese parts crossover to fit other engines so please check the dimensions and pictures to confirm its suitability for other models.
