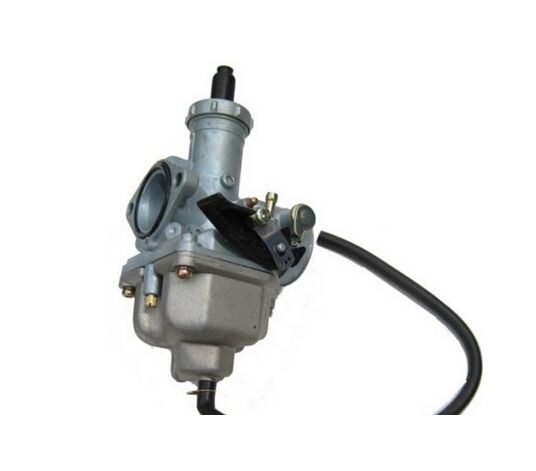

Atv150/200/250 Quad Carburettor 30mm

PLEASE NOTE that we measure our carburettors via the inner diameter of the outlet

Quick Code QF14402
Condition New
Outer Diameter of Air Filter Connection Point (excluding lip) 41.75 mm / 1.64 inches
Overall Width 76 mm / 2.99 inches
Overall Height 146.5 mm / 5.77 inches
Diameter of Fixing Hole(s) 6 mm / 0.24 inches
Inner Diameter of Chamber 22 mm / 0.87 inches
Inner Diameter of Air Intake 39 mm / 1.54 inches
Inner Diameter of Outlet 30 mm / 1.18 inches
Distance Between Fixing Holes (Centre of Eye to Centre of Eye) 47.45 mm / 1.87 inches
Length (From Intake to Outlet) 79.5 mm / 3.13 inches

his is a generic carburettor for 200cc to 250c quad bikes. 24mm is the chamber diameter inside the scew top cap.

When fitted, the choke lever is on the right hand side of the carb.

Features a three stage choke setting - open / half open / close
