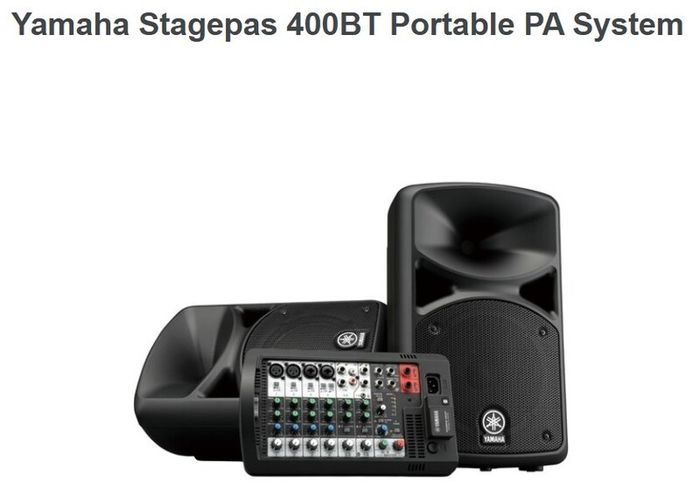

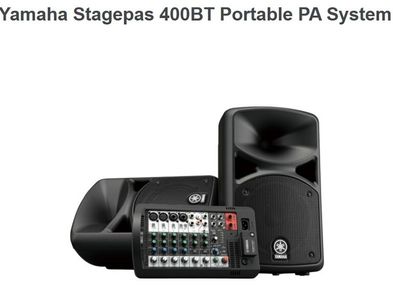

Yamaha Stagepas 400BT Portable PA System

Full Description
High-performance audio delivery
The Yamaha Stagepas 400BT is engineered to provide high-quality sound with a 400-watt power output, driving two 8" speakers that ensure rich, powerful audio coverage. The speakers, combined with a 1" voice coil compression driver, produce clear and vibrant sound ideal for both musical performances and public speaking.

Streamlined setup and operation
This PA system includes a user-friendly 8-channel mixer that supports a variety of input types, including 4 mono/line and 4 mono/2 stereo line inputs. The mixer is detachable, offering flexibility in setup and use. With features like Hi-Z inputs and phantom power, it accommodates a wide range of microphones and instruments.

Advanced sound shaping tools
Enhance your audio with the onboard SPX digital reverbs, which offer four types of reverb settings that can be adjusted with a single knob for ease of use. The 1-Knob Master EQ allows for rapid adjustments to match the acoustic environment, enhancing the overall sound quality with a virtual bass boost.

Comprehensive connectivity
The Stagepas 400BT supports Bluetooth audio streaming, allowing for wireless connection to smartphones or tablets. This feature is perfect for playing backing tracks or setting the atmosphere at events. Additionally, the system's versatility is extended with switchable stereo/mono inputs, providing flexibility to adapt to different performance requirements.

Durable and portable design
Designed for mobility, the Stagepas 400BT features a rugged construction that's built to withstand the demands of travel and frequent use. The lightweight design and ergonomic handles make transportation effortless, ideal for performers and presenters who require a reliable PA system that's easy to move and set up.

Feedback suppression and expandability
Avoid the common pitfalls of live sound reinforcement with the built-in feedback suppressor that keeps the audio clear and professional. For larger venues or more complex audio setups, the system offers monitor and subwoofer outputs, enabling the addition of extra speakers for more expansive speaker systems.

Features
All-in-one portable PA system
Delivers 400W of power in a single compact system
Attractive and compact package with incredible portability
Two lightweight speakers with a detachable mixer
Includes a pair of speaker cables and power cord
Intuitive design that can be set up and ready to go in seconds
Perfect for a huge variety of environments and applications
Bluetooth® compatible for wireless audio streaming
SPX digital reverb with four different high-quality settings
1-Knob Master EQ™ for instant mastery of your mix
Switchable feedback suppressor automatically removes feedback
Dedicated 2-band EQ for each channel
Hi-Z switch on CH4 for connecting acoustic-electric guitars and basses
Switchable stereo/mono inputs on CH5/6 and CH7/8
Phantom power allows you to utilise condenser microphones
Monitor OUT allows you to expand your FOH system
Subwoofer OUT lets you add a powered sub to your system
Intelligent DSP for high-quality, distortion-free sound at any volume level
Delivers high quality sound across a larger area of coverage
Advanced limiter circuits protect vital STAGEPAS components
Specifications
Speaker Type: 2-way bass-reflex speakers
Frequency Range: 55Hz - 20kHz (-10dB)
Nominal Coverage: 90° x 60° (H x V)
LF Driver: 8'' / 20cm cone
HF Driver: 1'' / 2.54cm voice coil compression driver
Maximum Output Level: 125dB SPL / speaker (1m; on axis)
Amplifier Maximum Output Power at 4 Ohms:
Dynamic: 400W (200W + 200W)
Continuous: 360W (180W + 180W)
Channels: 8
Input Channel Functions:
Hi-Z switch (CH4)
ST/MONO switch (CH5/6 - 7/8)
Output Channel Functions:
Feedback suppressor
1-Knob Master EQ™
Inputs: 4 mono mic / line + 4 mono / 2 stereo line
Phantom Power: +30V (CH1, 2)
Outputs:
Speakers OUT (L, R)
Monitor OUT (L/MONO, R)
Subwoofer OUT (MONO) with auto HPF
Bluetooth: Bluetooth Ver.4.1, A2DP v1.2
Maximum Bluetooth Range: Approx. 10-metres
Foot Switch Input: For Reverb (foot switch not included)
EQ Bands:
High: High shelving, 8kHz
Low: Low shelving, 100Hz
DSP: SPX digital reverb (4 program, parameter control)
Floor Monitor Angle: 50°
Pole Socket: 34.8mm - 35.2mm pole socket with StageLok™
Handles: 1 x top (per speaker)
Power Requirements: 100V - 240V, 50Hz/60Hz
Power Consumption:
Idle: 30W
1/8 Power: 70W
Included Accessories:
Cover panel
Power cord, 2-metres
2 x Speaker cables, 6-metres
12 x Non-skid pads
2 x Ferrite cores
2 x Cable ties
Dimensions:
Speaker: 289mm x 472mm x 275mm (per speaker)
Mixer: 308mm x 180mm x 116mm
Weight: 18.3kg (7.7kg per speaker, 2.9kg mixer)
