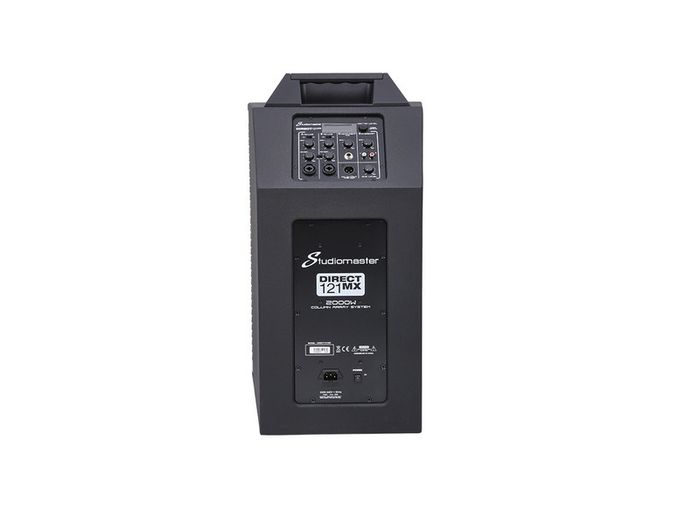

Studiomaster Direct 121mx - Black

DIRECT 121MX - BLACK
Studiomaster - Portable Sound System

Designed for DJs, small bands, presentations, education and houses of worship, the DIRECT MX series is an all in one column array PA solution with a powerful 2000W built-in amplifier, comprehensive 4 channel mixing, Bluetooth 5.0 playback (with TWS) and reverb effects on the input channels.

PRODUCT DESCRIPTION

Designed for DJs, small bands, presentations, education and houses of worship, the DIRECT MX series is an all in one column array PA solution with a powerful 2000W built-in amplifier, comprehensive 4 channel mixing, Bluetooth 5.0 playback (with TWS) and reverb effects on the input channels.

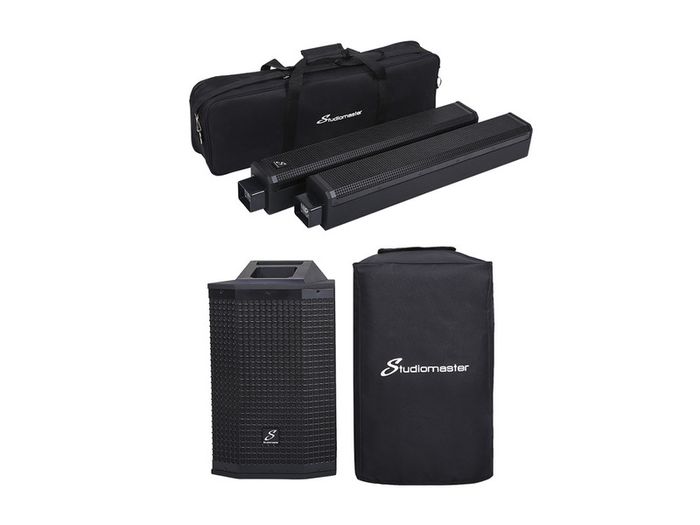

Capable of reproducing very low-end frequencies and clear, musical highs through the custom designed wood enclosures, that securely connect together with a unique internal connection, so you can have your PA set-up and ready to go in seconds.

All Direct models have 6 x 3 mid range transducers combined with a 1 compression driver to deliver clear highs and clarity of your vocals or instruments.

The 10 or 12 active sub bass gives a big punchy response capable of reproducing the lowest frequencies through its bass-reflex design.

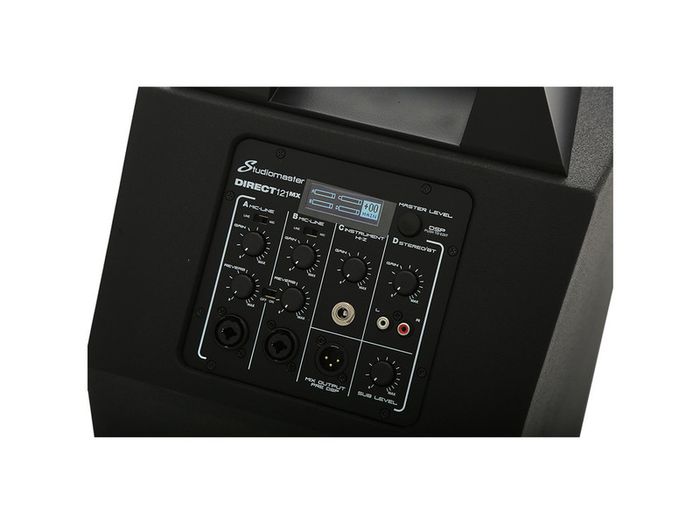

The DirectMX comes installed with a 4-channel dsp mixer, including 2 x switchable MIC/LINE inputs with gain and reverb controls, 1 x HI-Z instrument input, 1 x RCA / Bluetooth stereo input and an XLR line output. There is also an Independent SUB LEVEL control for quick bass adjustment. A Powerful 24-bit DSP interface with display allows for the adjustment of 3 operation modes: music, dj, speech. 3 band EQ with sweepable mid frequency and storable presets, digital gain control, high-pass filtering, dual-channel limiter, Digital delay for delay zones up to 100 m (in steps of 0.25 m) and Bluetooth connection, all controlled via a simple ONE CONTROL encoder. The DirectMX utilises Bluetooth 5.0 large range stereo Bluetooth playback with TWS (true wireless stereo).

No matter your application the DIRECT MX series gives you the connection options you need. The on-board 4 channel mixer comes with 2x MIC/Line inputs with a useful vocal reverb facility, a Hi-Z instrument input for connecting electric guitars and a stereo input for playback either through the phono connections or via Bluetooth 5.0. The DSP allows simple set-up with 3 preset systems: Music, DJ or Speech, along with 3 band master EQ and a useful output delay if using as a delay speaker in a larger system.
KEY FEATURES

Self-powered 3-way system for high definition sound (122 dB max.)
6 x 3 plus 1 x 1 precision transducers
120° x 30° ultra wide sound coverage (HxV)
12 subwoofer for deep and powerful lows
Class-D amplifier modules for low distortion and excellent sound, powerful SMPS (100 V – 240 V)
2000w peak power
Extensive 4-channel mixer. 2 x MIC/LINE input (adjustable), 1 x RCA stereo input, 1 x HI-Z instrument input. 2 x XLR line ouput, 1 x SUB LEVEL controller for quick access
Powerful 24-bit DSP with display, ONE CONTROL encoder, storable presets, digital gain control, delay, dual-channel limiter and equalization
Bluetooth stereo playback
