OBDLink CX for BMW/Mini BimmerLink Bimmercode

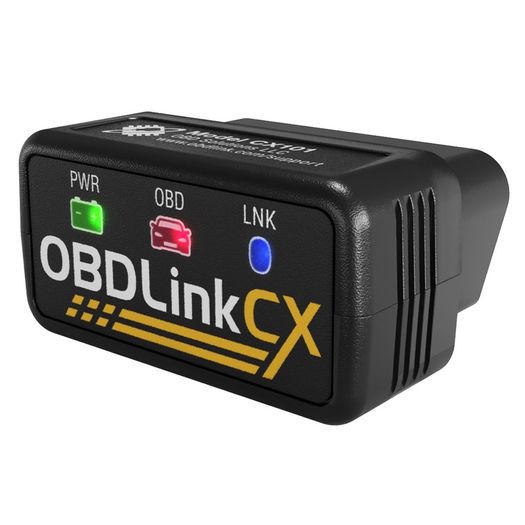

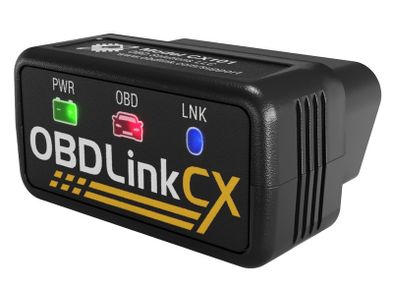

OBDLINK CX
Made for BimmerCode and recommended by the BimmerCode team
100% coverage of BimmerCode Vehicles and Features
Easy In-App Pairing to iOS and Android Devices
Rock-Solid Connection avoids data corruption, won’t brick your ECU
Free OBDLink App monitor live parameters, perform diagnostics, clear check-engine light
BatterySaver™ Technology low power mode
Specifications
Supported Platforms iOS, Android
Connection
Bluetooth 5.1 BLE
OBD Protocols
ISO 15765 (CAN for vehicle diagnostics)
SAE J1939 (heavy duty vehicles)
ISO 11898 (raw CAN)
ISO 9141 (Asian, European, Chrysler vehicles)
ISO 14230 (Keyword Protocol 2000)
Operating Voltage 12V automotive systems (8–18V operating range)
Overvoltage Protection Up to 100V
Operating Current 55 mA
BatterySaver™ Low Power Mode <1 mA
Device Weight .7 oz (20 g)
Dimensions 1.8 X 0.9 X 1.3 in (46 x 23 x 33 mm)
Operating Temperature -4º to 131º F (-20º to 55º C)
Operating Humidity 10 to 85% (non-condens
