Lvd Ppeb 80/20 Cnc Press Brake 4 Axis

2001 LVD PPEB 80/20 CNC Press Brake – 4 Axis – LVD 4C CNC Control

Used 2001 LVD PPEB 80/20 CNC hydraulic press brake for sale in Ireland. 4-axis CNC press brake with LVD 4C CNC control, Y1, Y2, X and R axes, laser guards, foot pedal, quick-release top tool clamps and rear safety doors. No tooling included.

Machine Make: LVD
Machine Model: PPEB 80/20
Machine Type: CNC Pressbrake
Machine Capacity: 2000 x 80T
Machine Year: 2001
Machine Control: LVD 4C Control

Machine Description

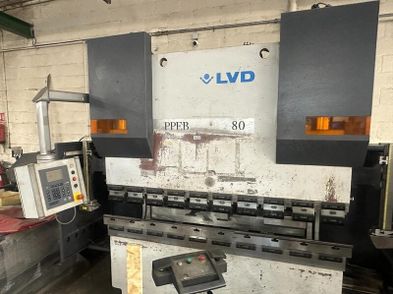

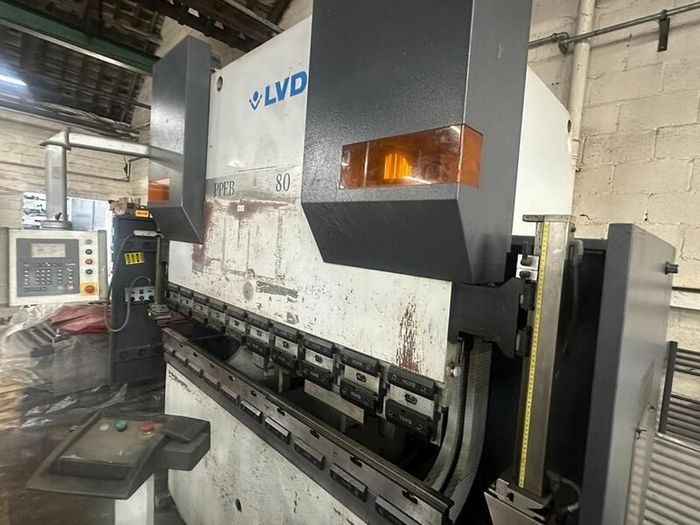

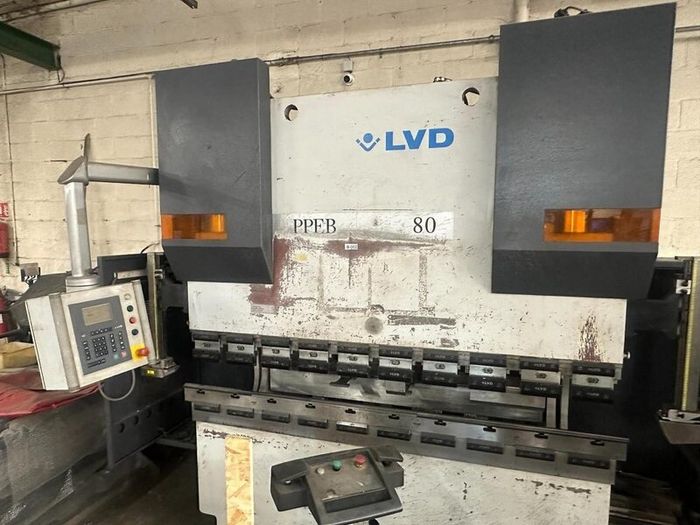

2001 LVD PPEB 80/20 CNC Press Brake, a quality 4-axis CNC hydraulic press brake with 80 tonne pressing force and 2000 mm working length. This compact CNC press brake is ideal for precision sheet metal bending, fabrication workshops, engineering companies, maintenance departments and subcontract manufacturing.

This LVD PPEB 80/20 is fitted with an LVD 4C CNC Control and has 4 CNC controlled axes: Y1, Y2, X and R, giving accurate ram control and programmable backgauge positioning for repeatable bending work.
The machine is in good condition and comes complete with laser guards, foot pedal, quick-release top tool clamps and rear safety doors.

Key Features
Axis configuration: 4 Axis
CNC controlled axes: Y1, Y2, X and R

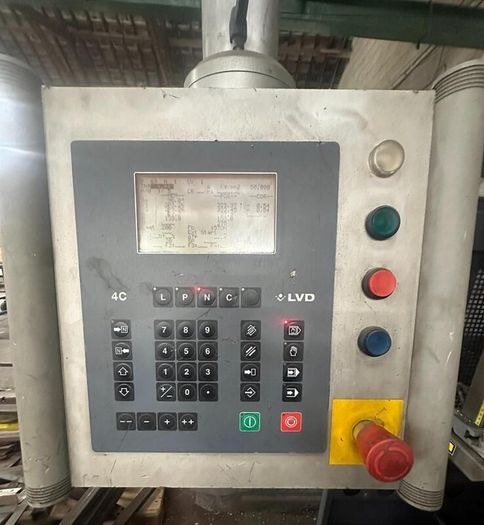

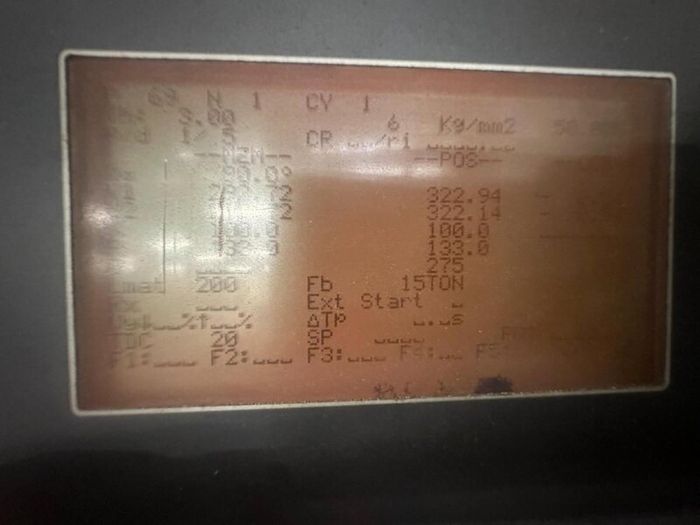

Control: LVD 4C CNC Control
Condition: Good condition

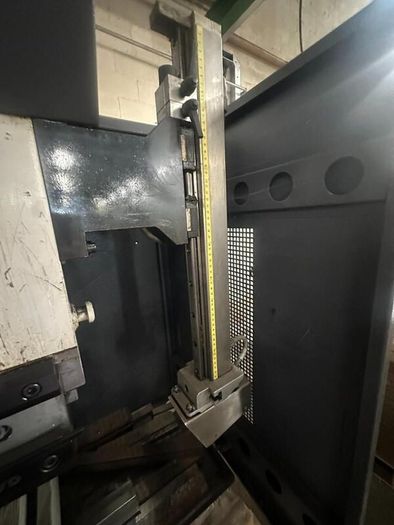

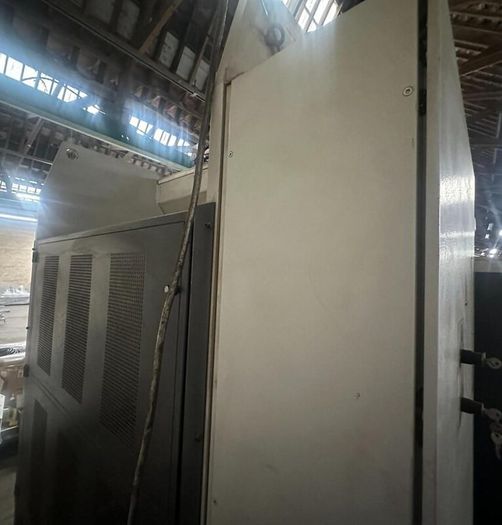

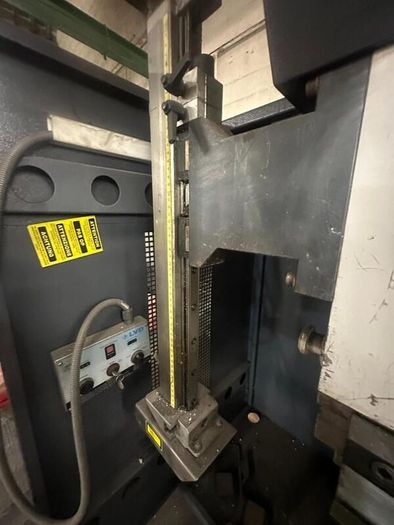

Safety: Laser guards and rear safety doors

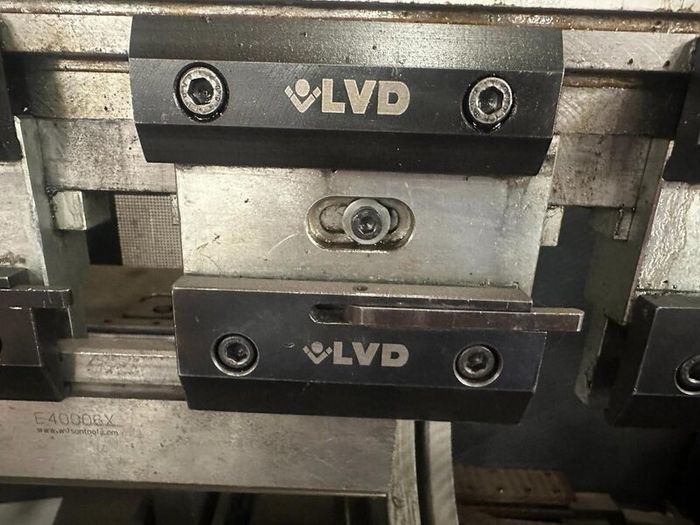

Clamping: Quick-release top tool clamps
Includes: Foot pedal

Technical Specifications
Model: PPEB 80/20
Pressing force: 80 tonnes
Working length: 2000 mm
Distance between housings: 1550 mm
Stroke: 200 mm
Distance table to ram: 400mm
Gap / throat: 400 mm
Table width: 120 mm
Approach speed: 130 mm/s
Working speed: 10 mm/s
Return speed: 135 mm/s
Power: 12.5 kW
Oil capacity: 125 litres
Machine Weight: 5700kg

Notes: *Specifications are given in good faith but not guaranteed*
