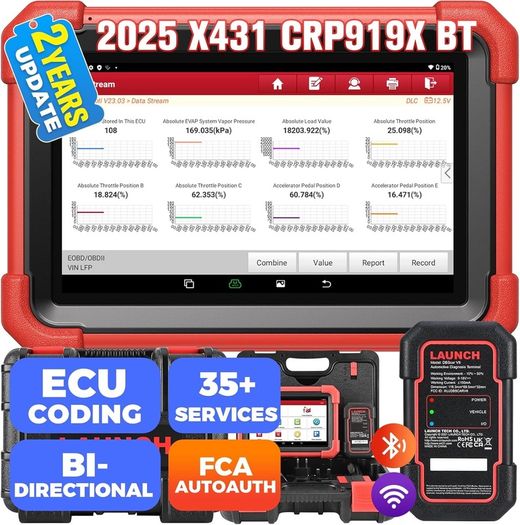

LAUNCH X431 CRP919x BT / bluetooth Car Diagnostic Tool OBD2 Scanner DBScar VII VCI Auto with Active Test ECU Coding CANFD DOIP 35+Reset

Available

Available

https://youtu.be/Ef70JaCnWWM?si=_7CVWd9VIVPxkYQa

https://youtu.be/zs5REEYpG-0?si=1r2IgHwzL0T2ZeE7

Product Description
LAUNCH X431 CRP919XBT Upgrade from Other CRP Scanners, includes a DBSCar VII VCI connector, It come with MTK's chip + doubled memory & battery capacity 5X faster & smoother, 5X-boosted running operation, tons of next-level features, wider car coverage
Support Android 10.0 ✅4G+64G ✅2-Year Free Update ✅2.4G & 5GHz Dual WiFi ✅Wireless Diagnoses ✅2.0 GHz 4-Core CPU✅Bi-directional Control ✅CANFD&DOIP ✅FCA AutoAut✅ECU Coding✅35+ Resets

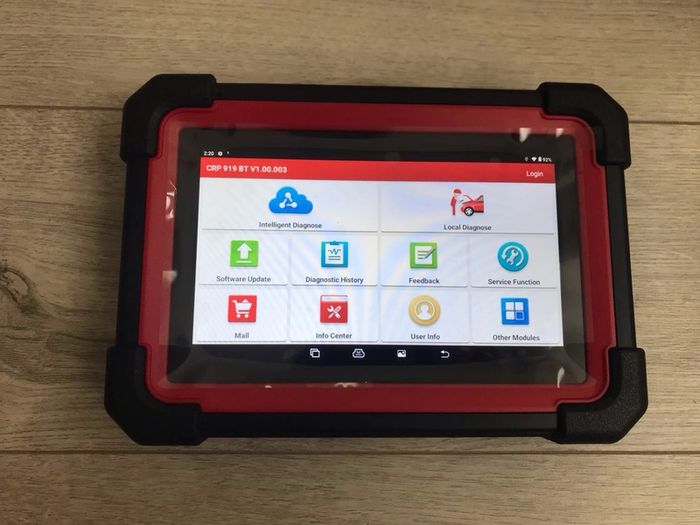

LAUNCH X431 CRP919XBT Wireless Diagnostic Scanner
Ship from EU & Fast Delivery and No Tax！
CRP919XBT OBD2 Scanner Tools Highlight
From Hardware :
AUNCH X431 CRP919XBT, upgraded from CRP919X, includes a VCI for wireless data transmission (3Mbps max)
MTK's chip + doubled memory & battery capacity ensure 5X faster & smoother navigation than OBD2 scanner diagnostic tools in the same category.
5X-speed Specifications: 4-core 2.0GHz processor, mature Android 10.0, 4GB+64G massive memory, 6300mAh battery, 8MP camera and much better diagnostic response; using this scan tool is a breeze.
8-in-1 Data Stream: Capture real-time data from up to eight vehicle parameters simultaneously. Gain valuable insights into your vehicle's performance, identify hidden issues, and make informed decisions for optimal maintenance and repairs.
8MP Rear Camera: Capture visual evidence and document your diagnostics with an 8-megapixel rear camera. Enhance your communication, collaborate effectively, and ensure accurate record-keeping for better analysis and streamlined repairs.
6300mAh Battery Capacity: Keep your diagnostic sessions going strong with a high-capacity 6300mAh battery. Enjoy exteneded usage time without interruptions, ensuring uninterrupted focus and productivity.
Android 10.0 OS: Discover a user-friendly interface and limitless possibilities with the Android 10.0 operating system. Enjoy seamless navigation, access to a wealth of compatible apps, and a familiar experience that enhances productivity.
4G+64GB: Unleash the power of abundant storage and lightning-quick connectivity. With 64GB of storage and 4G capabilities, you'll ffortlessly handle vast amounts of diagnostic data, ensuring smooth operation and efficient performance.
From Software:
DoIP & CAN FD Compatible
2 Years Free update, One-click WiFi Updating, After that 193EUR/Per year
And with integrated AutoAuth, you can diagnose 2018+ FCA SGW-equipped cars without separate adapters.
Huge Upgrade from Other CRP Scanners: Share almost the same functions as powerful LAUNCH X431 scanners
Optimized combination of LAUNCH CRP123X/ CRP129X/ CRP Touch Pro Elite/ CR909X, Same Diagnostic function as X431 PROS MINI
Come With DBSCar VII VCI connector instead of a connection cable. You can be at work bench or any location around vehicle while running diagnostics.
With this DBSCar VII , this CRP919XBT scanner supports new protocols of tomorrow: CANFD for 2020-now GM&Chrysler Models; DoIP for Volvo, Land Rover/Jaguar, BMW F/G Chassis.
Complete Database: Cover 99% of vehicles from 150+ diverse brands / 10,000+ models (1996-2024) for module resets, relearns, bi-directions capabilities, and all system diagnostics.
Bluetooth Wireless Connection: Makes it easier to move around your workshop during the diagnostics without any cable entangled; up to 33ft. (10m) wireless range to operate this car scanner remotely.
Support Multi-language: English, French, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian, Serbian, Finnish, Swedish etc. Path: “Home -- Other Modules -- Settings -- Systems -- Language & Input -- Languages.”
Note:
Global Version Need to Pay More 50EUR, it works in any country.
EU version is cheaper and it works in all European countries, pls choose this version if you are from Europe/UK
The EU Version is special for Europe Customers, it is cheaper than Global version. The packing list and functions of them is same.
Extended Modules
Launch motorcycle connector kit: diagnose motorcycles
S2-2 Sensorbox: diagnosing/testing/simulating most vehicle sensor faults
Launch X431 DoIP 16Pin Cable DBScar VII could work with Doip protocols cars
BST360 battery test.(For Battery Cranking system Test, Battery Charging system Test, Battery Health Test)
TPMS Tool Not only can you use it to activate the sensor's ID, tire pressure, sensor frequency, tire temperature, and battery status
O2-2 Scopebox: detects high level faults on various electrical components, such as sensors, acturators and circuits
Used With Launch X431 key programmer: generate/copy remote transponder functions. (Direct connection, don't need OTG converter).
Launch VSP-600 Video Scope: Check unseen parts and give you a direct image of the engine, gears, compressors, headers and valves, and body components
CRP919XBT OBD2 Scanner features

LAUNCH X431 CRP919XBT New Updated DBSCAR VII VCI 2
LAUNCH X431 CRP919X BT OBD2 Scanner Main functions
Autoauth for FCA SGW: Experience hassle-free diagnostics on FCA (Chrysler, Jeep, Dodge, and Ram) vehicles with the Autoauth feature for FCA SGW. Say goodbye to frustrating security gateway limitations and gain seamless access to essential diagnostic functions. This added convennience saves you time and enhances your diagnostic efficiency.
Bluetooth connection & Alterative USB connection: Experience the freedom of wireless connectivity with the convenience of a reliable USB connection. Stay connected to your vehicle effortlessly, enabling quick and efficient diagnostics that save you time and hassle.
More accurate diagnostic data:LAUNCH has a more complete database,diagnosing 5 million cars per month, and outputting 10 million diagnostic reports. LAUNCH’s diagnostic data is more accurate, making it a perfect tool for any modern car repair shop.
Full Systems Diagnose: Supporting over 10,000 vehicles worldwide, this powerful diagnostic tool covers a wide range of car brands and models. Whether your vehicle is OBD1, OBD2, EOBD, or JOBD compliant, the CRP919X BT has got you covered. From passenger cars to 12V pickup trucks and SUVs produced between 1996 and 2024, this tool provides dealership-level diagnostics that allow you to delve into all available modules.With the CRP919X BT, you can perform a range of essential diagnostic functions, including reading and clearing fault codes, viewing live data streams, recording and playing back data for in-depth analysis, and retrieving module information. Additionally, the active test feature enables you to check the work status of various modules such as ABS, ECM, BCM, SRS, TCM, TPMS, and more.This diagnostic tool does not have IP limitations, ensuring that you can use it freely
ECU Online Coding & Offline Pro-gramming: Unlock the power of customization with online coding and offline pro-gramming capabilities. Personalize your vehicle's settings and stay up-to-date with the la-test software updates, ensuring optimal performance and enhanced driving experience.
Bi-directional Control for Active Car Tests: Take full control of your vehicle like never before. Seamlessly actuate and test components in both directions, enabling precise calibration, advanced troubleshooting, and cost-effective repairs. Remote pro-gramming: Say goodbye to the inconvenience of lost or damaged remote. Gain the ability to pro-gram new remote or reprogram existing ones, ensuring secure access to your vehicle and peace of mind.
Guided Function for VAG Vehicles: Exclusive to VAG (Volkswagen, Audi, Skoda, and Seat) vehicles, the Guided Function provides step-by-step repair guidance for technicians and individuals alike. Avoid potential car fault settings caused by incorrect operations and ensure precise and accurate repairs. This invaluable feature enhances your diagnostic accuracy and eliminates guesswork, saving you time and preventing costly mistakes.
35+ services & Easy Vehicle Matching: Oil Reset, IMMO Reset, ABS Bleeding, Electronic Throttle Reset, Gearbox Reset, Battery Matching, and other special services are required by every professional mechanic on a daily basis. The CRP919XBT cool car accessories are equipped with 35+ maintenance services to handle the most complex vehicles. It covers almost all major car brands compared to other scan tools on the market (x-tool d8). For example, in LAUNCH CRP919XBT, Hyundai special functions have a coverage rate of over 99%, but other scan tool lacks special functions or has fewer special functions in some vehicle systems like ENG, ABS, AB.
CANFD & DoIP: Experience the future of diagnostics with our la-test innovation - the ability to seamlessly connect with CAN FD protocol cars, with the option to acquire the DOIP Connector for expanded capabilities. These groundbreaking protocols revolutionize vehicle communication, achieving up to 2x faster communication between modules. Benefit from dramatically increased data rates and unparalleled diagnostic speeds that surpass all previous standards.It's designed for compatibility with the la-test GM vehicles from 2020 onwards. But the scope doesn't end there. Unlock diagnostic potential across a range of models, including BMW F and G Chassis, along with Jaguar and Land Rover vehicles from 2017 onwards, as well as Volvo vehicles manufactured after 2018.
One-click AutoVIN & AutoScan with Diagnosis Report: One of the standout features of the CRP919X obd2 scanner diagnostic tool is the one-click AutoVIN & AutoScan function. This feature allows you to quickly and easily scan all diagnosable ECUs with just one click, and identify any problems hidden in your vehicle's PCM, ECM, EPS, PDM, BCM, TPMS and more. Plus, the scan tool will automatically generate diagnosis reports that you can download, share, and print for further analysis. AutoVIN & AutoScan (2006+) can automatically read VIN data and scanall system modules to greatly speed up your system-scanning process, 3X faster!
Bluetooth connection & Alternative USB connection: Experience the freedom of wireless connectivity with the convenience of a reliable USB connection. Stay connected to your vehicle effortlessly, enabling quick and efficient diagnostics that save you time and hassle.
More accurate diagnostic data: LAUNCH has a more complete database,diagnosing 5 million cars per month, and outputting 10 million diagnostic reports. LAUNCH’s diagnostic data is more accurate, making it a perfect tool for any modern car repair shop.
LAUNCH X431 CRP919XBT Add-on Features: Many innovative features in this LAUNCH scanner will help you win more business: “Feedback” provides customized repair suggestions from LAUNCH’s certified professionals; “Repair Info” includes operating skills, DTC help, automotive technology handbook, repair case to ease your workload; among other useful modules: compatible vehicles, user manual, Q&A, tablet settings etc., to make your job easier.
Expand Features with Tools ：LAUNCH CRP919XBT can work with battery tester / electrical system analyzer BST360 to get a thorough battery, cranking, charging test, and have real-time voltage monitoring; also can pair with endoscope VSP600 for visual inspection in hard-to-reach areas with high-quality imaging, flexible cable, and adjustable LED lighting for convenience. All is sold separately.
How to Use X431 CRP919X
How to Make Coding Changes on Porsche Vehicles with Launch CRP919X: Check Here >>>
Launch CRP919E CRP919X CRP359 Program Exception Solution: Check Here >>>
What is the difference between Launch X431 CRP series(CRP909E, CRP919E, CRP919X): Check Here >>>
LAUNCH CRP series product comparison: CRP123 vs CRP129 vs CRP919: Check Here >>>

Why you choose LAUNCH X431 CRP919X BT Scanner
CRP919XBT OBD2 Scanner WIRELESS DIAGNOSIS
CRP919XBT OBD2 Scanner WIRELESS DIAGNOSIS 2

Imagine you're a busy automotive technician working in a bustling repair shop. A customer's car arrives with a complex electrical issue. With the LAUNCH X431 CRP919X BT's Bluetooth connectivity, you swiftly connect wirelessly to the vehicle. As you maneuver around the shop, diagnosing the car's systems, you easily access and analyze real-time data on your tablet. No more frustrating cable limitations or time wasted on cable connections. The Bluetooth connectivity ensures a seamless and convenient diagnostic process, allowing you to efficiently pinpoint the problem and provide swift solutions.

>>>Enhance your diagnostics and matching experience with the power of USB Type A, USB Type C connectors, and the cutting-edge DBSCar VII VCI connector. This dynamic combination guarantes a faster and more stable diagnostic process. The DBSCar VII connector stands out with its built-in indicator lights, offering an intuitive and user-friendly interface for effortless navigation.Unlike ordinary Launch adapters, the DBSCar VII shines as the pinnacle of value. It reigns as the sole advanced and distinctive connector available in the market for the la-test scanner from Launch. Elevate your diagnostic efficiency with the unparalleled capabilities of the DBSCar VII – your gateway to seamless diagnostics and un-matched performance.

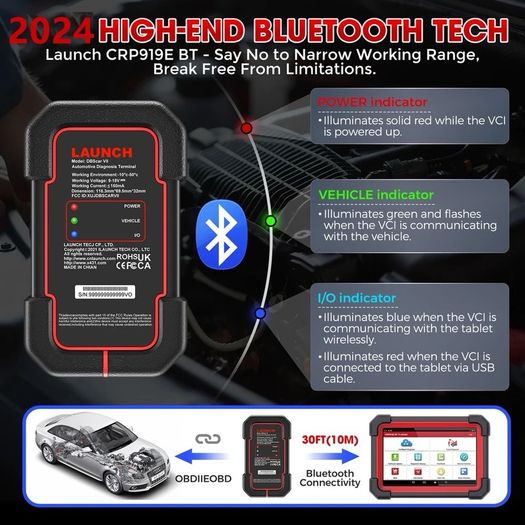

The DBSCar VII VCI connector feed-backs the working status through the indicator light：

—A blue light indicates that the VCI is communicating with the tablet computer wirelessly.

—A red light indicates that the VCI is connected to the tablet.

—A blinking green light indicates that the VCI is communicating with the vehicle.

>>>Working seamlessly with your LAUNCH X431 CRP919X BT diagnostic tool, Bluetooth connectivity allows for wireless communication between the tool and your vehicle's onboard systems.

>>>Enjoy the efficiency of near-instantaneous sensor readings, fault code retrieval, and system information access, thanks to the remarkable data transfer rate of up to 3 Mbps.

>>>By establishing a secure and reliable connection, it enables the transfer of diagnostic data, including live sensor readings, fault codes, and system information.You can perform diagnostics without the constraints of physical cables. This wireless connection simplifies the diagnostic process, providing freedom of movement around the vehicle and easy access to diagnostic functions.
Functions of LAUNCH CRP919X BT
1.Active Test ( Bi-Directional Test)
LAUNCH CRP919XBT is a full bidirectional scan tool as LAUNCH X431 scanners. By operating this LAUNCH scanner directly to send commands, you can test individual components for faults without using the vehicle’s own controls. This is great for identifying malfunctioning sensors, valves, and components. Quick and precise. 3X faster than testing manually.

Also Refer As – Functional Tests, Actuator Tests, Inspection Tests, System Tests or the like. Reinitialization and repr0gramming can be included in the list of bidirectional controls.
Who Is It For? – A must for any auto professional, whether you own a service or repair shop or are a DIY car enthusiast. An accurate and fast bi-directional diagnostic scan tool for all vehicles is designed to smooth your workflow.
Benefits – can significantly reduce the diagnostic effort and easily see if the issue is happening in the controls or within the vehicle system.
Complete Coverage – can active 99% vehicle-specific systems, subsystems, and components such as relays, coils, injectors, and actuators like “Adaptive Headlamp Adjustment, A/C Configuration, Window Wipers Settings, Doors Turn On/Off, Sunroof Switch On/Off, Mirrors Folding/Unfolding, Active Tests on Interior Lights, Inside Mirrors, Door Lo-cking, Steering Wheel Heating, Windows, Horn, ABS Pump Motor, Cooling Fan, Relays, etc.”
Using Scenario – Model: T-oyota Prius. Problem: The fan that cools the hybrid battery isn’t working. Testing Procedure: Using this scanner for car to command the fan to turn on. After turning the fan on, if the scan tool shows the fan speed is 0 RPM, it means that despite having power the fan cannot get turning at all. This helped you diagnose some corroded fan wiring quickly without tearing the vehicle apart, saving much effort and time.
More Applications – Injector Buzz Test, Oil Pressure Control Test
Cooling Fan Test, Window/Wiper/Sunroof/Door L-ock/Headlamp Test, Interior Lighting Test
EVAP Tests: EVAP Purge/Seal HVAC Calibration, Vehicle Level Position Calibration, Modulate Throttle
Cycling A/C Clutch Relay, Cycling ABS Motor Pump, Cycling Cylinder
REMINDER: It is compatible with 99% car models on the market, but the menu varies by make/model/year.

LAUNCH CRP919X BT Bi-Directional Test function
LAUNCH CRP919X BT Bi-Directional Test function

2. 35+ commonly used repair & maintenance services, keep creasing
LAUNCH CRP919XBT is a complete all-system diagnostic tool that you can use to perform all crucial advanced service functions. This is super beneficial for auto technicians and advanced DIYers. You can use it to solve almost any problems that cars typically face.

Benefits – The independent function module acts as a shortcut menu access to help you quickly make 99% of daily car maintenance.
Advantages – This obd2 scanner gets nearly all initial adaptations, relearns, and resets. Meanwhile, it covers almost all major car brands compared to other scan tools on market (x-tool d8). For example, in LAUNCH CRP919XBT, Hyundai special functions have a coverage rate of over 99%, but other scan tool lacks special functions or has fewer special functions in some vehicle systems like ENG, ABS, AB.
Complete Functionality – Oil Reset, SAS, E-P-B, BMS Reset, D-P-F, ABS Bleeding, Immobilizer (basic), Gearbox Reset, Suspension Reset, Injector Coding, AFS Headlamp Reset, TPMS Reset (indirect), Gear Learning, ADBULE, A/F Reset, E-G-R Reset, Coolant Bleed, NOX Reset, Language Set, Transport Mode, Seat Calibration, Throttle Adaptation, Tyre Setting, Power Balance, Stop/Start, Window Calibration, AC System Relearn/Initialization, High Voltate Battery Diagnostics, GPF Reset, ICCS Reset, and more.
Applications
For Toyota: A/T Code Registration & Reset, Beam Axis Adjustment, Camera Axis Adjust, Check Mode, Height Offset, ID Information Display, Pilot Quantity Learning, Starter Exchange, Wireless Code Erasure …
For Honda: Deflation Warning System, SWS Initialization, EOL Learn Gear, EOL Learn Synchronizing In Sequence, HV Battery Diagnosis, Yaw Rate/Lateral Acceleration Sensor …
For For-d: Clear Crash Data Memory, Misfire Test, Relative Compression, (SCR) Emptying & Refill Activation & Parameter Reset & Visual Leak Check & Dosing Measurement Test & DEF Injector Cleaner …
For Ben-z: Abort Road Test, Towing Sensor, Rain/light Sensor, Enabling of engine start after the crash event, High-voltage component l-ock, Reset offset value of signal “Longitudinal Acceleration” …
For BM-W: Idle Speed, Injection Quantity Compensation, Write Service History, Simple Service Correction, Line Short Circuit Of FRM Reset, Folding Mirror Delay Time …
For VW/Au-di: High-voltage Restart, Activate/Deactivate Seat Belt Warning Device, Seat Belt Tensioner Control Module Basic Setting …
1.ABS Bleeding
When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

2.TPMS Reset
When due to the tire pressure is too low,tire leaks,tire pressure monitoring device is replaced or installed,tire is replaced and tire pressure sensor is damaged,The tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.

3.Oil Lamp Reset
Allows you to perform reset for a new calculation of Engine Oil life system once changed the oil.

4. Electronic Throttle Sensor Reset
To utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.

5.Injector Coding
After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

6. SAS Reset
It helps clear the faulty steering angle sensor memories to reset the steering angle and plays an important role in the steering angle sensor calibration.

7.Brake-pad Reset
To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement.

8.Gear Learning
Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.

9.IMMO Service
To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.

10.Battery Matching
Enables you to perform resetting operation on the monitoring unit of battery,in which the original low battery fault information will be cleared.

11.DPF Regeneration
It is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode. Specially works for Diesel Particulate Filter system with DPF.

12.EGR Adaption
This function is used to learn the EGR (Exhaust Gas Recirculation ) valve after it is clean or replaced.

13.Suspension Matching
When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, this function can adjust the body height sensor for level calibration.

14.NOx Sensor Reset
If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.

15.Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.

16.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory.

17.Stop-start Reset
This function is used to open or close the automatic Start/Stop function via setting the hidden function in ECU (The precondition is the vehicle equipped with hidden function and hardware support)

18. AC Initialization
AC system relearn/initialization must be performed when the vehicle AC ECU or actuator is replaced or the ECU memory is lost.

19. AdBlue Reset
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, the urea reset operation is required.

20. AFS Headlamp Reset
This function enables you to initialize the adaptive headlamp system.

21. A/F Reset
This function is applied to set or learn air/fuel rate parameters.

22. Gearbox Reset
This function enables you to complete the gearbox self-learning to improve gear shifting quality

23. Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

24. Transport Reset
To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open and disable remote key, etc. In this case, deactivating the transport mode is needed to recover the vehicle being normal.

25. Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

26. High Voltage Battery Detection
This function is used for high voltage battery diagnosis and status information detection.

27. Sunroof Initialization
This function enables you to set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car ,etc.

28. Engine Power Balance Monitoring
This function is used to monitor crankshaft acceleration in the power stroke of each cylinder, to determine the relative power provided by each cylinder.

29. Language Change
This function is used to change system language of vehicle center console.note:you need to have language pack to do language change

30. Gas Particulate Filter (GPF) Regeneration

This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resulting from a long time service of the GPF.

31. Intelligent Cruise Control System Reset

This function is used to matching the intelligent cruise control module after it is replaced or repaired.

(Note: Available maintenance functions vary depending on the vehicle make, year, and model.)
How to Get 100+ More:

Read vehicle by Auto detect or manual input or manual selection.
Auto scan all accessible system on board.
Relevant System: e.g. Powertrain/Body/Chassis, etc.
Relevant Module: e.g. PCM/ECM/EPS/PDM/BCM/TPM/SCCM/RADIO, etc.
Select the special function you need.
Launch CRP919X 35+ Special functions

3. All System Diagnosis
LAUNCH CRP919X automotive scanner enables to run an all-system diagnostics and goes offering a complete scanning of engine, AT, ABS, TPMS, Fuel, BCM diagnostic data, so that you can quickly catch all the fault codes and repair them to optimized performance. And the Auto VIN could automatically identify vehicle information for some models and enhance diagnostic correctness and efficiency.
With LAUNCH CRP919XBT, you don’t need any specialized diagnostic tools that can only perform scans on limited systems. This car scanner diagnostic for all cars is an all-system diagnostic tool that means it can fully access all available systems and get insight into what may trigger the system issue:

Benefits – By building a communicating bridge to 99% OBD2 cars’ accessible computers and modules, detect DTCs to quickly identify and address problems before they become more serious or costly to fix.
Advantages – For example, in some C-hrysler 2021 models, cover ITM, MSMD, PEM, SGW; in H-onda models, cover 17 systems like SADAS, ADASTYPEE, PADAS, EAS, SFD. The scan results are consistent with the OE manufacturer diagnostic tools.
Complete Functionality – AutoVIN & Scan (2006+) accelerates all-system DTC scans; Diagnose over 7000+ issues with vehicles; Decode not only generic but also OE-specific codes; Erase code quickly after retrieving DTCs; Reset kinds of dashboard error lights; Display live data in graphics that can be merged to easily get notified of a problem as soon as it develops; Obtain ECU information to find the matched replacement for proper repairs.
Complete Coverage – CEM (Central Electronic Module), ECM (Engine Control Module), TCM (Transmission Control Module), DIM (Driver Information Module), ASDM (Active Safety Domain Master), BBS (Battery Backed-up Sounder), IMS (Interior Movement Sensor), SWM (Steering Wheel Module), HUD (Head Up Display), SCL (Sterring Column Lo-ck Module), TACM (Transmission Actuator Control Module)… depending on vehicle’s make/model/year.
LAUNCH X431 CRP919X BT all system Diagnosis function

4. ECU Coding

LAUNCH CRP919XBT also features the advanced ECU coding that most aftermarket obd2 scanner diagnostic tools do not support. You can address the following issues:
Match Settings after Replacement – After replacing the ECU/module, you need to match, learn, code, or even program the replacement before it functions normally. Otherwise, the car cannot start or some parts cannot work normally.
Open/Close Car Functions (Personalization, Flash Hidden Functions) – With this car scanner diagnostic for all cars, you can access and modify certain hidden or advanced settings in a vehicle to make your general model a deluxe car.
Using Scenario – Model: Ford Focus. Operation: you can modify some of original car features, such as how long the interior light stays on after you close the door, or whether the horn honks when you use your remote lo-cks.
More Applications – Revised fu-el consumption calculation, seat belt alarm, automatic start/stop, hidden menu, daytime running lights, cruise control, automatic loc-king and unlo-cking of the central lo-ck, comfortable windscreen washer, welcome light and others.
Restore Functions if Data Loss – By restoring the current car settings back to the default status, to fix complex ECU-controlled issues including low fu-el efficiency, mysterious power loss, unknown fault in mechanical parts, etc.
Modifications/Changeover – Make personalized modifications to your car's per-formance, appearance, or both. It offers a wide range of popular modification options, including converting halogen to xenon headlights, altering tire size, automating manual electric control systems, upgrading steering gear, and more.
Aftermarket Installation – Add new auto parts into an older vehicle to outfit it with some modern luxuries. For example: help add retrofit TPMS kits to older or non-TPMS-equipped vehicles.
Programmable Module Installation (PMI) – Mainly for For-d models. Make adaptive procedures for new ECU modules after replacement to ensure their normal functionalities.
In the intricate world of automobiles, every actuator is endowed with a unique record code within the ECU – a fundamental mechanism that orchestrates the seamless functioning of various car systems. Enter ECU coding: the transformative process that fosters harmonious interaction between multiple car systems, activating actuators and facilitating their orchestrated performance. The LAUNCH X431 CRP919X BT Scan Tool boasts an advanced ECU coding function that elegantly addresses a spectrum of automotive challenges, revolutionizing your approach to vehicle diagnostics.

Note: CRP919X BT only does VW Audi online coding. It does offline coding for VW, Audi, Benz BMW, Land Rover Jaguar, Porsche, Toyota etc.

—ECU Online Coding: Unlock a New Realm of Possibilities
Experience the prowess of ECU online coding, an innovation that directly links you to the OEM server. Seamlessly regain access to lost OEM online data, exclusively compatible with VW, Audi, Skoda, and Seat. This unique capability empowers you to effortlessly restore functions such as acoustical confirmation, active rear spoiler management, SiriusXM coding, digital speedometer calibration, start & stop button configuration, remote window control unlocking, acoustic pedestrian protection, active cruise control activation, air conditioning setting memory, automatic air recirculation, ambient lighting brightness adjustment, and an array of other possibilities.

—Component Matching: Precision in Restoration

In the aftermath of replacing faulty actuators or specific components, the component matching feature becomes your indispensable ally. This vital function generates new codes and seamlessly integrates new actuators into the system. Following simple on-screen instructions, wipe the ECU's memory of past configurations and input adaptive data into designated components. With LAUNCH X431 CRP919X BT , you're equipped with a professional-grade tool that establishes impeccable communication between new ECU modules, ensuring accuracy in every reconfiguration.

—Personalization: Unlock Your Vehicle's Potential

Explore the realm of personalization as you unlock hidden features, customize settings, and unleash the true potential of your vehicle. Refine the code to: 1) personalize vehicle settings, 2) unveil latent vehicle capabilities, 3) activate advanced functionalities, and 4) selectively disable certain features. Perfectly aligned with brands like Mercedes-Benz, BMW, Porsche, and more, this feature facilitates actions such as deactivating start/stop functions, eliminating bothersome beeping during locking and unlocking, muting seatbelt warning sounds, and automating mirrors' folding and unfolding.

—Variant Coding (Offline Programming): Adapting to Diverse Realities

Variation coding takes the spotlight as it programs ECUs to harmonize with diverse vehicle variants – from left-hand drive to right-hand drive configurations. Adapt to distinct legal requirements, such as automatic headlight activation during driving. This feature flexes its prowess in Nissan, Nissan-GTR, Infiniti, Hyundai, and other compatible vehicles.

—Customize OE-Settings (Retrofit/Modification): Redefine Performance

Experience a realm of vehicle transformation designed to amplify performance and elevate business profits. Reconfigure default settings to reshape your vehicle's behavior – upgrading fog lamps, elevating battery capacity, embracing larger tires, and seamlessly integrating adaptive cruise control, tire pressure monitoring systems, and reversing radar.

—A Final Note: Precision is Key

Please note that while ECU coding is potent, its compatibility isn't universal. For a personalized compatibility assessment, kindly sh-are your VIN number, year, and model with us

—Unveiling More Powerful Features: 1. Programmable Module Installation: For Ford, Lincoln, Mazda, and more. Seamlessly replace or initialize modules by copying data from the original module and installing it onto the new unit, simplifying module replacement. 2.Online Repair Source: Access a wealth of online repair guidance resources, from operational tips and DTC assistance to a comprehensive technology handbook and relevant case studies. 3.Built-in Google Browser: Navigate the digital landscape effortlessly with built-in Google browser. Effortlessly access online resources, making your work even more efficient.

With ECU Coding, the Launch X431 CRP919X BT puts you in control of your vehicle's performance and customization. Experience the freedom to personalize and optimize your driving experience like never before. Unlock the full potential of your car with confidence and precision.
LAUNCH X431 CRP919XBT ecu coding
LAUNCH X431 CRP919XBT ecu coding 2

5. Multi-Languages Support
English, French, Spanish, German, Italy, Russia, Portuguese, Japanese, Korean, Polish.

6.Over 115 Car Brands ,10000+ Models

- European car
, for ABARTH, for ALFA ROMEO, for AUDI, for BENTLEY, for BMW, for BUGATTI, for CITROEN, for DACIA, for IZH, for EURO FORD, for FERRARI, for FIAT, for GAZ, for OPEL(SOUTHAFRICA), for IVECO, for JAGUAR, for LAMBORGHINI, for LANCIA, for LANDROVE, for MASERATI, for MAYBACH, for MERCEDES, for MINI, for OPEL, for PEUGEOT, for PORSCHE, for RENAULT, for ROLLSROYCE, for ROVER, for SAAB, for SEAT, for SKODA, for SMART, for SPRINTER, for VAUXHALL, for VAZ, for VOLVO, for VW, for ASTONMARTIN, for VW_CV

- American cars
for BUICK, for CADILLAC, for CHEVROLET, for CHRYSLER, for DODGE, for FIAT(BRAZIL), for FORD, for GM, for JEEP, for LINCOLI, for GM(BRAZIL)

- Asian cars：
for CURA, for DAEWOO, for DAIHATSU, for HOLDEN(AUSTRALIA), for HONDA, for HYUNDAI, for INFINITI, for ISUZU, for KIA, for LEXUS, for LUXGEN, for MAHINDRA(INDIAN), for MARUTI(INDIAN), for MAZDA, for MITSUBISHI, for NISSAN, for GTR(NISSAN), for PERODUA, for SAMSUNG, for SSANGYONG, for SUBARU, for SUZUKI, for TATA(INDIAN, for TLISUZU, for TOYOTA
LAUNCH X431 CRP919X Over 115 Car Brands ,10000+ Models

7. Share Report via Wi-Fi & print Report
Rather than taking the additional hassle, with this LAUNCH scanner, you would easily be able to share the diagnostics report to your clients or technicians via Wi-Fi ( email address ) . They would take a look at the full, clear, and accurate diagnostic report, and then understand what would need to be done. No more Googling unreliable fixes that would waste your energy.

8. Add-On Features: Get What You Need, Diagnostics Made Easy
You won’t find another scan tool with better help than LAUNCH CRP919XBT.

Online Feedback – This car scanner diagnostic for all cars allows users to provide their feedback directly through interactive data logging sessions, to share their experiences, report any issues they may have encountered, and provide suggestions for improvement.
Diagnostic Report – This diagnostic scan tool for all vehicles will automatically generate the diagnostic report after each of your diagnostic procedure, including your vehicle information and well-explained inspection results for your data backup.
Repair Information – Get unlimited repair information generated from LAUNCH’s database of millions of fixes verified by professional automotive technicians. 1) Operation Tips, provide the information needed to clear the faults; 2) DTC Help, repair assistance information related to the fault code; 3) Technology Handbook: tailored to wide-ranging car models maintenance, including wiring diagrams, locations of control units, etc.
9. VAG Guided Function for VAG Vehicles:
Exclusive to VAG (Volkswagen, Audi, Skoda, and Seat) vehicles, the Guided Function provides step-by-step repair guidance for technicians and individuals alike. Avoid potential car fault settings caused by incorrect operations and ensure precise and accurate repairs. This invaluable feature enhances your diagnostic accuracy and eliminates guesswork, saving you time and preventing costly mistakes. With this obd2 scanner, there is no need to find the Security Access Code/Channel Number for V.A.G group vehicles. The provided guidancein this OBD2 scanner diagnostic tool can help you skip searching of access codes and directly lead you to the diagnostics, saving lots of time.
Launch X431 CRP919X BT guide function
Specification for X431 CRP919XBT
Operating system: Android 10.0
Processor: 2.0GHz, quad core
Memory: 4GB
Storage: 64GB
Display screen: 7-inch, LCD screen
Resolution: 1024 * 600
Camera: 8 megapixel rear mounted
Wi Fi: 2.4GHz
Battery: 6300mAh

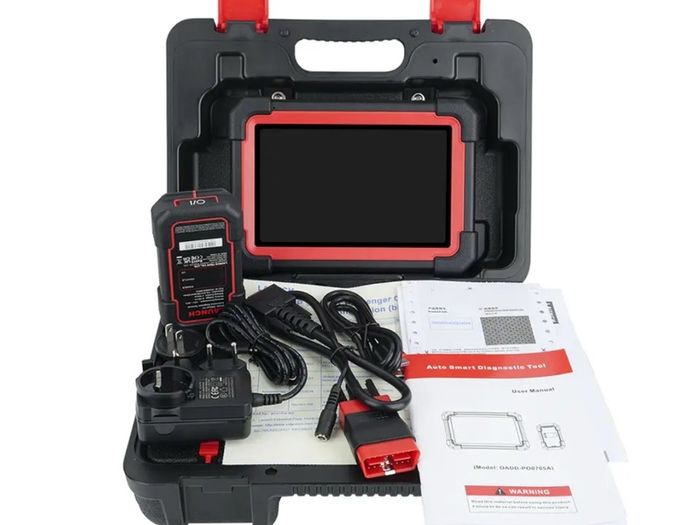

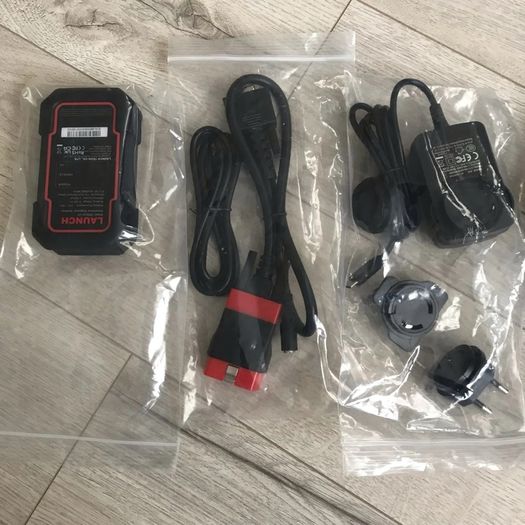

Package List
1pc x Launch CRP 919X BT Tablet
1pc x DBSCAR VII diagnostic connector
1pc x HD15F to OBDII16 male integrated test connector
1pc x HDB15F to HDB15F test main line(length=600mm)
1pc x British standard conversion head
1pc x European standard conversion head
1pc x American standard conversion head
1pc x User manual
1pc x Power adapter
1pc x Universal PIN envelope
1pc x Quick start
1pc x Type A to type C data cabl

https://youtu.be/zs5REEYpG-0

https://youtu.be/fsc6xgUqZLI?si=vAAPM6DBD7ZkYvAB

Still available:

390 new

Available

New

Still available:

Still available: more available

@93&95Spares send offer to exchange details

@93&95Spares cash on collection , yes any time , in balbriggan new

@GabrielR98 sell only
