JDiag P100 Power Pro P-100 New 12V 24V Generation Automotive Electrical Circuit System Tester for Cars and Trucks P 100
100% Positive feedback, Buy with confidence from an trusted experienced seller
All item are new and not open to offers. Will do a deal if buying multiple items but this item is priced to sell and will not be discounted further
Can post same working day if paying via PayPal

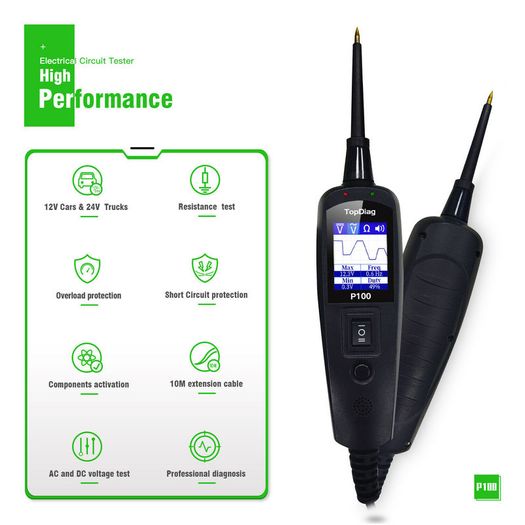

JDiag Original Automotive Electrical Circuit System Tester for Cars and Trucks 0V - 70V
1.Voltage & Polarity Testing-Determine DC/AC Voltage and Postive/Negative quickly.
2.Resistance Continuity Testing- LCD Screen display the value of resistance.
3.AC Circuit Singal Testing- Fast to trubleshoot the sensors circuit problem.

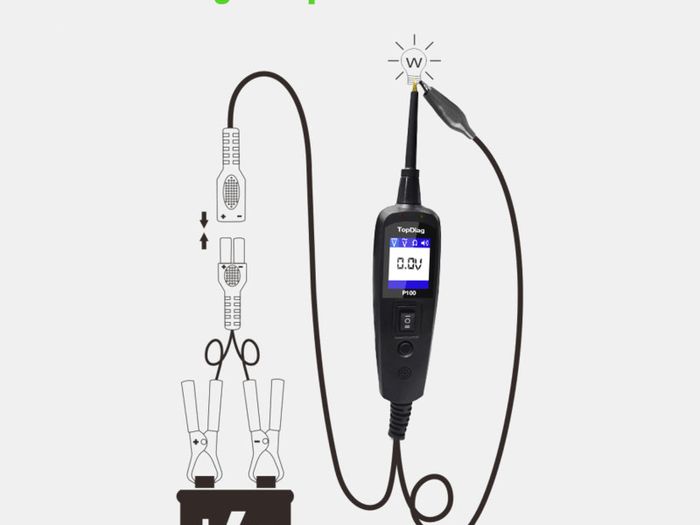

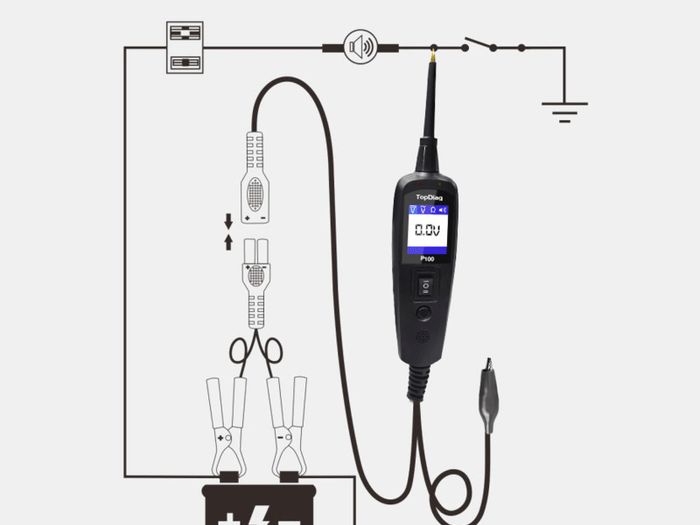

4.Components Activation in your hand, in the vehicle or W/Ground.
5.Testing Trailer Lights and Connections-10M extension cable allow your to test Cars or Trucks.
6.Checking for Bad Ground Contacts and Locating Short Circuits
Specifications:
1. Display: TFT color display (160 x 128 dpi)
2. Operating Temperature: 0 to 60°C (32 to 140 F°)
3. Storage Temperature: -40 to 70°C (-40 to 185 F°)
4. External Power: 12.0 or 24.0 V power provided via vehicle battery
5. Dimensions: Length 165 mm * Width 40 mm * Height 27 mm
Test Tool Specifications:
DC voltage range : 0-65V +1 digit
Resistance range : 0-200 K ohm
Frequency response of tone pass through
0Hz to 10K hz.
Circuit Breaker
Rating current: 1-10 Amp
Testing Standard:
100% current : no trip
150% current: trip in one hour
200% current: trip in 3-30 seconds.
300% current: trip in 0.5-4.0 seconds.
