EV Car Charger Single Phase 32A, 7kW

Pacini Car Charger – Single Phase 32A (7kW)

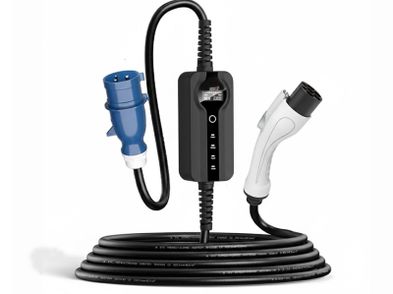

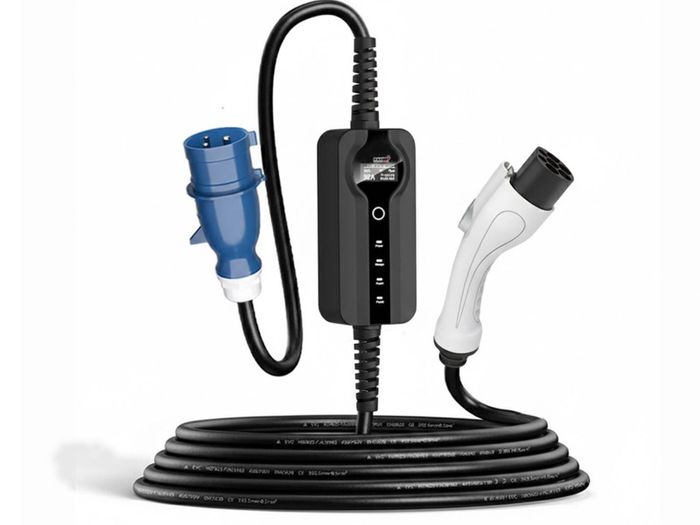

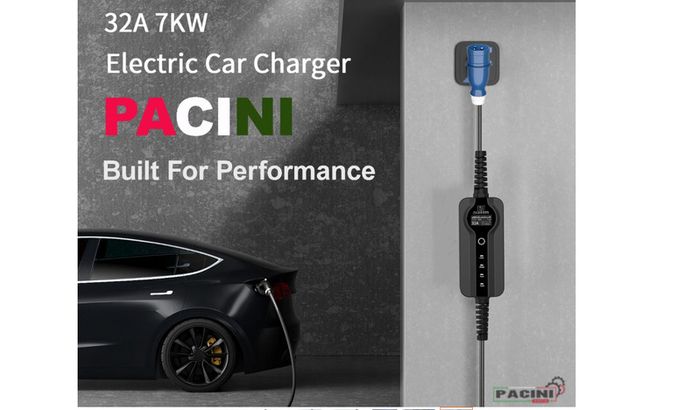

The PACINI 7kW Portable EV Charger is a robust and high-performance charging solution designed for electric vehicles. Operating on a single-phase 32A supply, this charger delivers up to 7kW of power, ensuring faster charging times compared to standard domestic plugs. It features a durable, water-resistant design (IP65) and an intelligent digital display to monitor real-time charging status
Pacini Car Charger 7kW is a compact and reliable AC EV charging solution designed for home, workplace, and light commercial use. It supports single-phase charging with robust safety features and a durable design suitable for indoor and outdoor environments.
Key Features
Single-phase AC charging up to 7kW

32A maximum current for fast and efficient charging

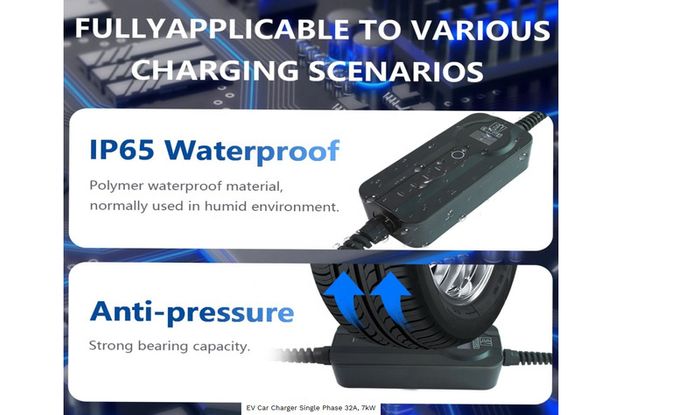

IP65 protection – suitable for outdoor use

Durable construction with high mechanical life

Intelligent display showing real-time charging status

Natural air-cooled design for stable operation

Wide operating temperature and humidity range


Technical Specifications
Working Voltage: AC 220V

Current: Max 32A

Rated Power: 7kW

Frequency: 50Hz / 60Hz

IP Rating: IP65

Mechanical Life: >10,000 plug-in / pull-out cycles (no-load)

Impact Resistance: 1m drop & withstands 2T vehicle pressure

Insulation Resistance: >500MΩ (DC 500V)

Terminal Temperature Rise: <50K

Environmental Conditions
Operating Temperature: -30°C to +50°C

Operating Humidity: 5% – 95% RH

Cooling Method: Natural air cooling

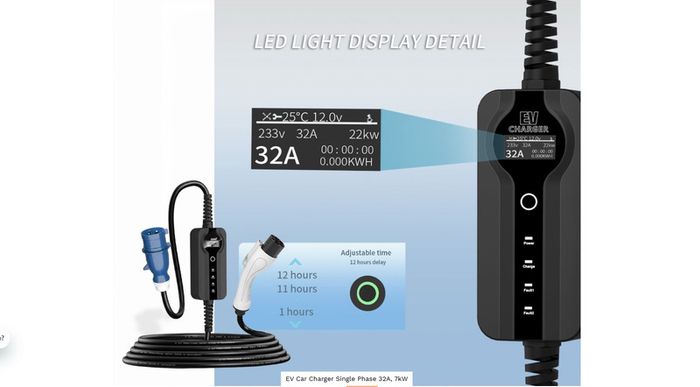

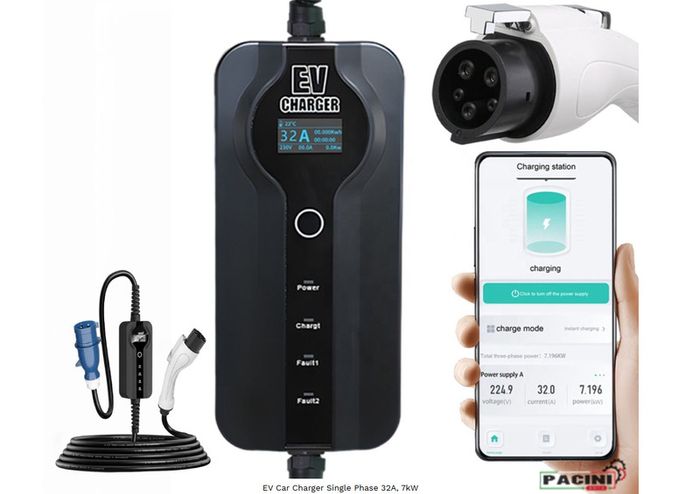

Display & Monitoring
The charger display provides real-time information including:

Charging voltage

Charging current

Charging power

SOC (State of Charge)

Fault codes

Physical & Packing Details
Packing Size: L36 × W36 × H8 cm

Applications
Home EV charging

Residential apartments

Offices & workplaces

Small commercial installations
