Delphi DS150e Autocom CDP+ 2023.20g Car + Truck BT Diagnostics VCI

We sell the best quality reworked single PCB Autocom/Delphi vci's almost 1:1 compared to the original.

Only we are reworking the secret component that is not known to the public, is necessary for truck diagnostics. These components are not shipped on any vci from china. Open yours and you can confirm u1201 and u1202 are missing on your pcb.

It is not shown in our images and we do not answer questions about this component.

NEW! We changed some components and now our boards are about 30% faster than regular clones***

The other guys selling here are selling direct from aliexpress.

We rework the PCBs in Germany with HQ components from Mouser or Farnell.

All PCBs are tested before shipment. We are testing on breakout boxes and real cars/trucks with software 2020.23, 2021.11, 2022.02a and the latest 2023.20g.

Our PCBs work with all cars, including BMW and Volvo and any type of truck we've tested so far.

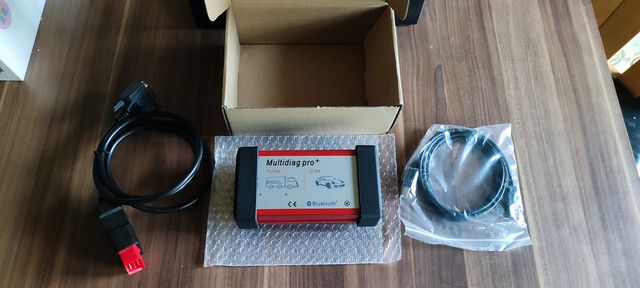

We sell this PCB in red Multidiag Pro case and comes with the free software 2020 or c4b 2021.

We supply the latest 2023.20g update. Update can be done separately if you already have good quality vci. If you have double pcb they do not work from 2017 models onwards.

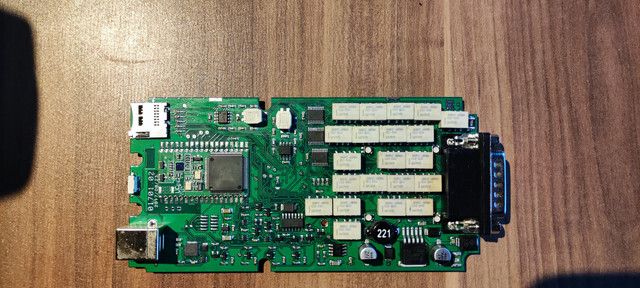

Our reworked PCB's fits in ALL of these housings Autocom, Delphi, TSC, Multidiag and the WOW Snooper.

This is because they all the same device just with a different outer housing.

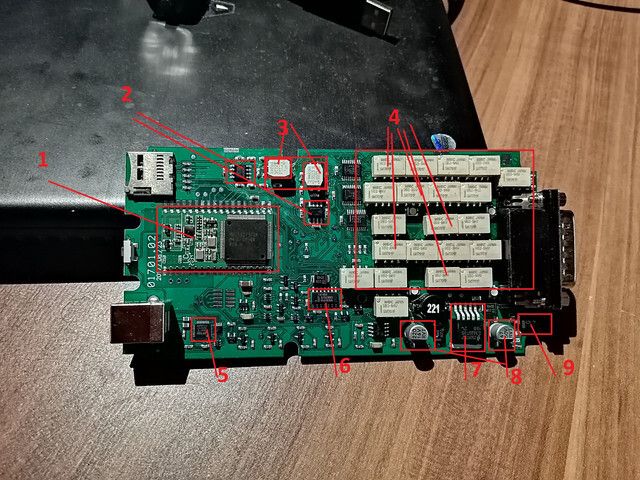

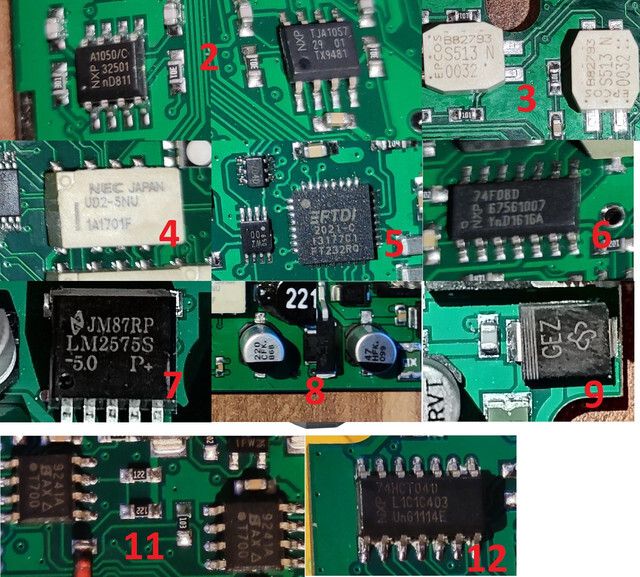

All our boards come with the following components:

1.
Bluetooth module

2.
TJA1050T, TJA1057T, or ATA6561 High Speed CAN Transceiver

3.
EPCOS CAN filter

4.
4.5V or 5V relay

5.
Chip FTDI FT232RQ

6.
SN74F08D logic gates

7.
STEP-DOWN VOLTAGE REGULATOR LM2575S 1A

8.
PANASONIC, SUNCON or United Chemi-Con HQ low ESR electrolytic capacitors

9.
GEZ SMCJ24V0©A Transient voltage suppressor (24.0 V)

10.

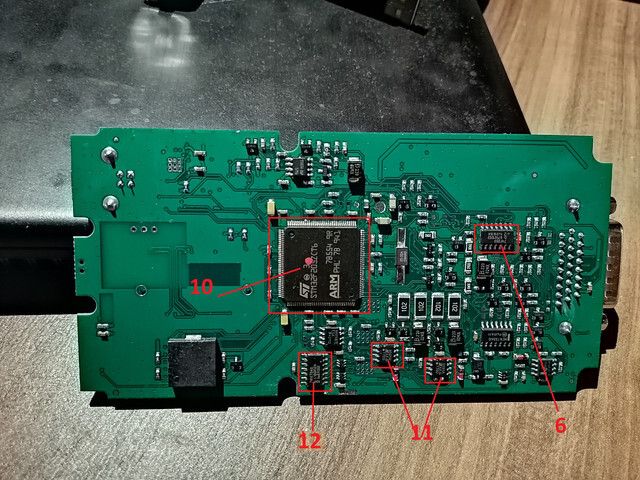

STM32F205ZCT6 Microcontroller

11.
SI9241AEY Single-ended bus transceiver

12.
74HCT04D Hex inverter

13.
Secret component

14.
Secret components for 30% faster speed.


What we always rework:

3.
We always replace the China 701 with the original EPCOS CAN filter

8.
We always replace cheap Chinese capacitors (lifetime 500-1000 hours) with Panasonic HQ, SUNCON or United Chemi-Con Low ESR electrolytic capacitors (lifetime 2000 hours +)
Due to the chip crisis in China, PCB components change from batch to batch. We replace them with HQ components if necessary.

We never trust the printing on any component from China, we always check the quality and if the components are real! They are renowned for using fake chips and recycled components..

13.
For full truck compatibility we add the missing secret components to our boards.

Don't believe us? If you have problems with your vci to read trucks, try ours and you will see the difference!


What we rework if necessary:

2.
The original is TJA1050T but TJA1057T and ATA6561 is the upgrade of TJA1050T (next generation). Depending on our stock, we use TJA1050T, TJA1057T or ATA6561.

4.
We always measure resistance. If the resistance is less than 140 Ohms, we replace the relay.
Relays should have 4.5V~150Ohm and 5V~190Ohm. Never trust the press about China Relays always measure !!

6.
If we see Chinese variants of this, we change it to original SN74F08D

9.
Some PCBs are equipped with a GEX suppressor. Then we change it to GEZ SMCJ24V0©A

11.
Normally the Chinese PCB comes with the original. If not, we change it to SI9241AEY

Prices:

1 pcs 159€

Shipping from Germany

Shipping price:
EU Package 15.90€

German law requires we have to add VAT to the price.

Price + VAT = €159

We are the only providers of reworked vci's in europe, guaranteed. We do all the work inhouse.

Don't fall for the chinese lies or any other claim of a super a+++++++ quality reworked PCB.

Do not buy the 2020.23 or the 2021 by c4b software. These are FREE all over the internet!

2023 software update is available with one month of HaynesPro 2026 cars and trucks included. Message for the details.

Your laptop MUST have TPM2 or at least capable of upgrading from TPM 1.2
Without TPM2 the software will not work.

If you are unsure, make an offer, send me your pc make and model and we can check for you.

Contact us for the details or email us at mhhhanstanz @ gmail dot com and we will be happy to help.
