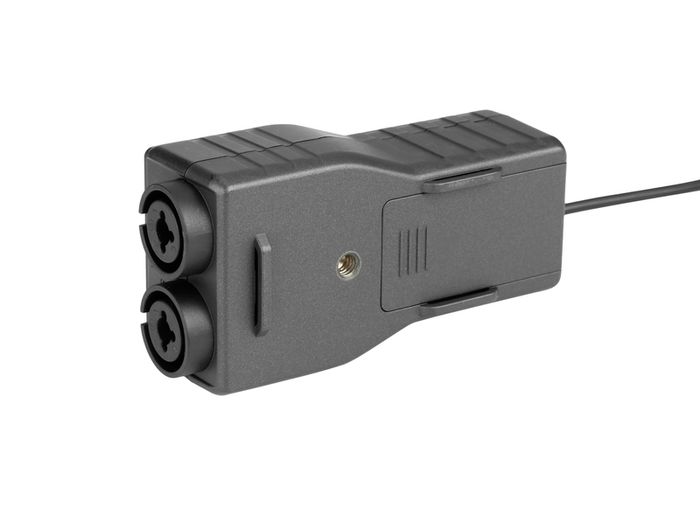

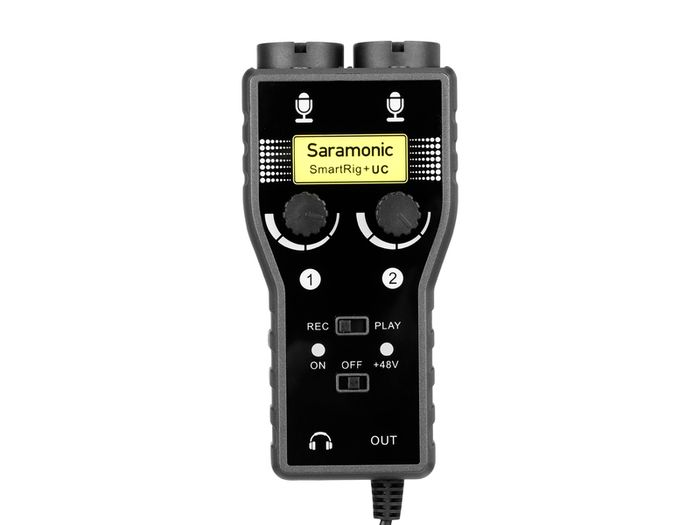

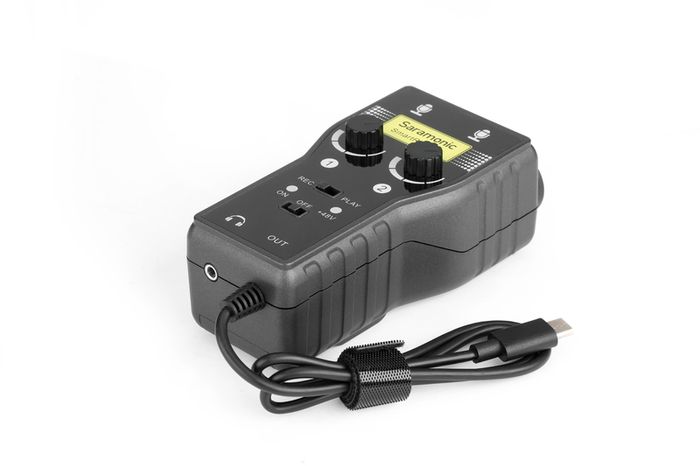

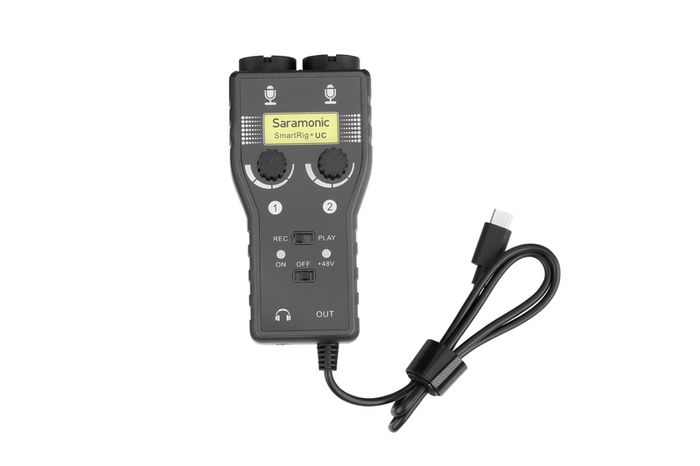

Saramonic SmartRig+ UC

Product Description





Saramonic SmartRig+ UC

Two Channel Audio Interface

The Saramonic SmartRig+ UC is a two channel audio interface. It allows you to connect professional microphones/guitars to record quality sound or create music with your USB Type-C devices.

The USB Type-C connector allows you to record great stereo sound to your devices.

The SmartRig+ UC makes your recording work much easier. It provides 48V phantom power for microphones and 3.5mm headphone output for real-time monitoring.

The two gain control thumbwheels make it easy to set levels of each channel separately

Two XLR mic inputs
Two 1/4″ (6.35mm) guitar inputs
Two 1/8″ (3.5mm) inputs
Mono/Stereo switch (M/S)
REC/PLAY switch
+48V phantom power
3.5mm headphone output for monitoring
Gain control
USB Type-C connector for output

Frequency Response: 20 Hz to 20 Khz, +/-0.5 dB

THD: less than 0.01%@1KHZ, -30dBu input

SNR: 80 dB @ 1 kHz, -30 dBu input

Input1:

1x XLR mic input

1 x 1/4″ (6.35mm) guitar input

1 x 1/8″ (3.5mm) input

Input2:

1 x XLR mic input

1 x 1/4″ (6.35mm) guitar input

1 x 1/8″ (3.5mm) input

Output: USB Type-C connector output cable

Phone Out: 1 x 1/8″ (3.5mm) headphone jack

Gain: +20 dB to -∞

Phantom Power: 48V power supplies

Power Requirements: 9V alkaline or lithium battery

Dimensions: L 120 x W 40 x H 40 mm

Power Requirements: 9V alkaline or lithium battery

Dimensions: L 120 x W 40 x H 40 mm

Weight: 130g (excluding battery)
