H.265 Max 4K Output CCTV NVR Face Detection 10CH 4K Security Video Recorder Motion Detect P2P Onvif XMEYE

Specifications

10CH

System

Main processor

XM8536D

XM8536E

XM8536E

NT98323

Operating System

Embedded Linux

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

Interface

Operator interface

16-bit true color graphic menu operation interface, support mouse operation

Preview

1/2/4/6/8/9

1/2/4/6/9/10

1/2/4/6/8/9/16

1/2/4/6/8/9/16/36

Video

Video input (IP

9*4K Unreal-time（Access bandwidth 60Mbps）

10*4K（Access bandwidth 72Mbps）

16*4K（Access bandwidth 72Mbps）

36*4K

Video compression

H.265AI/H.265+(compatible H.265/H.264)

Display quality

Max:4K

Playback quality

4K/5M/4M/3M/1080P

VR

Not support

human shape / Face

Support(depend on camera,the camera of NETIP protocol can support face recognition)

Audio

Audio compression

G.711A

Intercom

support

Record & playback

Recording mode

Manual>Alarm>Dynamic Detection>Timing

Localpayback(real-time+
Un real-time)

1ch4K/2ch5M/1ch4M
/2ch3M/3h1080P

1ch4k/2ch5M/2ch4M/
3ch3M/5ch1080P

1ch4k/2ch5M/2ch4M/
3ch3M/4ch1080P

2ch4K@12fps/3ch5M@20fps/4ch4M@20fps/4ch3M@20fps/6ch1080P@25fps

Search mode

Search by Time/Calendar/Event/Channel/Face

Record storage

HDD、Network

Backup mode

Network backup, USB hard disk, USB burner, SATA burner

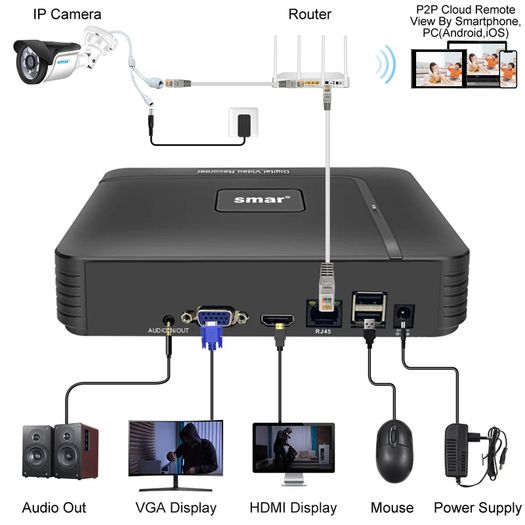

External
interface

Video output

1ch VGA，1ch HDMI HD output

Audio I/O

1/1（3.5mm）

Alarm I/O

0/0

Network interface

1*RJ45 10M/100M Adaptive Ethernet port

1*RJ45 100M/1000M Adaptive Ethernet port

USB interface

2*USB2.0 ports(one USB extension interface is reserved)

HDD

1 SATA(Up to 14TB for each disk)

ESATA

No

Serial interface

No

Other

ONVIF

Support

power supplyr

DC12V 2A(If the hard drive is greater than 2TB, please replace it with a 3A or higher power supply)

Power Consumption

<10W(Without HDD)

Work environment

Temperature:0°C －55°C, Humidity:10%－90%RH , Atm:86kpa－106kp


Packing List:

1* 10CH H.265 NVR
1* USB Mouse
1* DC12V Power Adapter for NVR
1* User's Manual

Hard drive not included

No offers under the asking price
