CVW Crystal Video Pro200 Set

Zero Delay Video Radio Link Set
For distances up to 200 m without DFS
Ultra-low latency under 1 ms
Range up to 200 m (line-of-sight)
Video formats: 1080p (23.98/24/25/30/50/60 fps), 1080i (50/59.94/60), 720P (50/59.94/60 fps)
Uncompressed 4:2:2 at 10bit
Audio formats: PCM, DTS-HD, Dolby True HD
Frequency range (EU): 5150 - 5250 MHz / 5725 - 5825 MHz
3GSDI and HDMI FullHD
Bandwidth: 40MHz
Without DFS (indoor application)
Frequency selection: manual with buttons (control via LED display)
Mounting options: ¼" internal thread (hot shoe adapter included)
Time code transmission
Battery mount: SONY F-Type Battery Plate
Suitable NP-F batteries e.g.: Baxxtar NP-F970 Art.496754 or Ansmann A-Son NP-F970 Art.#497644 (both not included in delivery)
Power consumption: 8W (Tx), 7W (Rx)
Temperature operating range: 0°C to 40°C
Dimensions TX (W x H x D): 74 x 120 x 35 mm
RX dimensions (W x H x D): 95 x 146 x 35 mm
Case dimensions (W x H x D): 335 x 121 x 310 mm
Weight TX: 0.226 kg
Weight RX: 0.310 g
Weight complete: 3.2 kg
Colour: Black

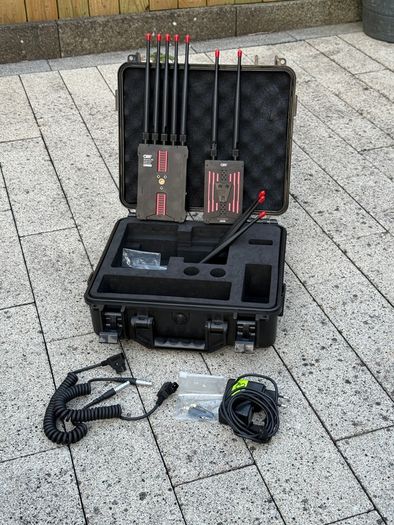

Scope of delivery:

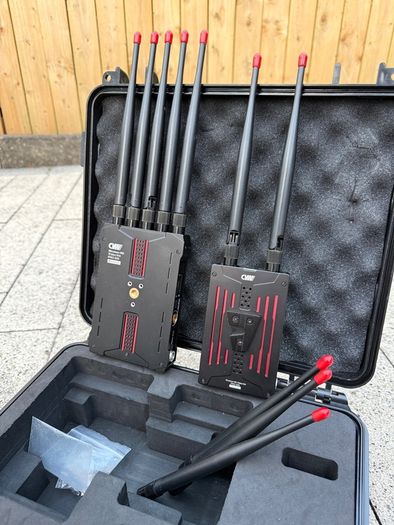

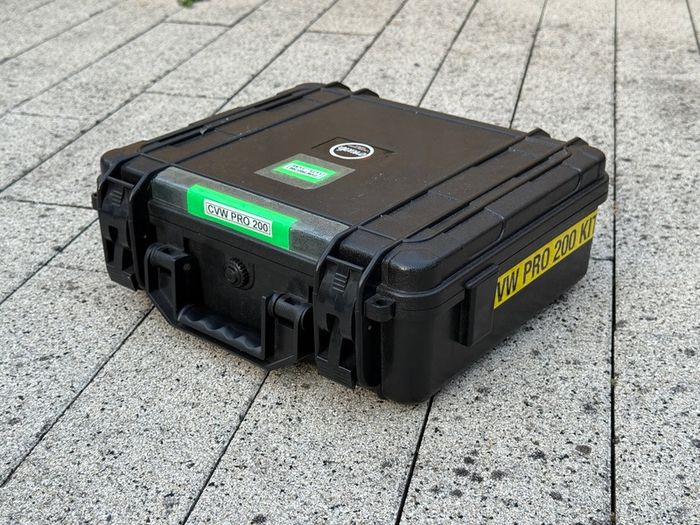

High-quality case with custom-fit foam

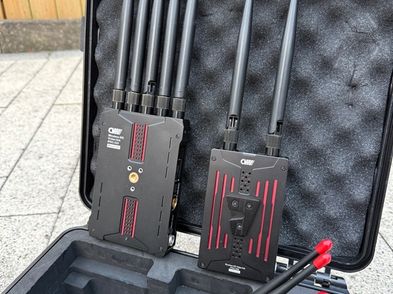

1 x Transmitter (with NP-F battery mount + antennas)
1 x Receiver (with NP-F battery mount + antennas)

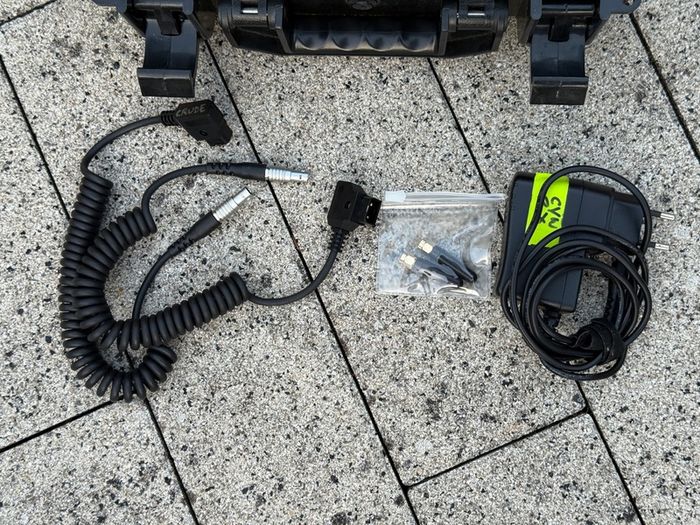

2 x BNC cable (80 cm)
1 x Power supply unit
2 x DC adapter cable (D-Tap to 2pin Lemo compatible)
Hot shoe adapter for both units
1 x V-Mount adapter
9 x Antennas
