Wavlink WL-UG69PD2 USB-C Dual HDMI or DisplayPort Display 4K@60Hz 13-in-1 Universal Docking Station with 100W Power supply Apple dell

Wavlink WL-UG69PD2 dock is one universal docking station compatible with USB 3.0 and USB-C notebooks across all notebook brands and platforms. It allows you to add dual displays with 2x DisplayPort (DP1.2) ports and 2x HDMI (HDMI2.0) ports, and the display resolution is up to 5K@60Hz with dual DisplayPort ports connected. It provides an operating desk by connecting many devices with just one cable to your laptop, making it easier to do more work in less time! The dock also features 65W/100W power delivery for host charging.
Features:
2 x HDMI (HDMI2.0) + 2 x DisplayPort (DP1.2), supports up to one 5K@60Hz or Dual 4K@60Hz resolution display
Supports USB Power delivery up to 65W / 100W (Pro) upstream charging to a connected laptop
Four USB3.0 Type-A (5G) with one Port support BC1.2 fast charging and Two USB Type-C (5G) ports to extend more connectivity to USB devices
Gigabit LAN port supports up to 1Gbps, providing a stable and high-speed internet connection
Supports for Kensington lock
Separate 3.5 mm audio input and output jacks for easy connection to headset or speakers
Lay-flat horizontal design save valuable desk space when you put this dock under your monitor
Like it, Buy now:
wavlink online
Amazon US
OverviewSpecificationsDriverQ&A
USB-C Dual 4K Universal Docking Station with USB Power Delivery

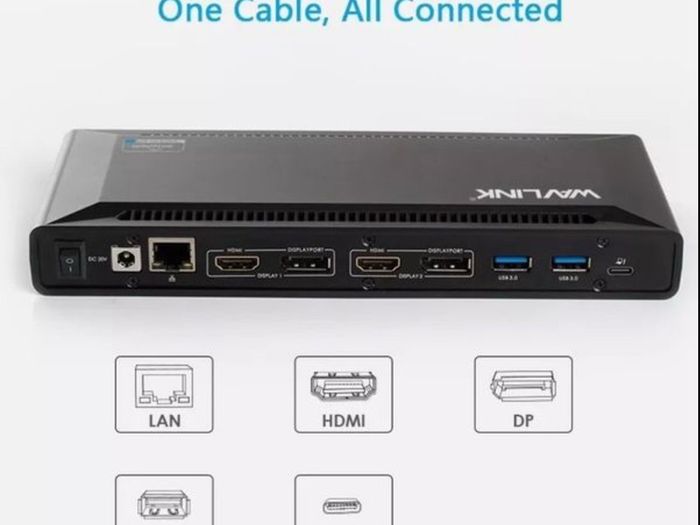

One Cable, All Connected

Customized for You
Easy to take anywhere with the compact and portable design, 15 ports on one dock brings users the enjoyment of fastness, steadiness and effectiveness.

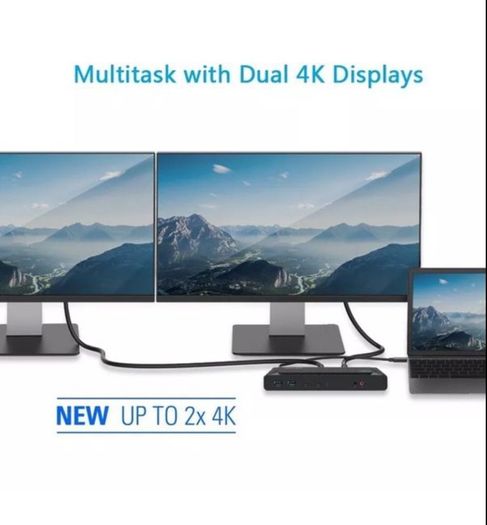

Multitask with Dual 4K Displays
Connect HDMI screens or DisplayPort screens to corresponding ports respectively; then you can view HD images on one or two 4K screens (4096×2160@60Hz) so as to extent screens, play video games, watch clips or work on important projects and so on.

Better Connection for the Better Performance

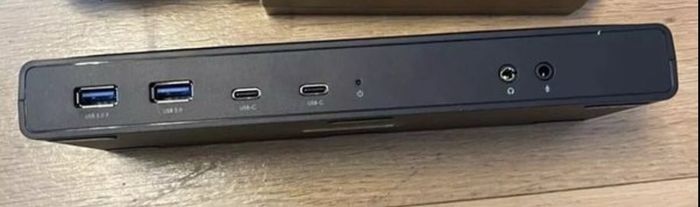

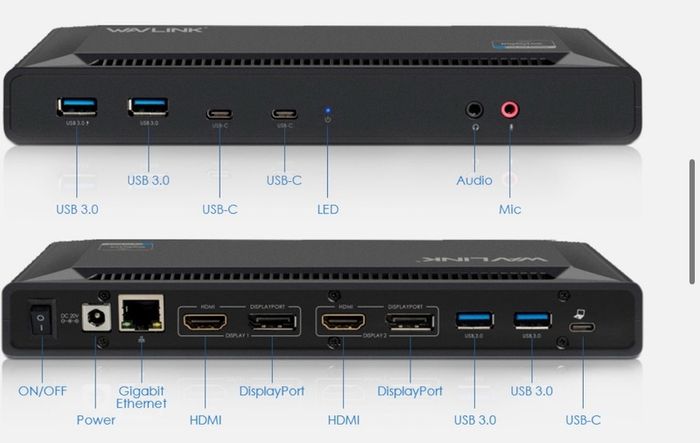

Front Panel
- Two USB 3.0 (5Gbps) Type-A ports
- Two USB-C (5Gbps) ports
- One 3.5mm Audio output port
- One 3.5mm Mic input port

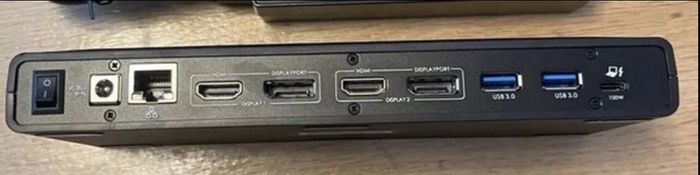

Rear Panel
- ON/OFF power switch
- One Gigabit Ethernet port
- Power port
- Two HDMI video output ports
- Two DISPLAYPORT video output ports
- One USB-C port (Connect to laptop)
- Two USB 3.0 (5Gbps) Type-A ports

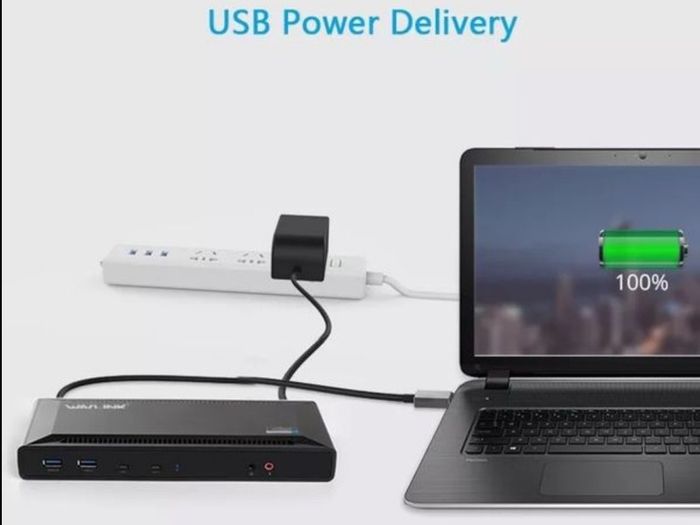

USB Power Delivery
Plug your dock into a nearby socket, then connect your dock and laptop. Then this dock is turned into a power socket for charging your laptop when necessary.

USB 3.0 Ports
In contrast with traditional USB ports, USB 3.0 port is bi-directional that reads and writes data simultaneously with maximum speed of 5Gbps, thus it is time-saving and efficient for data transmission.

Gigabit Ethernet
Connect to your laptop, PC, game consoles and so on with RJ45 Gigabit Ethernet, your multitasking online will be amazingly sped up compared to regular Ethernet port. Theoretically speaking, it supports up to 1 gigabit/second (1000Mbps), thus bandwidth capacity would be largely enhanced.

Audio and Mic
There are two separate ports on the dock for audio out and mic in, you can enjoy singing songs or having a conference with your voice heard by connecting a microphone to Mic In port; on the other hand, if you want to listen to audio files, you can insert your headset to audio out port.

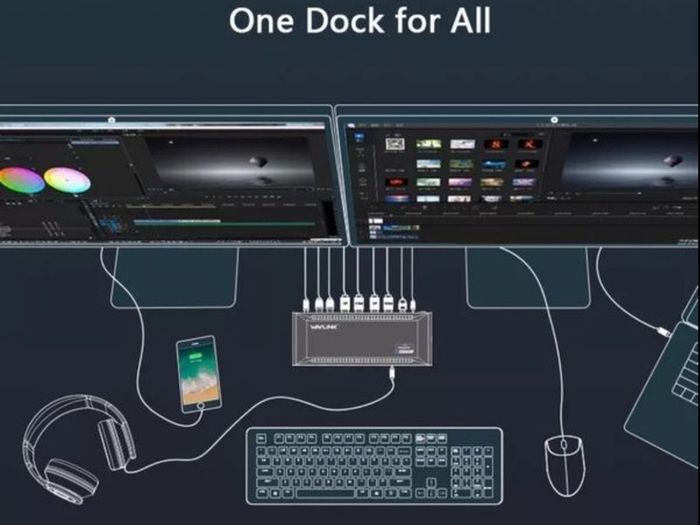

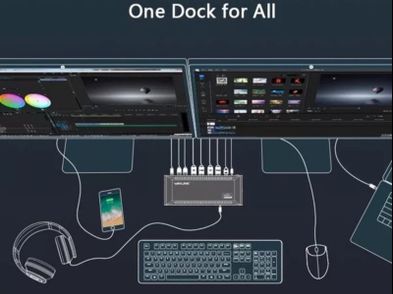

One Dock for All
The WAVLINK UG69PD2 allows you to easily connect various devices at the same time, helping you keep your workspace organized and efficient at all times.

Kensington Lock Slot for Security
Insert a matched Kensington lock (not included) into the lock slot, then you can save your physical device and its important data from theft.
wavlink,UG69PD1
TECHNICAL SPECIFICATIONS
ModelWL-UG69PD2 / WL-UG69PD2 ProConnection To HostUSB-C to C or USB3.0 CableDriver RequiredLatest DisplayLink DriverUSB Power DeliverySupports USB-C PD 65Watt / 100Watt (Pro) Power DeliveryUSB Port1x USB-C (USB3.1 Gen1) for host connection, supporting 100W Power Delivery to charging PC system2x USB-C (USB3.1 Gen1) supporting 5V/0.9A with data transfer 5Gbps1xUSB3.0 (Back) supporting BC1.2 fast-charging with data transfer 5Gbps3x USB3.0 supporting 5V/0.9A with data transfer 5GbpsVideo Outputs1 monitor:
(1) DisplayPort (DP1.2): Resolutions up to 4K@60Hz
(2) HDMI (HDMI 2.0): Resolutions up to 4K@60Hz
(3) Resolutions up to 5K@60Hz with 2 DisplayPort ports)2 monitors:
(1) DisplayPort (DP1.2): Resolutions up to 4K@60Hz
(2) DisplayPort (DP1.2): Resolutions up to 4K@60HzLED1 x Power LEDAudioSeparate 3.5 mm audio input and output jacksEthernet Speed 1x RJ45 10/100/1000Mbps EthernetButtonON/OFF button to turn the docking station on and offLockKensington lockPower adapter1xDC20V Adapter (Brick Style)WL-UG69PD2: 100WattWL-UG69PD2 Pro: 130WattOperating System(s)Microsoft Windows 7 / 8 / 10Apple Mac OS 10.8 or laterProduct Dimensions (WxDxH)223mm x 80mm x 26mmMaterialABS PlasticMaterialApprox 200g
