Dell Tb16

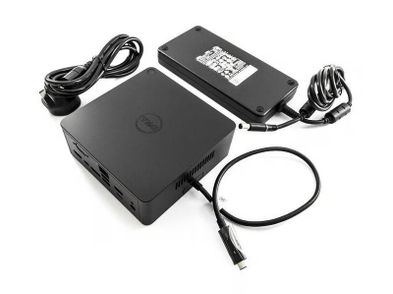

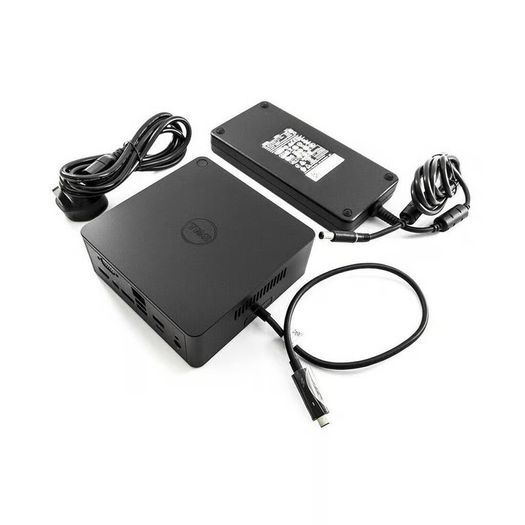

The Dell Thunderbolt Dock TB16 is a high-performance docking station designed for Dell laptops with Thunderbolt 3, utilizing a single USB-C cable to provide up to 130W power (180W/240W adapter options), video, and data. It supports up to three displays (two 4K at 60Hz or one 5K) and provides multiple ports, including USB 3.0, DisplayPort, and Gigabit Ethernet.

Key Features & Specifications
• Connectivity: Thunderbolt 3 (Type-C) required.

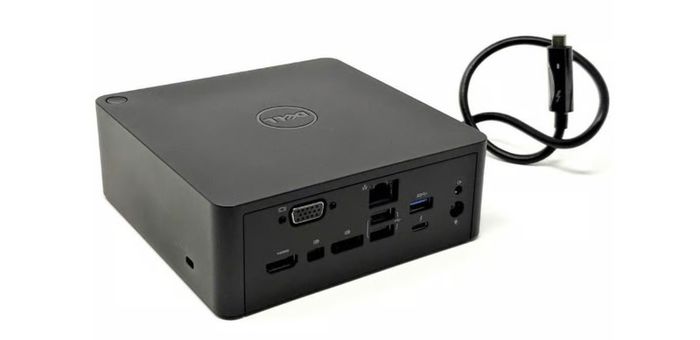

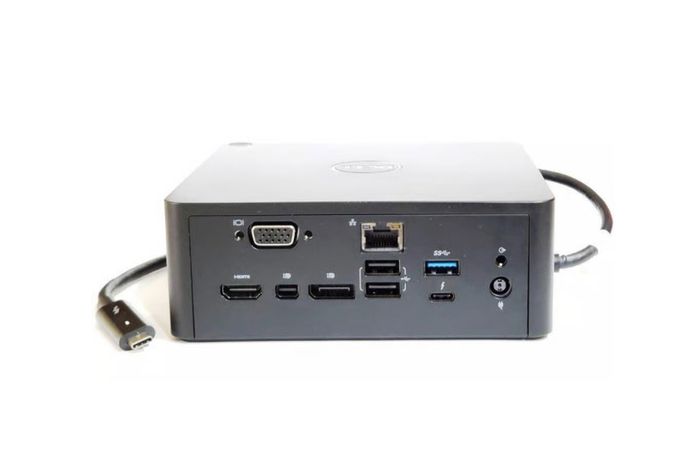

• Video Ports: 1x VGA, 1x HDMI, 1x mini DisplayPort (mDP), 1x DisplayPort (DP).

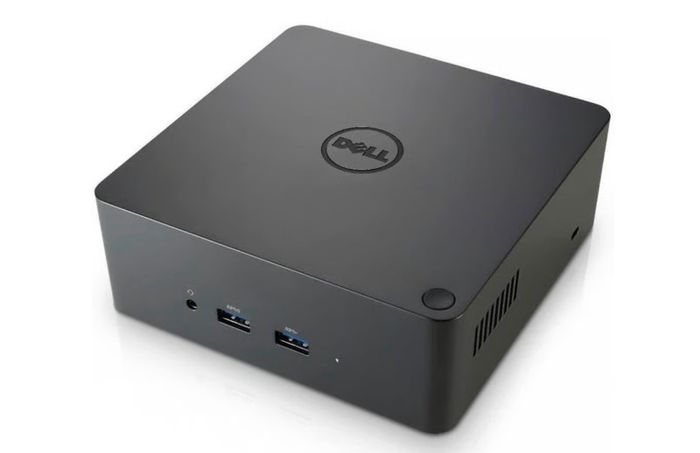

• Peripheral Ports: 3x USB 3.0 (one with PowerShare), 2x USB 2.0, 1x Headset/Microphone Jack, 1x RJ45 Ethernet.
• Power Delivery: Up to 130W to compatible Dell systems.
• Display Capabilities: Supports up to 3 screens (1x 5K, 2x 4K, or 3x FHD configurations).
• Cable Length: Approx. 40cm (18 inches).
Compatibility & Usage Notes
• Compatible Systems: Designed for Dell Precision, Latitude, or XPS notebooks with a Thunderbolt 3 port.
• Macbook Limitations: While it can charge some MacBooks, it may not support external displays on them.
• Firmware: Regularly check Dell Support for driver and firmware updates.
• Successor: This device has been superseded by newer models like the WD19TB.
Troubleshooting
• If ports or video fail, disconnect the dock from the computer and unplug the AC power adapter, then hold the power button for 30 seconds.
