Red Sound XS-FX BPM, tempo synced effects processor

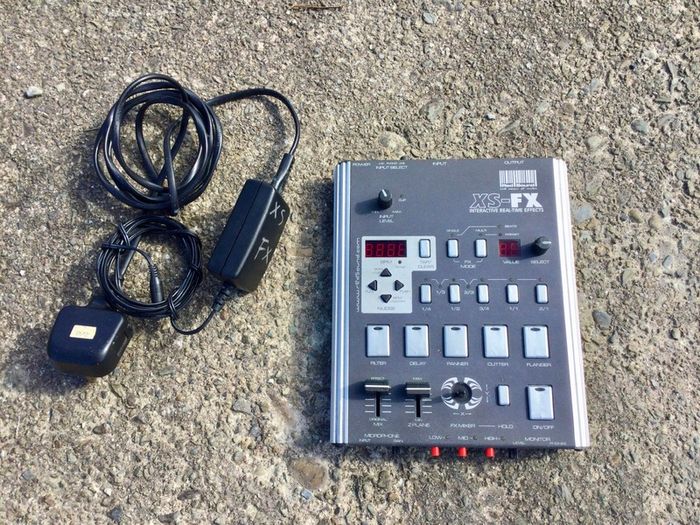

This is a fully functional XSFX RedSound Effects unit. It analyses the incoming audio to automatically detect BPM, letting you apply one or more tempo‑synced effects and tweak them live using the onboard controls. There’s also a manual tap‑tempo option. RedSound produced only a limited number of these before the company closed, so they’re not easy to find. The unit shows light cosmetic wear from normal use but operates exactly as it should. It comes with the original power supply.
Inputs include phono, mic, and line, with balanced line outputs—so it can double as a phono preamp when the effects are dialed out. Overall it’s in excellent condition.

EFFECTS:

FILTER
TYPE: Virtual analog modelled 12dB per octave, Low pass
FX MIXER JOYSTICK: Frequency [X], Resonance [Y]
Z PLANE FADER: Envelope Mod [press & hold FILTER button sets LFO shape]
LFO SHAPES: Triangle, rising, falling, pulse
DELAY
TYPE: Modelled vintage tape delay
FX MIXER JOYSTICK: Reproduction [X], Repeats [Y]
Z PLANE FADER: Level

SPS PANNER
TYPE: Multi pan of low, mid & high frequencies
FX MIXER JOYSTICK: Direction [X], SPS [Y]
Z PLANE FADER: 2-Way Split

CUTTER
TYPE: Variable Ramp Gate
FX MIXER JOYSTICK: Attack [X], Decay [Y]
Z PLANE FADER: Gate Duration

FLANGER
TYPE: Modelled Tape Flanging
FX MIXER JOYSTICK: Frequency [X], Feedback [Y]
Z PLANE FADER: Depth [press & hold FLANGER button sets LFO shape]
LFO SHAPES: Triangle, Rising, Falling, Pulse

OTHER CONTROLS
MASTER ON/OFF: Activates selected effects
MIX FADER: Sets the wet/dry output balance
HOLD [JOYSTICK]: Memorises FX setting as set by joystick in any off-centre positions
FREQUENCY SELECTORS: Low, Mid, High switches select frequency bands for FX processing
FX MODE BUTTONS: Select the main operating mode - single or multi
INPUT SELECTOR: Mic/Line/Phono switch
INPUT LEVEL [CLIP]: Input gain control with bi-colour level indicator

MONITOR LEVEL: Headphone level control
MIC TRIM: Microphone level control

TRIGGER/SPEED [SINGLE MODE]
SETTINGS: Beats [buttons/LEDs] 1/4 -1/3 - 1/2 - 2/3 - 3/4 - 1/1 - 2/1
Bars [rotary encoder/display] 1 - 2 - 3 - 4 - 6 - 8 - 12 - 16

MULTI FX PRESETS [MULTI MODE] 50 x factory presets featuring multiple effect combinations

NUDGE 4 x button keypad for BPM / Synchronisation adjustments
INPUT CONNECTIONS
MIC: 1 x ¡¦Jack socket [front panel]
LINE: 2 x ¡¦Jack socket [rear panel]
PHONO: RCA phono sockets [rear panel] + earthing terminal

OUTPUT CONNECTIONS
BALANCED: 2 x ¡¦Jack socket [rear panel]
UNBALANCED: 2 x RCA phono socket [rear panel]
MONITOR: 1 x ¡¦Jack socket [front panel]

POWER SUPPLY External (16VDC 750mA)
DIMENSIONS/WEIGHT 202[H] x174[W] x30mm[D] 1.25kg"
