Eurolite DMX Move Bigfoot controller

Eurolite DMX Move Bigfoot Foot Controller 192 Details

Control up to 12 lighting or effect fixtures simultaneously
Robust design ensures long-lasting life
Easy to carry and transport
Features 192 assignable DMX Channels
The Eurolite DMX Move Bigfoot Foot Controller provides you with a versatile control platform that can be used with up to 12 lighting or effects fixtures. The integrated FX generator ensures quick and convenient programming with a variety of movement patterns and spectacular colour mixing.

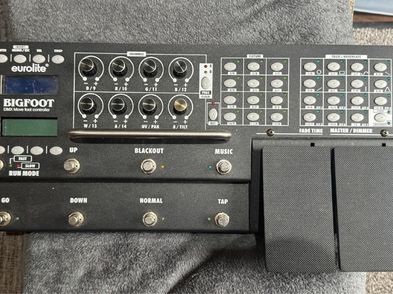

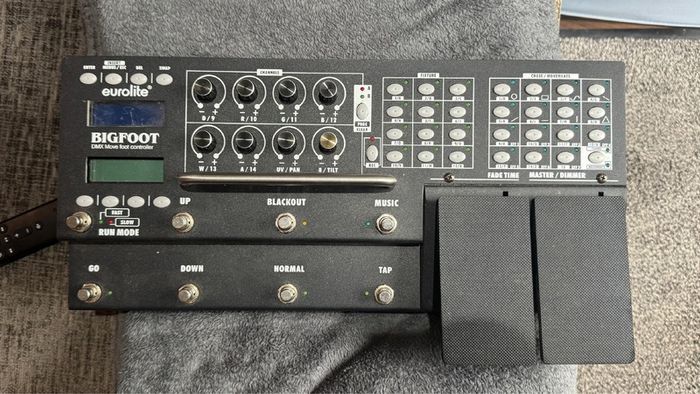

The Bigfoot can be easily used with a wide range of light fixtures thanks to its 3-pin DMX output. Equipped with 2 large pedals and 7 large buttons, the Eurolite DMX Move Bigfoot allows you to control everything from speed and movement to brightness and fading.

Full Description
Features

Fully programmable DMX foot controller for DMX light effect units
192 DMX channels can be assigned and inverted as desired to 16 control channels (softpatch)
Can control up to 12 fixtures with a maximum of 16 channels per unit
USB port for storing program data
Quick programming thanks to the integrated FX generator with movement patterns and color effects
Several effects can be used simultaneously
15 programmable chases with a total of 100 steps can be stored
Programs can be freely named
Beat control via music signal or TAP button
Convenient control of dimmer, fade time and other functions by foot
8 encoders on 2 levels for adjusting DMX values
2 x backlit LCD (2 x 16 characters each)
Sound control via built-in microphone or line input
RDM support (DMX address setup and identify)
3-pin DMX connectors
Solid metal housing with integrated handle
Specifications

Storage Media: USB (FAT32)
Audio Input: RCA
Storable Chases: 15 with 100 Steps Maximum
DMX Connector: 3-Pin
Power Supply: 100V - 240V AC, 50Hz/60Hz
Power Consumption:
Dimensions: 450mm x 240mm x 100mm (L x W x H)
Weight: 4.5kg
