Elektron Analog Drive

Total Analog Distortion
The Elektron Analog Drive features eight different analog distortion presets that allow you to implement extra crunch for your instrument. The wide sonic range of the Analog Drive comes thanks to the 100 percent analog circuit which provides that classic warmth associated with analog equipment. The distortion presets range from subtle boosts in the midrange, to in-your-face crunchy analog distortion that will power through any mix. You can also store your own user presets that you can recall instantly for live performances as well as studio use. Every setting is also fully controllable via MIDI, as well as being able to send MIDI program change messages opening up a world of possibilities.
Integrated 3-Band EQ
The built-in 3-band analog EQ gives you added versatility when it comes to crafting and controlling the unit's tone. This added control allows you to edit the eight built-in presets to your desire, giving you the ability to make subtle tweaks. The mid band is sweepable, allowing you to dial in the perfect setting for your EQ. Additionally, the mid EQ can also be controlled by an expression pedal, ideal for creating wah-like analog sounds.
Design & Construction

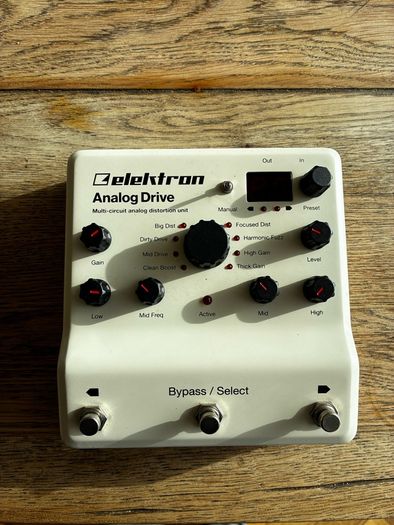

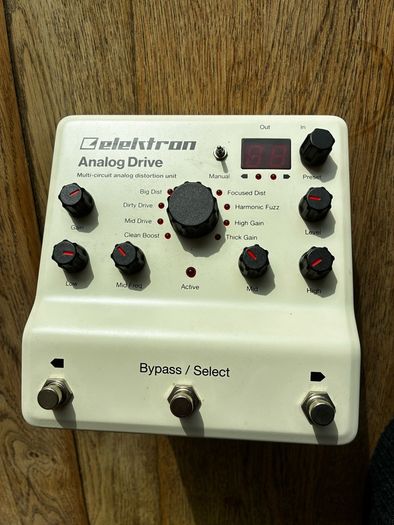

The road-worthy sturdy cast aluminium casing features a cream finish, giving the Analog Drive a sleek, vintage aesthetic. The casing also makes it perfect for live performances, easily withstanding the rigours of live use and transportation. Its dual digit seven-segment LED display provides you with visual feedback, allowing you to easily see which setting you are using at the time. MIDI In/Out connections are included for controlling the Analog Drive from your computer. The large rotary knobs make it easy to dial in the precise amount of level for each control and the stompbox style metal buttons allow you to bypass or navigate between settings.
Features

Total analog distortion
100 analog signal path
8 analog distortion circuits
3 band analog EQ with sweepable mid band
Sweepable mid band for dialing in the perfect EQ setting
Dual digit seven-segment LED display
Sturdy cast aluminium casing
Complete with power supply
All setting fully controllable via MIDI
Specifications

Expression Pedal Inputs
Input level on tip: -5 V – +5 V
Other: Supplies +5 V on ring, Accepts Expression pedals and Control Voltage
Electrical
Unit power consumption: 5 W, 400 mA typical
Compatible Elektron power supply: PSU-3b

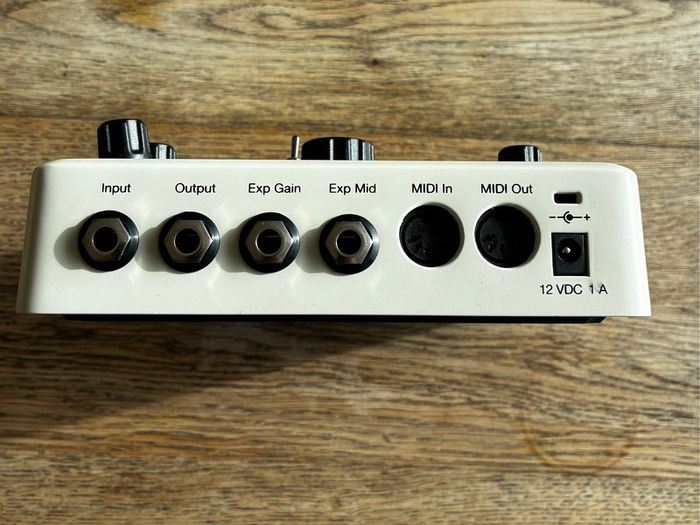

Connections
MIDI: MIDI In/Out
Audio Input:1/4’’ audio input
Audio Output: 1/4’’ audio output
Other Inputs: 2 x 1/4” Expression pedal input
Power Inlet: Center positive 5.5 x 2.5 mm barrel jack, 12 V DC, 1 A
Physical
Construction: Sturdy cast aluminium casing
Dimensions (WxDxH): 171 x 177 x 62 mm (6.8” x 7.0” x 2.5”) (including jacks, knobs and footswitches)
Weight: Approx. 1.2 kg (2.7lbs)
