Telco Xpol Mimo 3g+4gx High Gain Panel Antenna - 700-900 Mhz Sku: Xpol700-900pl

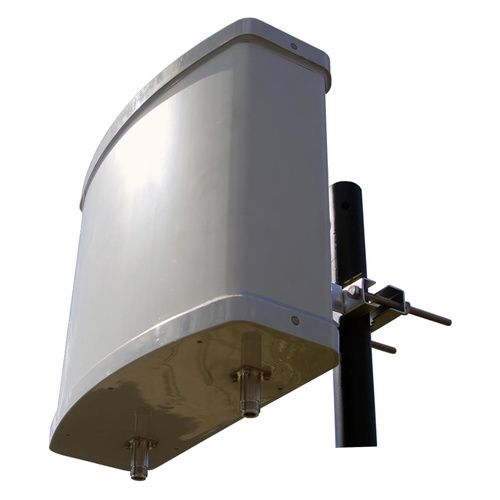

Telco XPOL 2X2 MIMO 13-16 dBi Industrial Class Panel Antenna


Key Features


Dual-polarised antenna feed with high isolation

Industrial grade weatherproof FRP radome

High gain, high F/B ratio

Two integrated N Female connectors

700 MHz 4GX with full Next-G & 3G fallback.



Usage


Our aim was to design an antenna that provides the best possible performance on the 700 MHz network while maintaining fallback onto 3G networks should there be an issue connecting to the network.



This very heavy duty panel antenna provides an incredibly high gain over the new Telstra and Optus 700 MHz 4G networks, along with full fallback onto Next-G and 3G networks (850 MHz and 900 MHz)

This antenna has been carefully designed to provide the highest practical gain on the new 700 MHz 4G networks, ideal for long range Telstra 4GX and Optus 4G+ connections, and locations where signal strengths are extremely low

The XPOL700-900 also offers best-in-class performance for 900 MHz point to point/multipoint wireless links

Offering a very low VSWR and <-140 dBc PIM, this antenna is not only ideal for tough receiver environments, but also suitable for broadcast and carrier operations while offering best-in-class performance, this antenna is large and of considerable weight

The unavoidable limitation of operating on such a low frequency is its long wavelength, and as such the antenna is quite large. Consequently this antenna strictly requires a minimum 50mm diameter mounting pole, such as a Heavy Duty Galvanised Mast.



Specifications / Frequency


Network Compatibility
Yes/No
Gain
Telstra 4GX (700 MHz)
compatible
16 dBi
Optus 4G+ (700 MHz)
compatible
16 dBi
Telstra Next-G™ (850 MHz)
compatible
14 dBi
Vodafone 4G+ (850 MHz)* *Please check Vodafone Coverage Map
compatible
14 dBi
Optus Regional 3G (900 MHz)
compatible
15 dBi
Vodafone Regional 3G (900 MHz)
compatible
15 dBi
LPWAN (915 MHz)
compatible
15 dBi


Electrical Specifications


Frequency Range: 698 to 960 MHz

Input Impedance: 50 Ω

VSWR: <1.6:1

Polarisation: ±45° (XPOL)

Vertical Beamwidth: 30° (± 15°)

Horizontal Beamwidth: 30° (± 15°)

Front to Back Ratio: >25 dB

Inter-Port Isolation: >26 dB

PIM IMD (3rd Order): <-140 dBc

Radiation: Directional

Maximum Power: 100 Watts



Mechanical/Environmental Specifications


Construction: Heavy Duty FRP Radome, Galvanised mechanical-tilt bracket

Cable: None

Input Connector: 2x N-Type Female

White Bronze Wind Rating: 198 km/hr

Temperature: -40 °C to +60 °C

Weight: 12 kg

Dimensions: 600 x 560 x 156 mm (L x W x D)

Mounting: 50 to 100 mm Ø pole



This antenna has been laboratory tested in a certified 3D Anechoic Chamber. All listed electrical specification and performance is produced from real-world test data, and not the product of computer simulation.


SKU XPOL700-900PL
Brand Telco Antennas
Shipping Weight 16.5000kg
Shipping Width 0.630m
Shipping Height 0.280m
Shipping Length 0.760m
