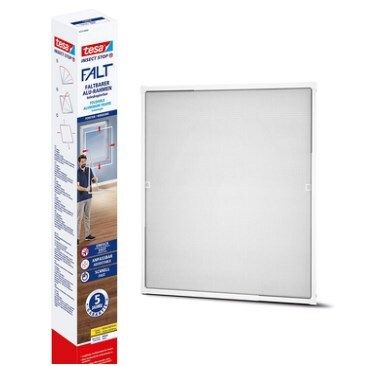

tesa Insect Stop FALT Foldable Aluminium Frame - Fly Screen with Adjustable Telescopic Frame - White - 80 cm x 80 cm to 140 cm x 140 cm

1 x available in stock (180)

Collection is available in the Kilkenny Area
or
Postage is available for €6 extra.

Can be fitted to any window from 80cm x 80 cm up to 140cm x 140cm

The tesa® foldable aluminum frame, telescopic is the easiest aluminum frame to mount. It adjusts to most windows' dimensions, providing longlasting protection against insects.

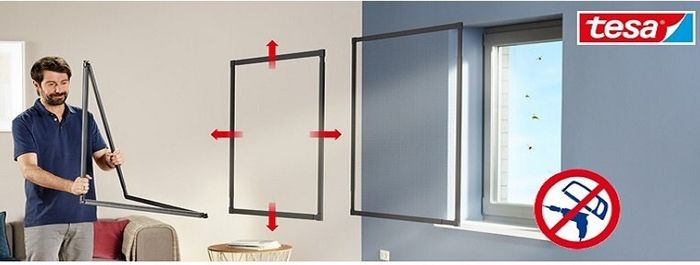

It takes three easy steps to install the high-quality and innovative tesa® Insect Stop foldable aluminum frame telescopic without any sawing: unfold the frame, pull apart the frame, determine the size, clamp the fabric, hang it in the window without drilling - ready!

The Clear View Ultra mesh allows improved ventilation thanks to it's especially thin fibres.

Fast: the unique and patented tesa folding mechanism saves time during assembly

Simple: fly screen construction for mounting without tools

Flexible: adjustable for window dimensions from 80cm x 80cm to 140cm x 140cm

Success guarantee due to pre-assembled aluminum frame

Safe protection from flying insect with perfect visibility and better ventilation through Clear View Ultra net, featuring especially thin fibres

4 Easy Steps to Fit...

Step 1 - Unfold the frame

Take the folding frame out of the packaging. Then unfold it on a flat surface.


Step 2 - Slide and fix telescopic profiles to size

Insert the appropriate holding brackets. Then pull the folding frame apart to the appropriate size in the window. Then clip the stopper clips on to a surface for fixing.


Step 3 - Attach the net

Pull the brush seals into the side of the folding frame profiles and cut off appropriately. Now fix the net with the pre-cut terminal blocks.


Step 4 - Ready to hang

Now the folding frame is ready to hang! Simply hang in the window and insert the safety clip at the top. And you're done!


Requirement for assembly:

Preparation:

Please check the suitability of mounting on your window frame before installing the insect screen window.

x = light width: 760 - 1380 mm

y = light height: 755 - 1375 mm

(The light width/height indicates the size of the window opening when the window casement is opened.)

w = required contact surface on the window frame all around: min. 15 mm

Z = window frame thickness: 7 - 27 mm

Space required between window frame and shutters: min. 16 mm

Stemmed guard or weather leg may prevent installation.

No offers under the asking price
