Solar PV Inverter & Optimisers

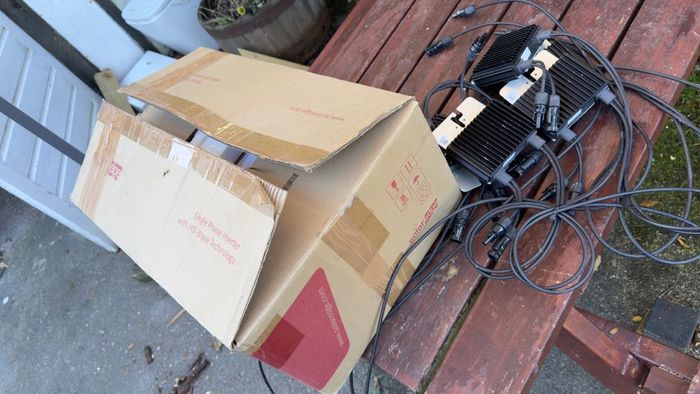

Legendary SolarEdge SE3000 with 6 optimisers
Here’s a short description of the SolarEdge SE3000 PV inverter:
Single-phase, grid-tied inverter, ~3.0 kW AC output


Works with SolarEdge power optimisers; module-level monitoring built in

SolarEdge is a global leader in smart energy technology: focusing on innovation and environmental protection. For over a decade, SolarEdge has aimed to revolutionise inverters by changing the way power is harvested and managed in photovoltaic (PV) systems.

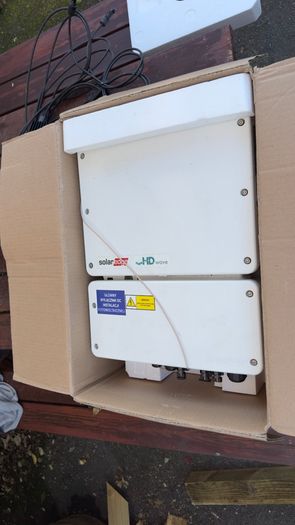

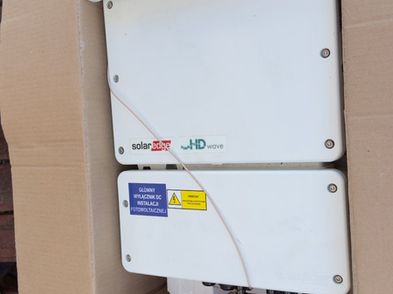

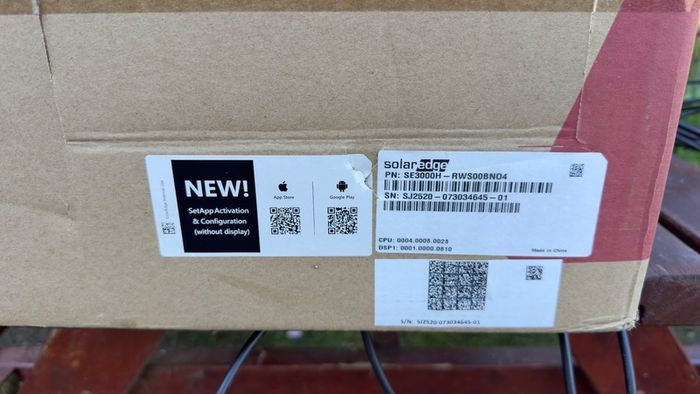

The SolarEdge SE3000H-RW000BEN4 is a 3.0kW, single phase Home Wave Inverter, which is network ready. Inverters in the Home Wave range are specifically designed to work with SolarEdge Power Optimisers and allow quick and simple commissioning via a smartphone app.

The inverter can be easily connected to other system devices – such as the SolarEdge Home Battery – with wireless connectivity. Exceptionally compact and lightweight, installation of this inverter is convenient and user-friendly. It also comes with the added benefit of built-in module-level monitoring.

PRODUCT FEATURES

Specifically designed to work with SolarEdge Power Optimisers
Industry leading efficiency with 200% DC oversizing
Effortless inverter commissioning directly from a smartphone using the SolarEdge SetApp
Seamless wireless connectivity with system devices such as the SolarEdge Home Battery, via the optional SolarEdge Home Network platform
Exceptionally compact, lightweight, and easy-to-install design
Built-in module-level monitoring for enhanced performance oversight
Suitable for both outdoor and indoor installation
Designed as a fixed voltage inverter to accommodate longer strings
Incorporates advanced safety features including integrated arc fault protection
TECHNICAL SPECIFICATION

Rated power: 3000W
AC output voltage range: 184 - 264.5 Vac
Maximum continuous output current: 14A
Maximum DC power: 6000W
Maximum input voltage: 480Vdc
Maximum input current: 9 Adc
Maximum efficiency: 99.2%

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

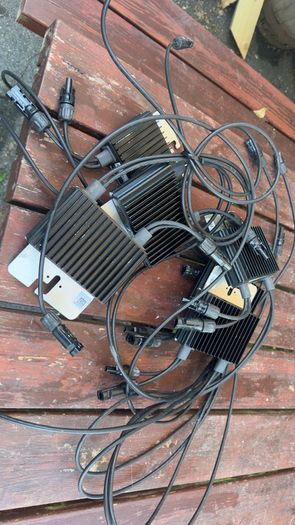

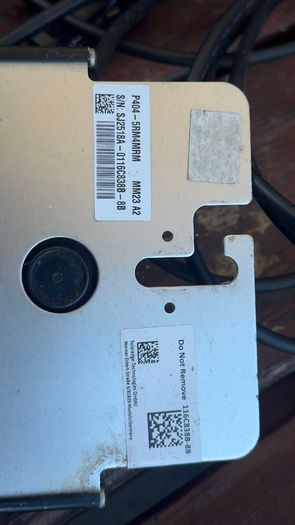

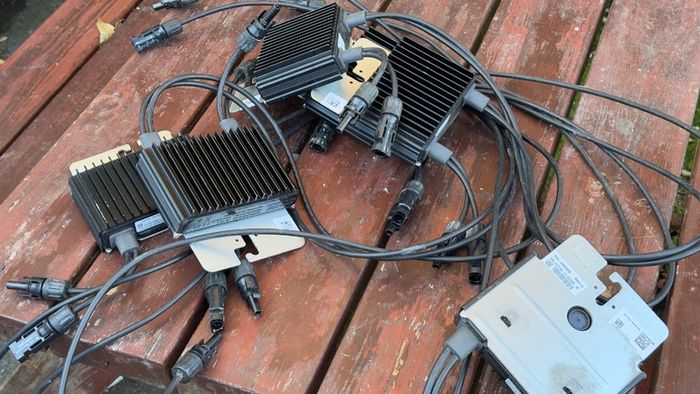

P404 Power Optimisers are ideal for small arrays with a miniumum string length of six panels. They are suitable for 60 and 72 cell modules. With output up to 405W, provided Voc is below 80V. Optimisers allow for uneven strings, longer strings, mix of panel types and orientations on the same string as well as reducing the impact of partial shading on the array.
If you need help pairing panels and optimisers just let us know.

Specifications:
Max input Voc: 80V
Minimum number of optimisers: 6
Maximum number of optimisers: 25
25 Year warranty
SafeDC protection
Module-level monitoring
Weight 994g
