Product Description >>>

Water flow switch working principle: When the flow rate exceeds the set value, the fluid pushes the blade and drives the upper micro switch through the mechanical device in the water flow switch. Single Pole Double Throw (SPDT) switch contact allows for loop conduction. By cutting another cycle.

Application: This product is used to measure the dynamics of liquids flowing through pipelines such as water, ethylene, glycol and other non-corrosive liquids.

Suitable for: Mainly for water treatment systems, central air conditioning, water cooling equipment, fire protection systems, etc.

Location of use: Water flow switches are typically used in locations where interlock or disconnect protection is required.

ADJUSTABLE - Adjust the number of blades and blade length to accommodate different tube diameters and flows.

Control Type: Paddle Type (Target Type)
Maximum working pressure: 1.0MPa
Ambient temperature: 10℃-140℃
Liquid temperature: 60℃-100℃ (fluid under non-icing condition)

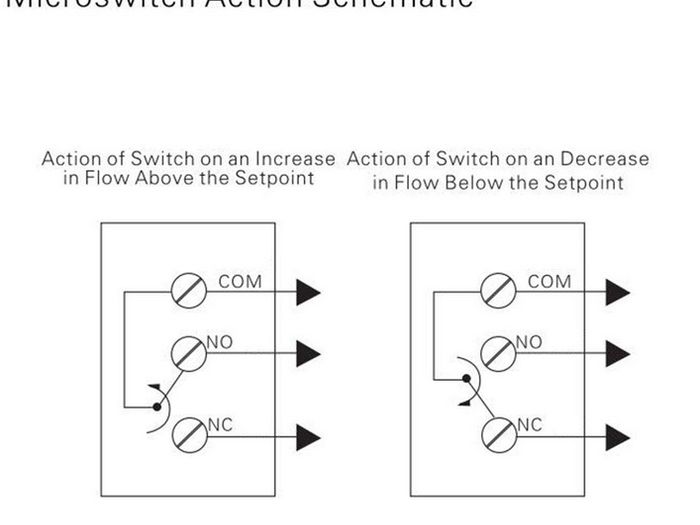

Micro Switch: Single Pole Double Throw (SPDT)
Contact life: 100,000 times
Micro switch electrical parameters: 220VAC, 15A

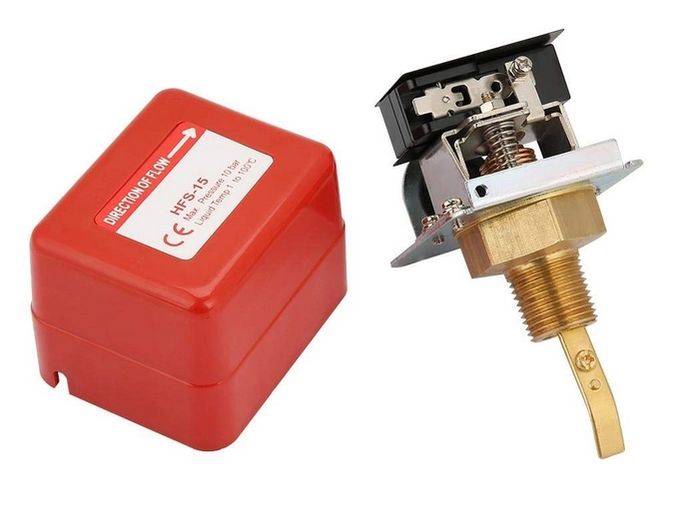

Material: The joint is brass, the shell is iron plated nickel, the blade is stainless steel, and the outer shell is plastic.
