5.6kW 5600W Off-grid or on-grid Solar Inverter charger DC 48V to AC 230V MPPT ATS Backup

5.6kW 5600W Off-grid or on-grid Solar Inverter charger DC 48V to AC 230V MPPT ATS Backup 5.6kW 5600W Off-grid or on-grid Solar Inverter charger DC 48V to AC 230V MPPT ATS Backup Other Home & Garden
Condition:
Brand new

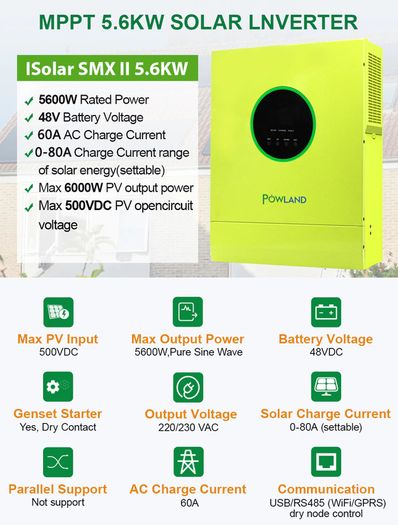

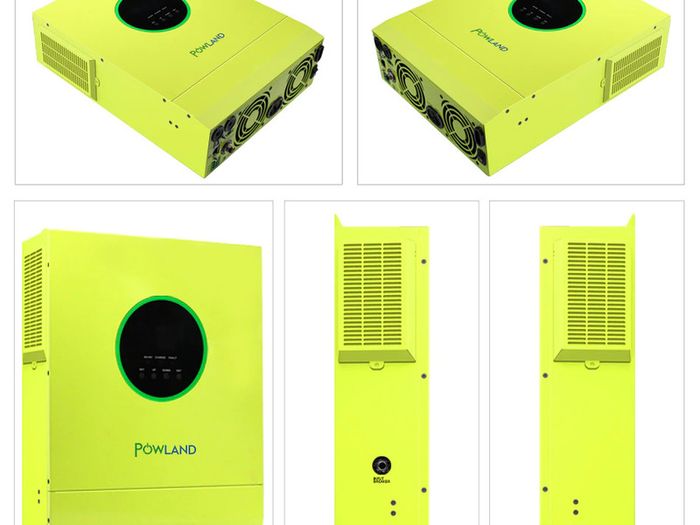

Pure sine wave 5.6kW 5600W Off-grid or on-grid backup Solar Inverter DC 48V to AC 230V MPPT ATS


Can run many appliances simultaneously not exceeding 5600W total power.

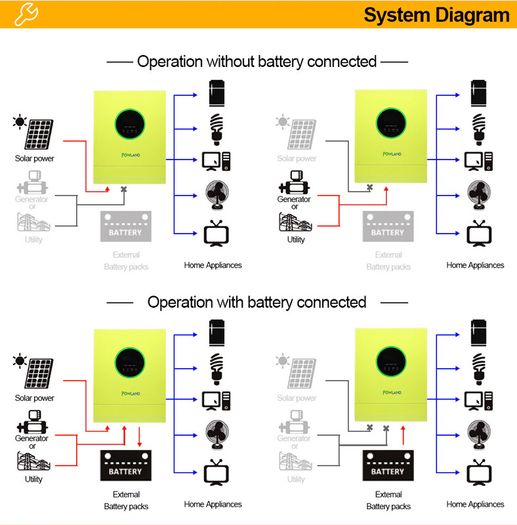

Can be used to run appliances from 48V battery bank when ESB electricity is not available,

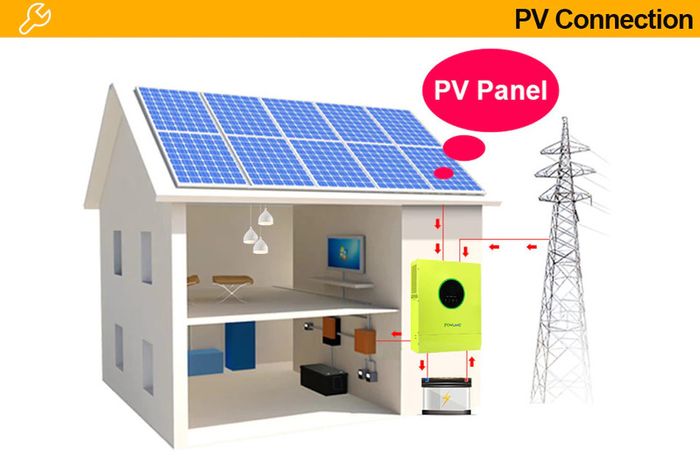

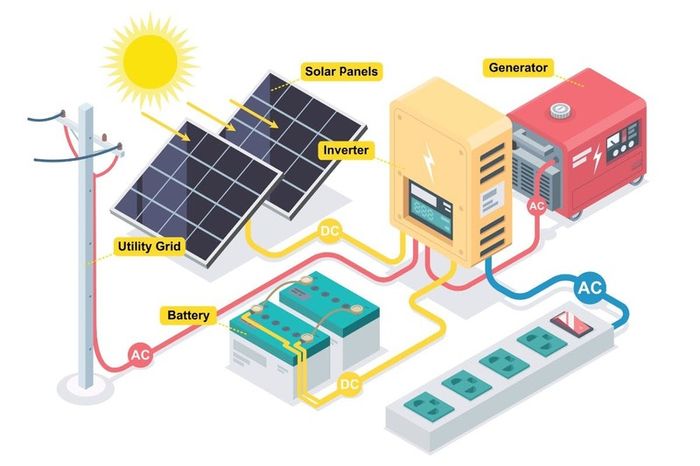

and batteries can be recharged by ESB, Solar Panels or generator.



AC mode
Rated input voltage 220/230Vac
Input voltage range (170Vac~280Vac) ±2% (90Vac-280Vac)±2%
Frequency 50Hz/ 60Hz (Auto detection)
Frequency Range 47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz);
Overload/short circuit protection: Circuit breaker
Efficiency >95%
Conversion time (bypass and inverter) 10ms (typical)
AC reverse protection Available
Maximum bypass overload current 40A
Inverter mode
Output voltage waveform Pure sine wave
Rated output power (VA) 5600VA
Rated output power (W) 5600W
Power factor 1
Rated output voltage (Vac) 230Vac(200/208/220/240Vac settable)
Output voltage error ±5%
Output frequency range (Hz) 50Hz ± 0.3Hz/60Hz ± 0.3Hz
Efficiency >90%
Peak power 10000VA
Output short circuit protection: Circuit breaker
Bypass breaker specifications 40A
Rated battery input voltage 48V (minimum start voltage 44V)
Battery voltage range 20.0Vdc~33Vdc ± 0.6Vdc (Undervoltage alarm/shutdown voltage overvoltage alarm /overvoltage recovery... settable on LCD screen)
Power saving mode Load ≤50W
AC charging
Battery type Lead acid or lithium battery
Maximum charge current 60A
Charge voltage range 40~60Vdc
Short circuit protection Circuit breaker and blown fuse
Circuit breaker specifications 40A
Overcharge protection: Alarm and turn off charging after 1 minute
PV charging
Maximum PV open circuit voltage 500Vdc
PV operating voltage range 120-500Vdc
MPPT voltage range 120-450Vdc
Battery voltage range 40-60Vdc
Maximum intput power 6000W
PV charging current range (can be set) 0-80A
Charging short circuit protection: fuse
Certification: CE(IEC 62109-1)
EMC certification level: EN61000, C2
Operating temperature range -15°C to 55°C
Storage temperature range -25°C ~ 60°C
Humidity range 5% to 95%
Noise ≤60dB
Heat dissipation: Forced air cooling, variable speed of fan

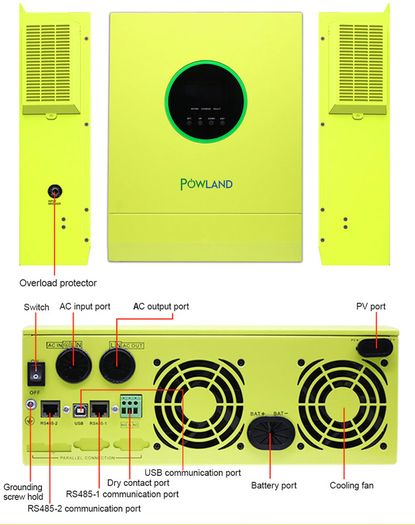

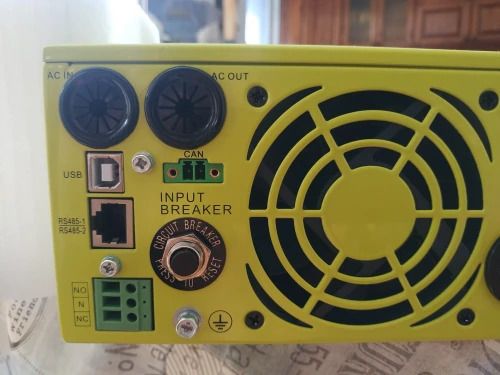

Communication interface: USB/CAN/RS485(WiFi/GPRS)/Dry node control
Size (L*W*D) 426mm*322mm*126mm
Weight (kg) 10.9
