10A 20A 30A 40A 50A 60A 12V/24V Solar Panel Charger Controller Battery Regulator Charge USB LCD

10A €14
20A €17
30A €19
40A €22
50A €24
60A €27

100% Positive feedback, Buy with confidence from an trusted experienced seller

All item are new and not open to offers. Will do a deal if buying multiple items but this item is priced to sell and will not be discounted further

Can post same working day if paying via PayPal


Rated Voltage: 12V 24V Auto
Application: Solar System Controller
AUTO DETECT – AGM, GEL, OPEN
Current: 10A/20A/30A
With Timer and light sensor,it could work for solar light system.
Only For off-Grid PV Solar System.

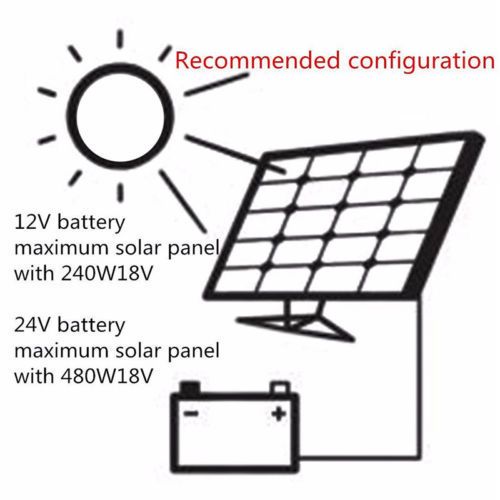

For 12V Pv System: 120W Solar Panel,12V Lead-acid Battery,21V for Max input Voltage
For 24V Pv System: 240W Solar Panel,24V Lead-acid Battery,42V for Max input Voltage
Current Types：10A, 20A, 30A.
SAFETY INSTRUCTIONS:

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN,AGM, GEL
it is not suited for nickel metal hydride, lithium ions or other batteries.
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
FEATURES:

1.Build-in industrial micro controller.
2.One-key setting,digital display,auto memory function.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
SYSTEM CONNECTION:

There could be some slight differences in the color tone of the pictures and the actual item.
1.Connect the battery to the charge regulator – plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator – plus and minus.
3. Connect the consumer to the charge regulator – plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!

No offers under the asking price
