Modular Office and Gymnastic room

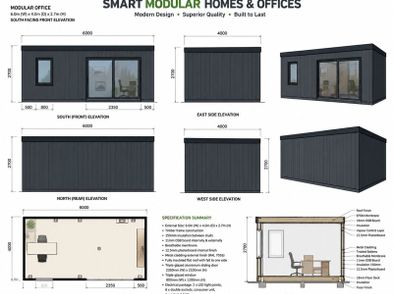

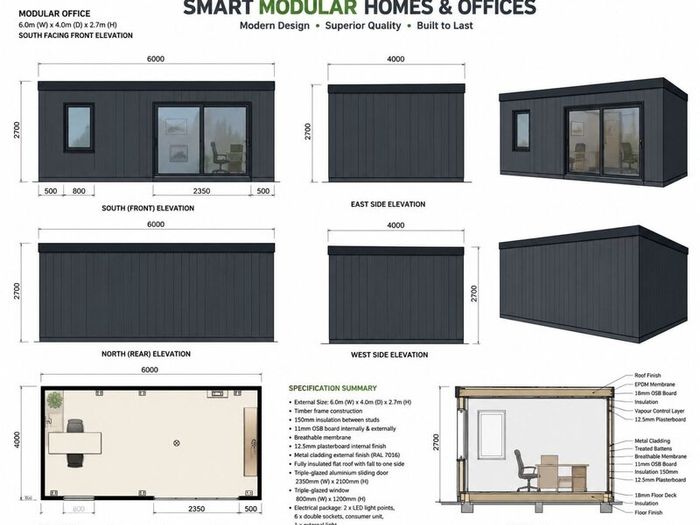

Modular Office Gym Specification
Construction
High-performance timber frame construction
150mm insulation between structural studs
11mm OSB board internally and externally for exceptional strength and improved sound insulation
Breathable membrane
12.5mm plasterboard internally, ready for painting
External vertical metal cladding fixed to treated timber battens
Overall wall thickness approximately +240mm

Our standard wall construction is designed to achieve an approximate U-Value of 0.18 W/m²K, providing excellent thermal performance and helping to reduce heating costs.

The roof is a fully insulated modern flat roof with a concealed fall to one side for rainwater drainage.

Internal Finish
Walls plasterboard finished and painted white

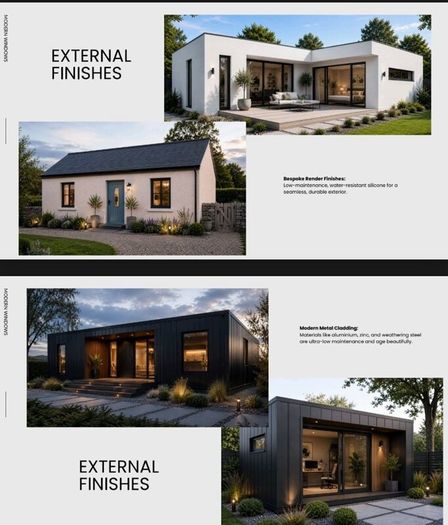

External Finish
Contemporary vertical steel cladding
Color: RAL 7016 Anthracite Grey
Low-maintenance and highly durable
*Optional Upgrades*
Acrylic rendered front elevation + €1,000 + VAT 13.5%
Timber cladding feature wall
Air-conditioning / Heat Pump
Additional windows and sockets
Alternative colours


We install HST PVC sliding door
Size: 2350mm x 2100mm

One triple-glazed PVC Tilt & Turn window
Size: 800mm x 1200mm

All window profiles will be finished in RAL 7016 Anthracite Grey externally and White internally.
Electrical Installation
Included as standard:

2 LED ceiling light points
6 double sockets
Consumer unit (fuse board)
1 external light fitting

What is excluded;
Foundations (concrete slab or screw pile system)
Electrical connection from the existing building
Planning permission or statutory fees (if applicable)

Foundations can be completed either by your contractor or supplied separately by agreement.
We can make any specification Modular office, gym or house.
Garden rooms, Home offices, Studios, Rental/holiday accommodation and Additional living space for family member.
