Pull-Out Appliance Shelf Hafele Brand

Pull-Out Appliance Shelf Hafele Brand

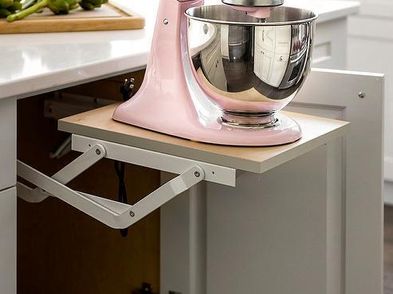

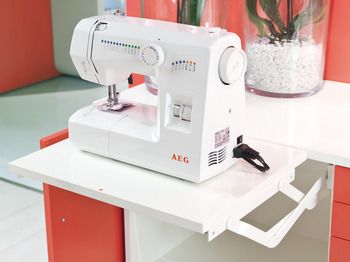

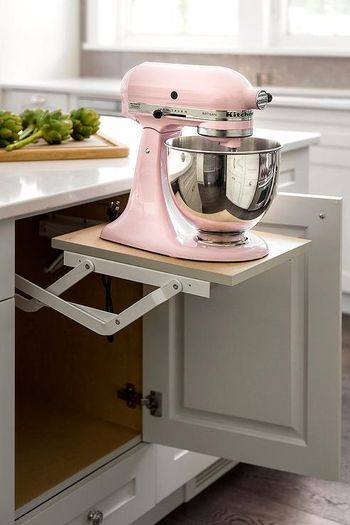

Heavy-duty pull-out and lift-up appliance shelf, ideal for storing and accessing food mixers, sewing machines, and other countertop appliances while keeping worktops clutter-free.
Key Features
• Cranked screw-on mounting plates compensate for door offset and prevent hinge interference.
• Shelf locks automatically when fully extended.
• Simple release mechanism—lift the shelf to return it to the cabinet.
• In the fully extended position, the shelf sits flush with the worktop for convenient use.
• Independent support arms allow flexible installation widths.

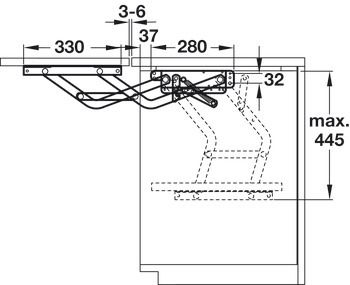

Specifications
• Load Capacity: 8 kg
• Effective Height: 280 mm
• Installation Height: 445 mm
• Swivel Depth: 425 mm
• Suitable Cabinet Widths: 350–600 mm
• Minimum Internal Cabinet Width: 300 mm
• Minimum Remaining Cabinet Height: 340 mm (when mounted directly below worktop)

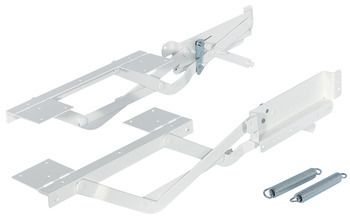

Construction
• Steel construction
• White lacquered finish (RAL 9010)
• Galvanized 150N tension springs
Installation
• Screw-fixed to cabinet side panels
• Adjustable installation width from 300–568 mm
Perfect for maximizing storage space while providing easy access to frequently used kitchen and household appliances.
